Flexible LED Strip Green (5m) (3614_0)
Flexible LED Strip Green (5m) (3614_0)
SKU:3614_0
Couldn't load pickup availability

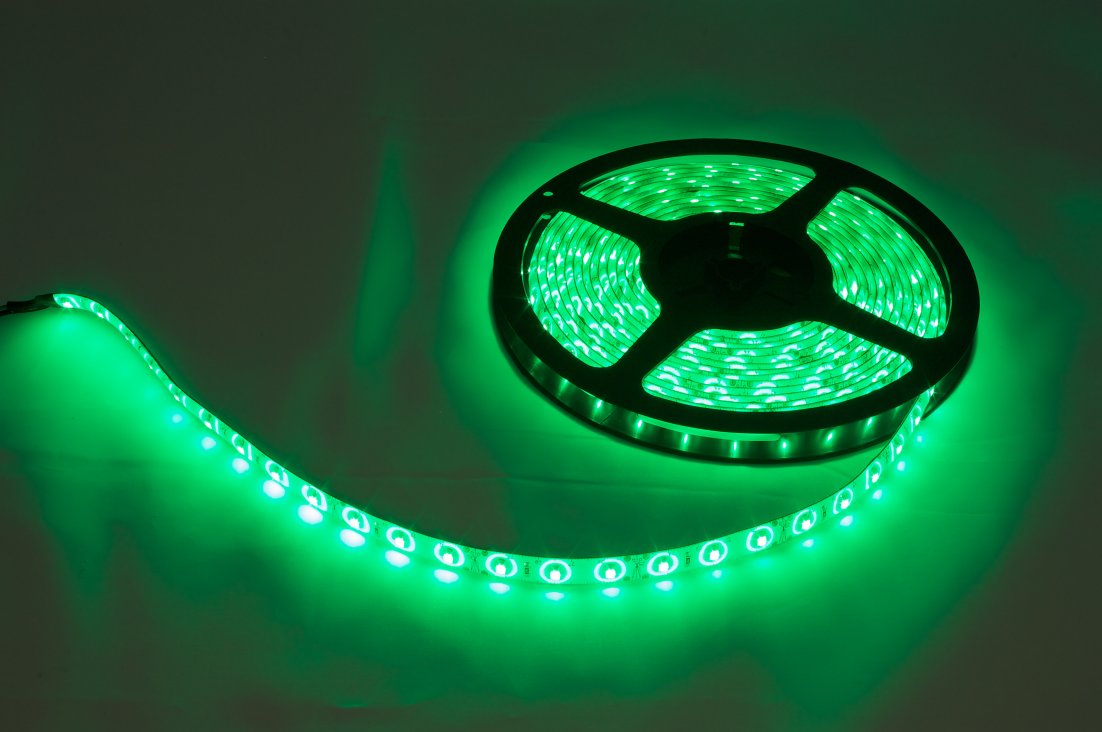

The Flexible LED Strip Green (5m) (3614_0) is a versatile 5-meter long, 8 mm wide ribbon containing 300 high-efficiency LEDs with a wide 120° light beam angle. Built with integrated adhesive backing, the strip easily mounts to flat or curved surfaces and can be custom-trimmed in multiples of 3-LED segments for precise length fitting in custom enclosures, panel lighting, or architectural accents.
Operating between 9V and 12V DC, this low-voltage LED strip draws 1.5A at full 12V power (or 361mA at 9V DC), delivering vivid green illumination ideal for decorative lighting, status signaling, and automation displays. It seamlessly pairs with solid-state relay modules (such as the Phidget REL1100_0) for dynamic dimming and PWM control.
Features:
- 5-meter long flexible strip with 8 mm standard width
- Contains 300 high-intensity green LEDs
- Wide 120° light beam distribution angle
- Integrated adhesive backing for quick installation
- Trimmable design allows cutting at designated 3-LED segment intervals
- Wide operating voltage range: 9V to 12V DC (1.5A at 12V, 361mA at 9V)
- Ideal for decorative, ambient, panel status, and custom automation illumination
Caution: Exceeding 12V DC operating voltage can permanently damage the LEDs.
Flexible LED Strip Green (3614_0) Technical Specifications
- Part Number: 3614_0
- Emitted Color: Green
- Strip Length: 5 meters (~16.4 ft)
- Strip Width: 8 mm
- Total LED Count: 300 LEDs
- Beam Angle: 120°
- Operating Voltage: 9V – 12V DC
- Current Consumption: 1.5A @ 12V DC / 361mA @ 9V DC
- Cut Length: Multiple intervals of 3-LED segments
- Mounting Method: Integrated adhesive backing
The package includes:
- 1 x Flexible LED Strip Green (5m Reel) (3614_0)
Hardware interface compatible with low-voltage DC power switching controllers and Phidget solid-state drivers:
- Dimming & Control: PWM-compatible when driven by Phidget REL1100_0 or low-side DC switching modules
- System Compatibility: Controlled via Phidget22 API through supported output interfaces
Download technical specifications and hookup guides:
Download Phidget 3614_0 Technical Datasheet
