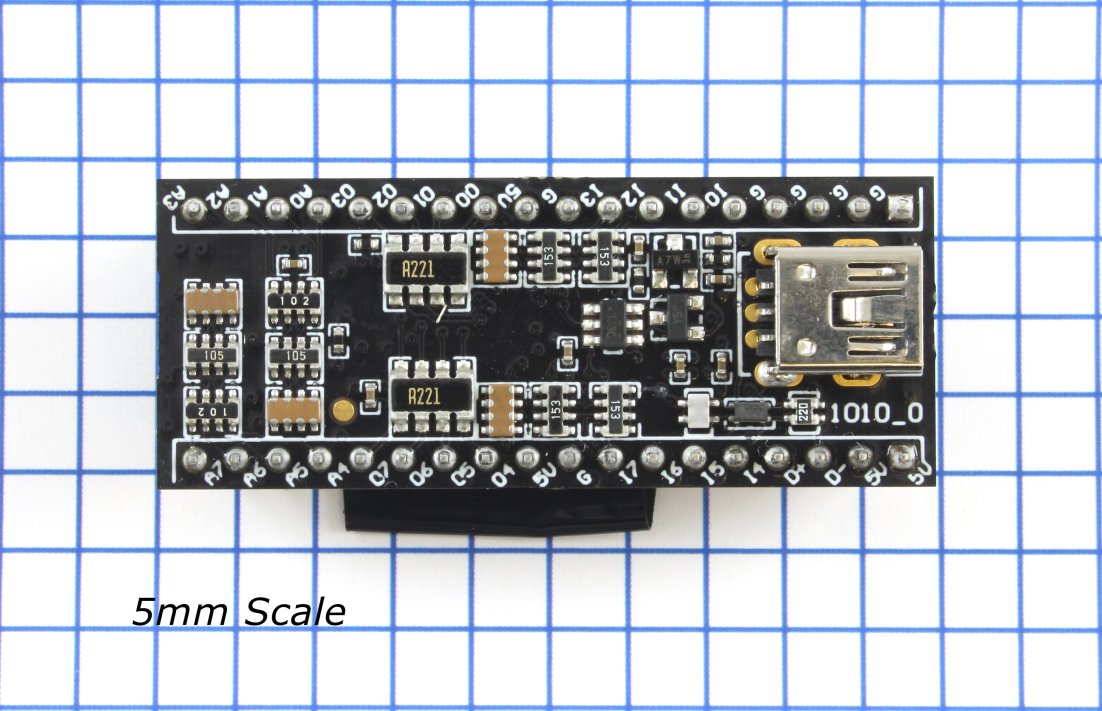

PhidgetInterfaceKit 8/8/8 Mini-Format (1010_0)
PhidgetInterfaceKit 8/8/8 Mini-Format (1010_0)
SKU:1010_0
Couldn't load pickup availability
The PhidgetInterfaceKit 8/8/8 Mini-Format (1010_0) delivers full I/O functionality in a compact DIP-36 package designed for OEMs, custom electronics designers, and system integrators.
By plugging directly into your custom PCB, the 1010_0 eliminates intermediate point-to-point wiring between boards, significantly improving system reliability, reducing manufacturing complexity, and saving critical enclosure space. It enables seamless integration of 8 analog inputs, 8 digital inputs, and 8 digital outputs directly onto your custom circuit design.
Features:
- 8 Analog Inputs for 0-5V sensors, sampling at up to 1000 samples per second
- 8 Digital Inputs for monitoring 0-5V digital signals and switch states
- 8 Digital Outputs for controlling LEDs, solid-state relays, and logic-level devices

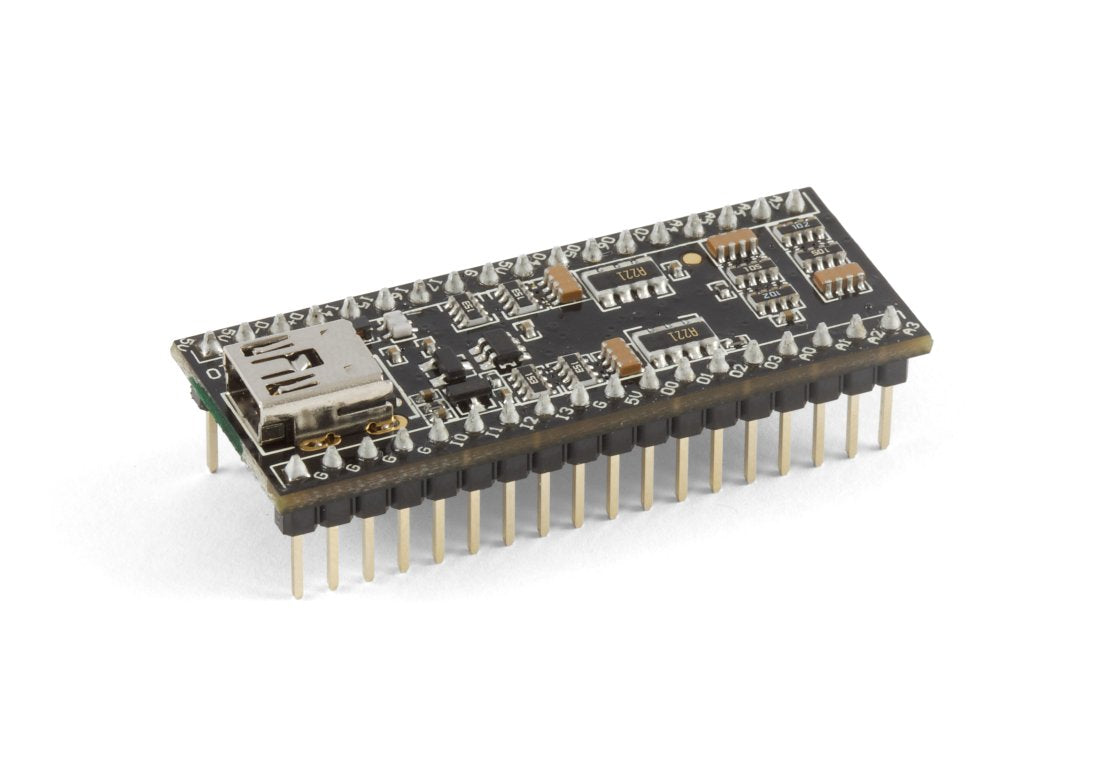

- Compact DIP-36 form factor for direct PCB mounting and custom board integration
- Eliminates board-to-board harness wiring for cleaner, more reliable system builds
PhidgetInterfaceKit 8/8/8 Mini-Format Technical Specifications
- Analog Inputs: 8 Channels (0–5V DC, up to 1000 samples/sec)
- Digital Inputs: 8 Channels (0–5V DC logic level)
- Digital Outputs: 8 Channels (Logic level output)

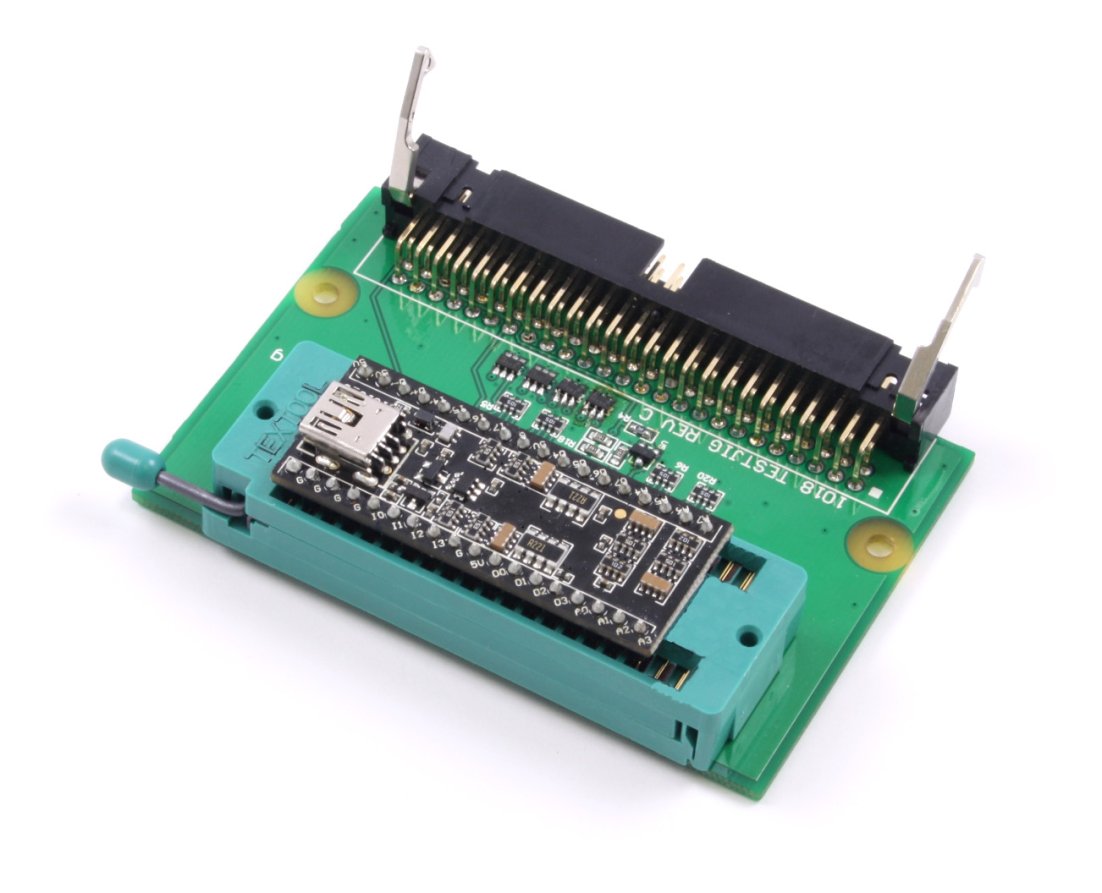

- Form Factor: DIP-36 Module for PCB socketing or direct soldering
- Host Connection: USB via circuit pins
- Target Audience: OEMs, hardware engineers, circuit designers, and system integrators
The package includes:
- 1 x PhidgetInterfaceKit 8/8/8 Mini-Format (1010_0) DIP-36 Board
Fully compatible with the standard Phidget22 cross-platform API and driver architecture:
- OS Support: Windows, macOS, Linux
- Languages & Frameworks: C/C++, C#, Python, Java, MATLAB, LabVIEW, Swift, Node.js, and more
Download technical documentation and integration resources:

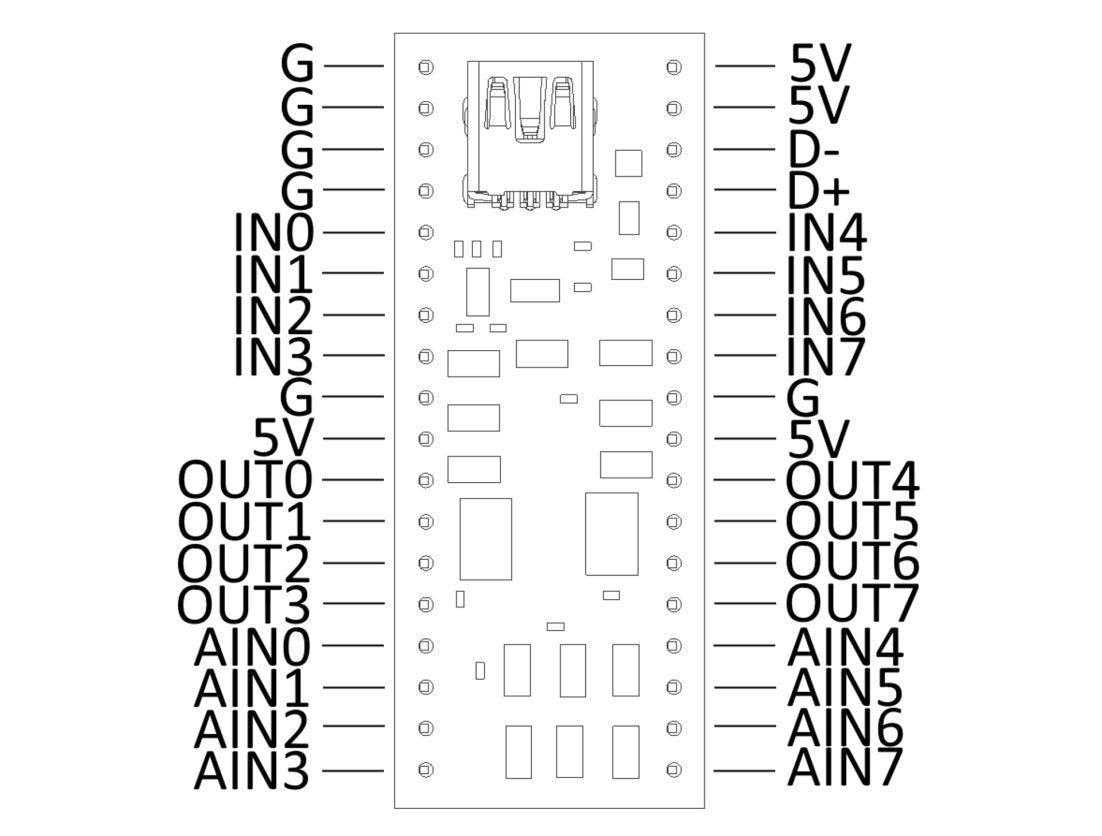

Download PhidgetInterfaceKit 8/8/8 Mini-Format Datasheet & Pinout Diagram
- Warranty: 12-Month Factory Warranty
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
