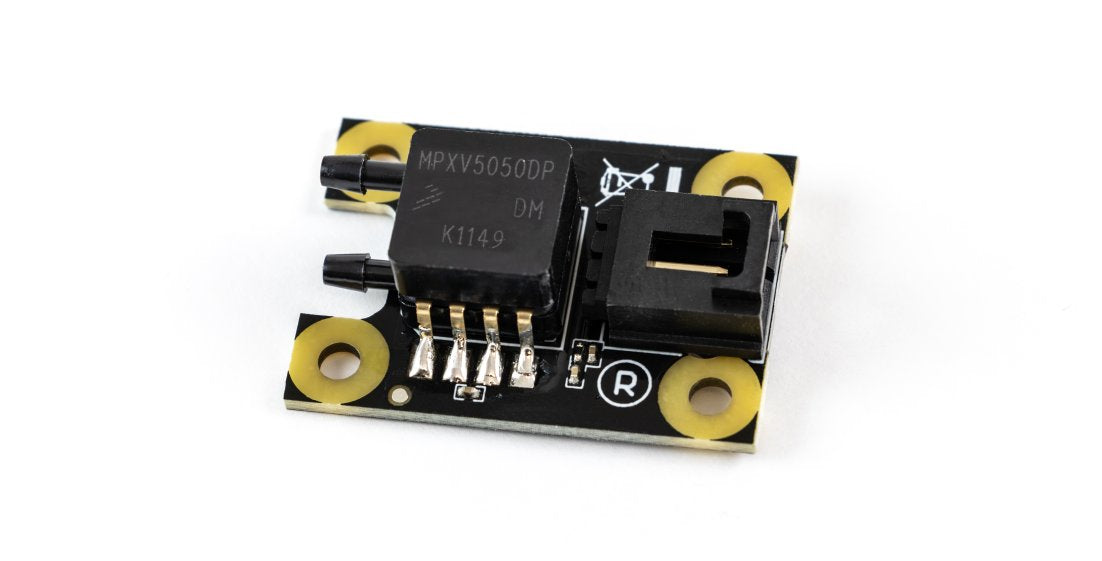

Differential Air Pressure Sensor 50 kPa (1138_0)

The Differential Air Pressure Sensor 50 kPa (1138_0) is a dual-ported air pressure sensor engineered to measure the precise pressure differential between its two ports across a range from 0 kPa to 50 kPa.

Designed specifically for clean, non-condensing air measurement, this sensor connects seamlessly into any Phidgets VINT Hub port or standard Analog Input. Note that exposure to moisture (such as human breath), dusty air, or corrosive gases should be avoided to prevent damage to the internal sensing elements.

Features:

• Measures the differential pressure between two air ports from 0 to 50 kPa
• High measurement resolution of 56 Pascals

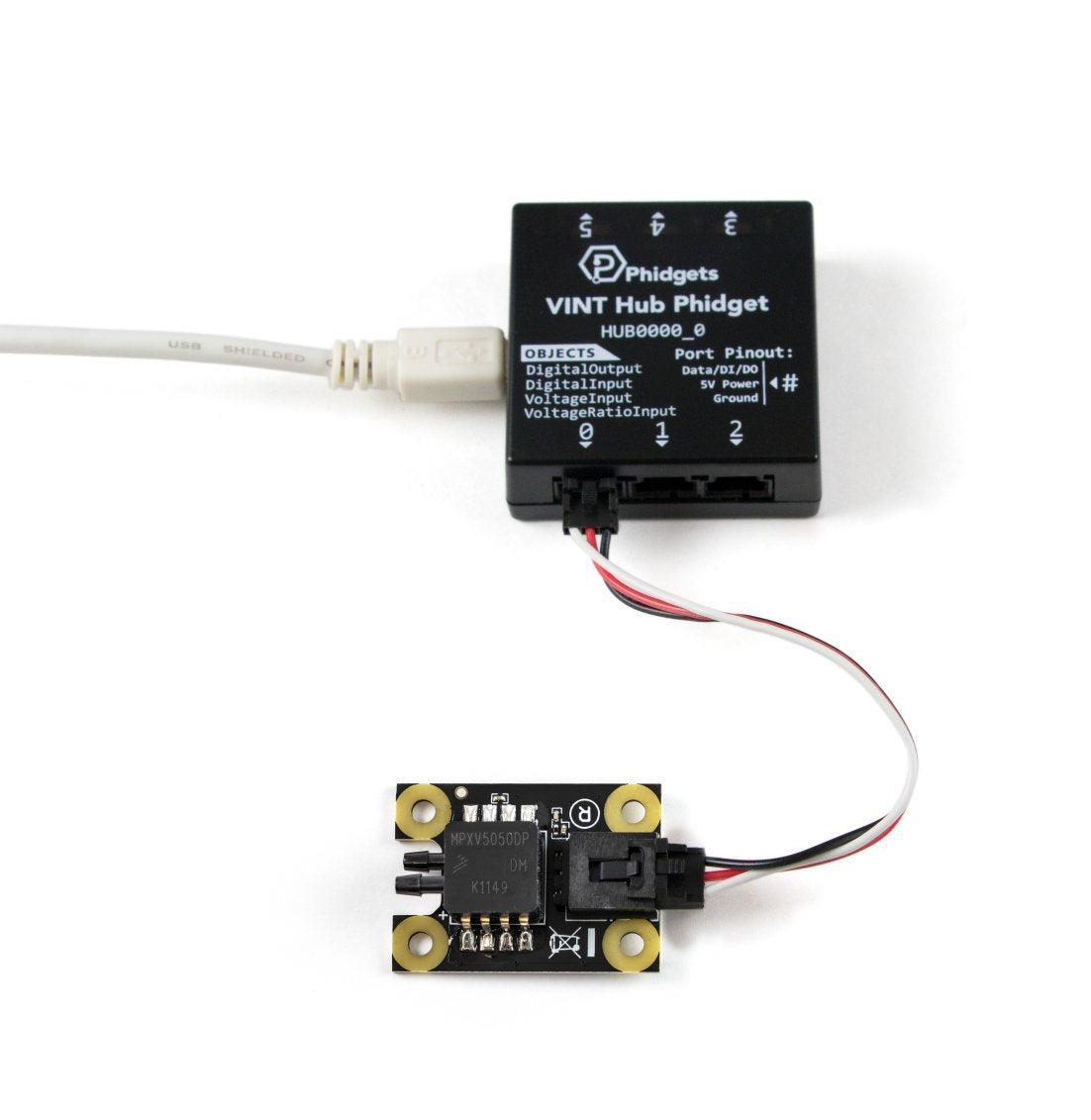

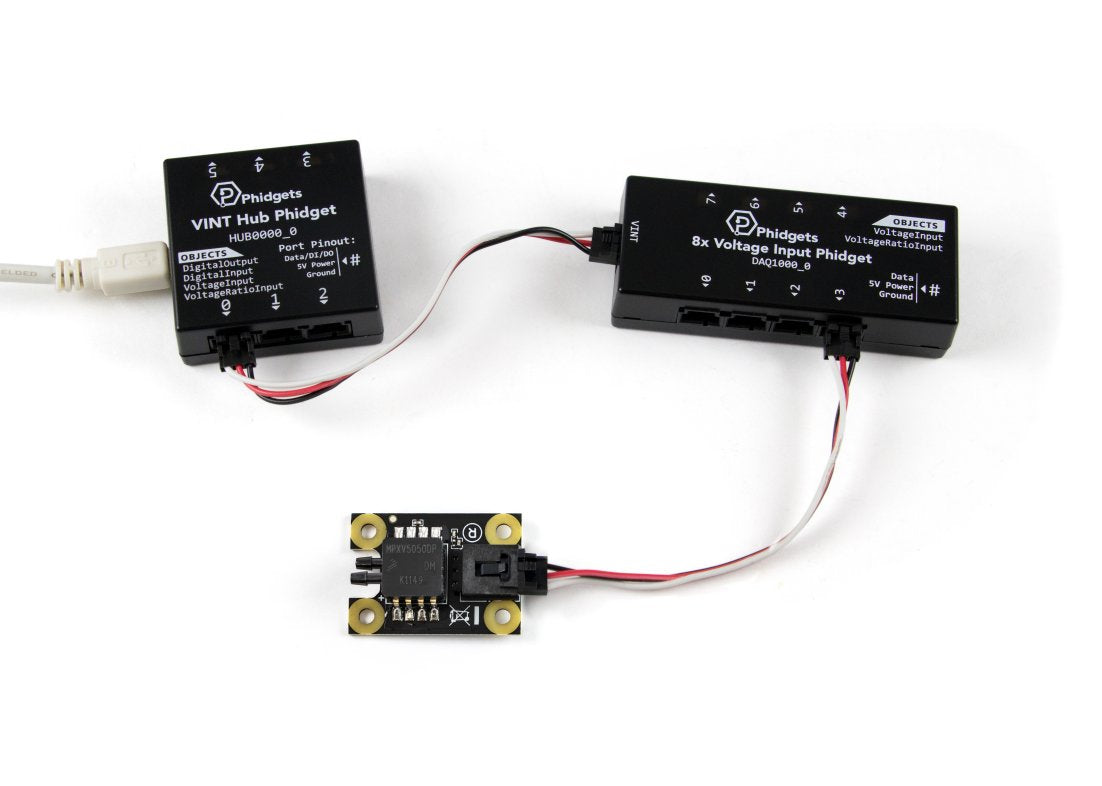

• Connects directly to a Phidgets VINT Hub port or Analog Input channel
• Compact dual-port design for easy pneumatic tubing connection
• Ideal for clean, non-condensing air monitoring applications

Differential Air Pressure Sensor Technical Specifications

• Measurement Range: 0 kPa to 50 kPa
• Sensor Resolution: 56 Pa
• Target Media: Clean, dry, non-condensing air
• Ports: Dual pneumatic hose connectors
• Interface Type: Analog Input / VINT Hub compatible
• Sensor Type: Differential Air Pressure

The package includes:

• 1 x Differential Air Pressure Sensor 50 kPa (1138_0)

Fully supported by the Phidget22 software library and APIs when connected to a VINT Hub or InterfaceKit:

• OS Support: Windows, macOS, Linux
• Languages & Frameworks: C/C++, C#, Python, Java, MATLAB, LabVIEW, Swift, Node.js, and more

Download technical documentation and details:

Download 1138_0 Differential Pressure Sensor User Guide & Datasheet

• Warranty: 12-Month Factory Warranty
• Delivery time: up to 10 business days
• Professional customer service, fast delivery, attractive pricing
• Genuine Phidgets product
