PhidgetSpatial Precision 3/3/3

PhidgetSpatial Precision 3/3/3

MOT0110_0

649.00 ₪
649.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

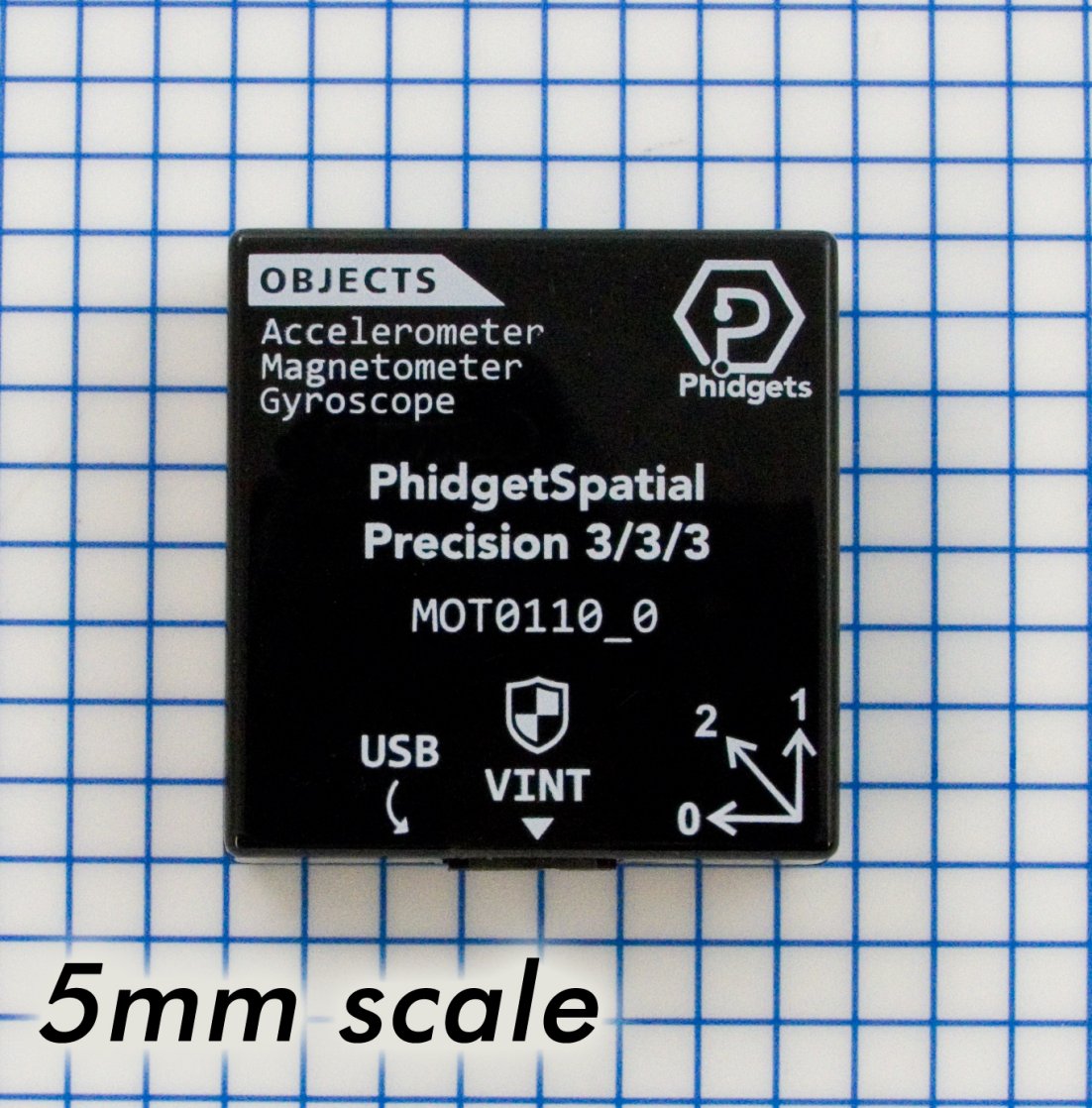

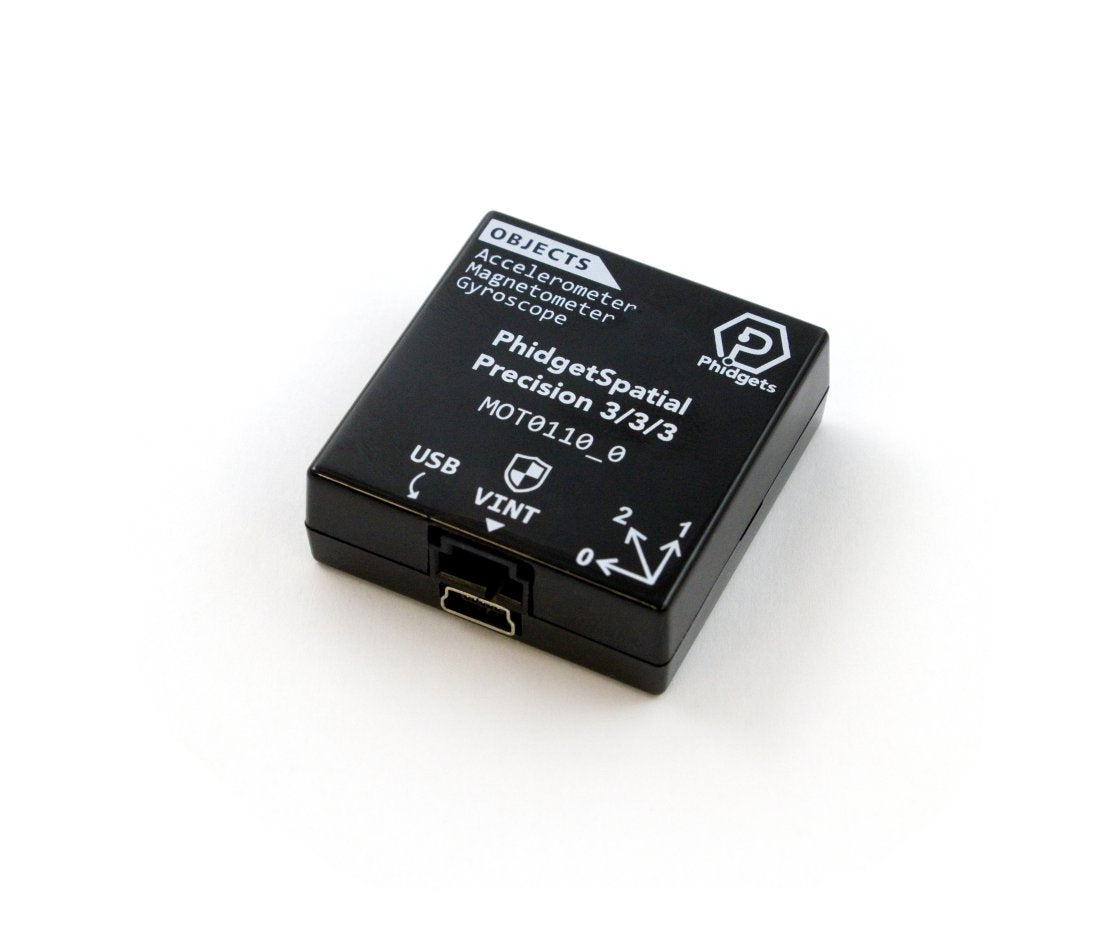

PhidgetSpatial Precision 3/3/3

The PhidgetSpatial Precision 3/3/3 combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer into a single high-performance motion sensing device.

You can use the Spatial channel with AHRS or IMU algorithms to obtain motion data in quaternion format for accurate spatial tracking. Each sensor can also be accessed individually to measure tilt, vibration, or rotational movement.

This device features a built-in temperature stabilization circuit that maintains the sensors at a constant 50°C, significantly reducing temperature-related measurement drift.

Key Features

  • 3-axis accelerometer up to ±16g
  • 3-axis gyroscope up to ±2000° per second
  • 3-axis magnetometer up to ±8G
  • Accurate timestamping for advanced calculations
  • Built-in AHRS and IMU algorithm support
  • Connect via USB or through a VINT Hub

Accelerometer

  • Acceleration Measurement Max ±16 g
  • Acceleration Measurement Resolution 30 μg
  • Acceleration Bandwidth 250 Hz
  • Noise @ 1 ms ±3 mg
  • Noise @ 10 ms ±1.5 mg
  • Noise @ 100 ms ±200 μg
  • Drift Max 2 mg
  • Bias +15 to +30 °C 5 mg
  • Bias Stabilized at 50 °C 1 mg

Gyroscope

  • Angular Rate Max ±2000° per second
  • Resolution 0.004° per second
  • Noise @ 1 ms ±0.2° per second
  • Noise @ 10 ms ±0.05° per second
  • Noise @ 100 ms ±0.015° per second
  • Drift Max 0.1° per second
  • Bias +15 to +30 °C 0.5° per second
  • Bias Stabilized at 50 °C 0.05° per second

Magnetometer

  • Magnetic Field Max ±8 G
  • Resolution 1.5 mG
  • Noise @ 10 ms ±10 mG
  • Noise @ 50 ms ±5 mG
  • Noise @ 100 ms ±2.5 mG

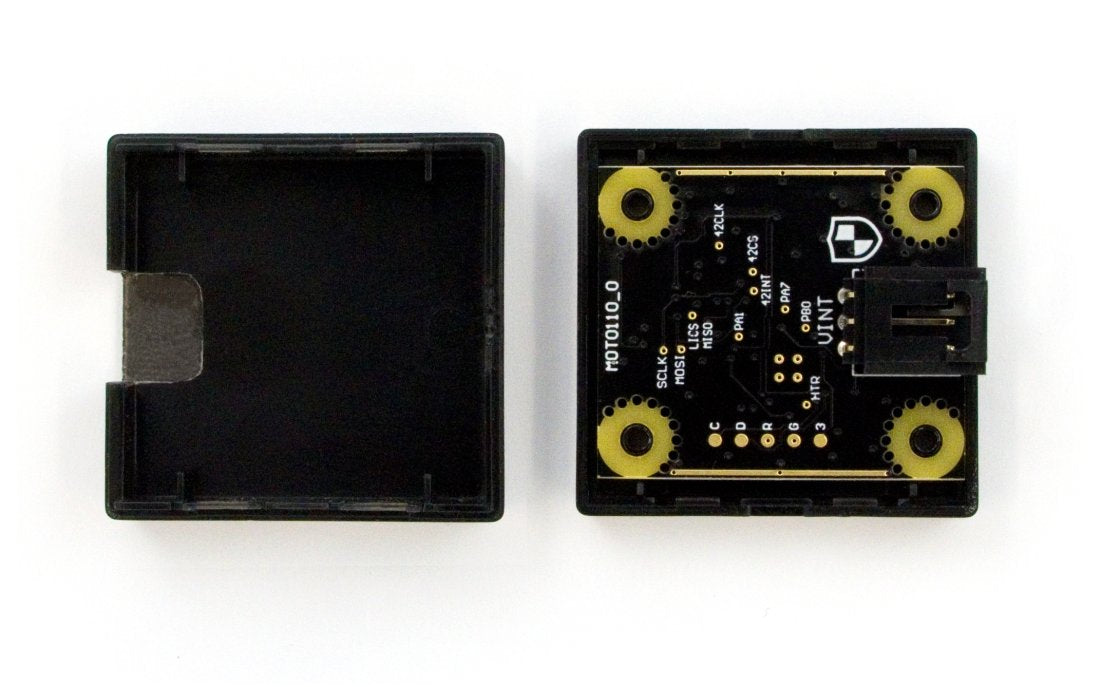

Board Properties

  • Controlled By VINT or USB
  • USB Stack PHIDUSB
  • Driver Support Phidget22
  • API Object Names Accelerometer, Gyroscope, Magnetometer, Spatial, TemperatureSensor
  • VINT Communication Speed Max 1 Mbit per second
  • Current Consumption Max 60 mA
  • Current Consumption Max with Heating Enabled 450 mA
  • Sampling Speed Min 1 s per sample
  • Sampling Speed Max 1 ms per sample
  • USB Voltage Min 4.1 V DC
  • USB Voltage Max 5.3 V DC
  • USB Speed Full Speed
  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Customs Information

  • Canadian HS Export Code 8471.80.00
  • American HTS Import Code 8471.80.40.00
  • Country of Origin China

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty 12 months
  • Delivery time up to 10 business days
  • Professional technical support
  • Genuine Phidgets product
