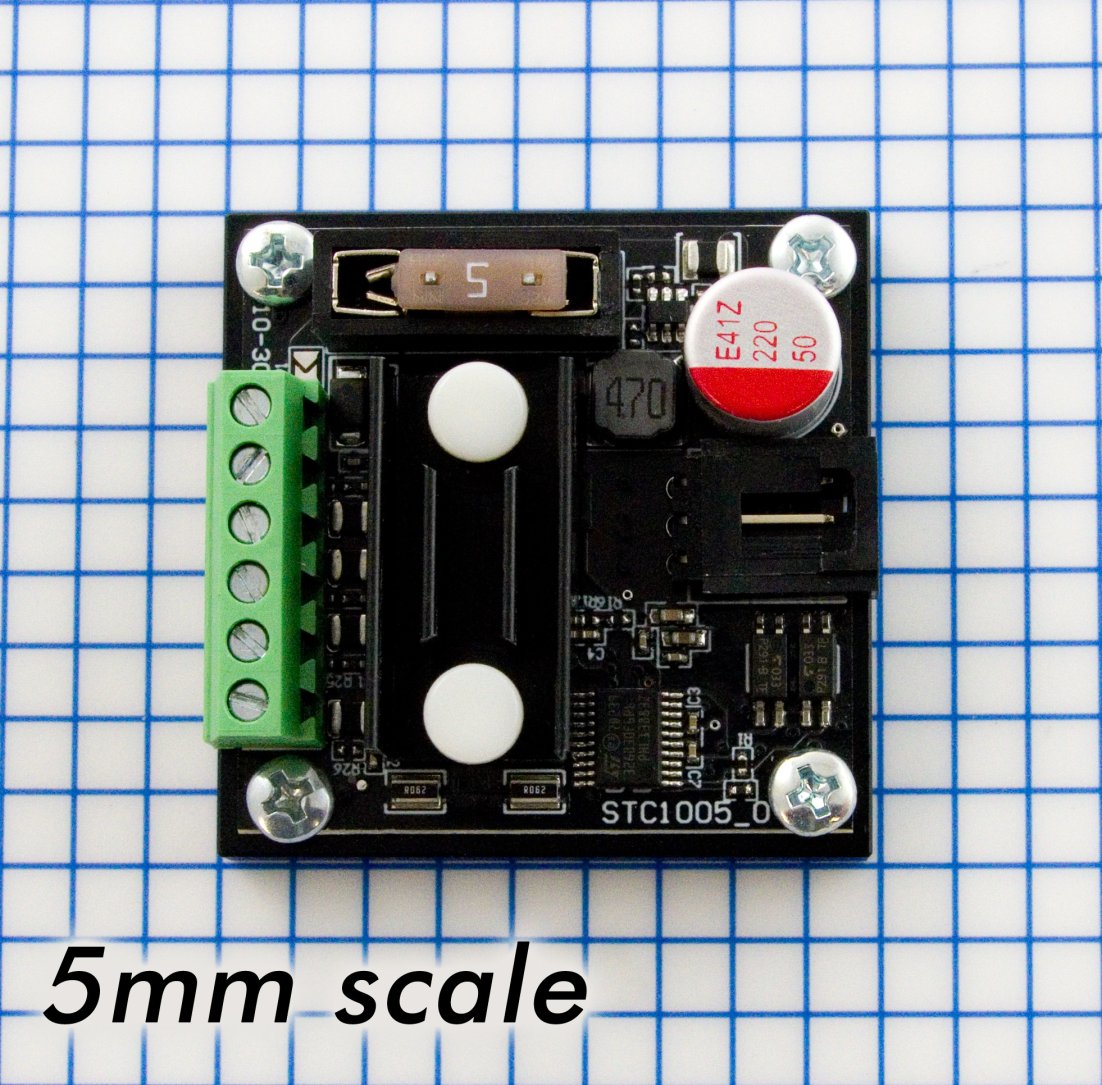

4A Stepper Phidget (STC1005_0)

4A Stepper Phidget (STC1005_0)

STC1005_0

239.00 ₪
289.00 ₪ 239.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

The 4A Stepper Phidget is a compact yet powerful stepper motor driver. It operates on 10-30V DC and provides up to 4 amps of continuous current per phase to a single bipolar stepper motor.

This controller features two operating modes: Step Mode and Run Mode. In Step Mode, users set a Target Position, and the controller intelligently moves the motor toward the target while adhering to the user-specified Acceleration and Velocity Limit. In Run Mode, the controller continuously rotates the motor in the chosen direction, again following the defined Acceleration and Velocity Limit.

There are several built-in safety features, including advanced over-current protection, failsafe protection, supply voltage monitoring, built-in power guard, thermal protection, and polarity protection.

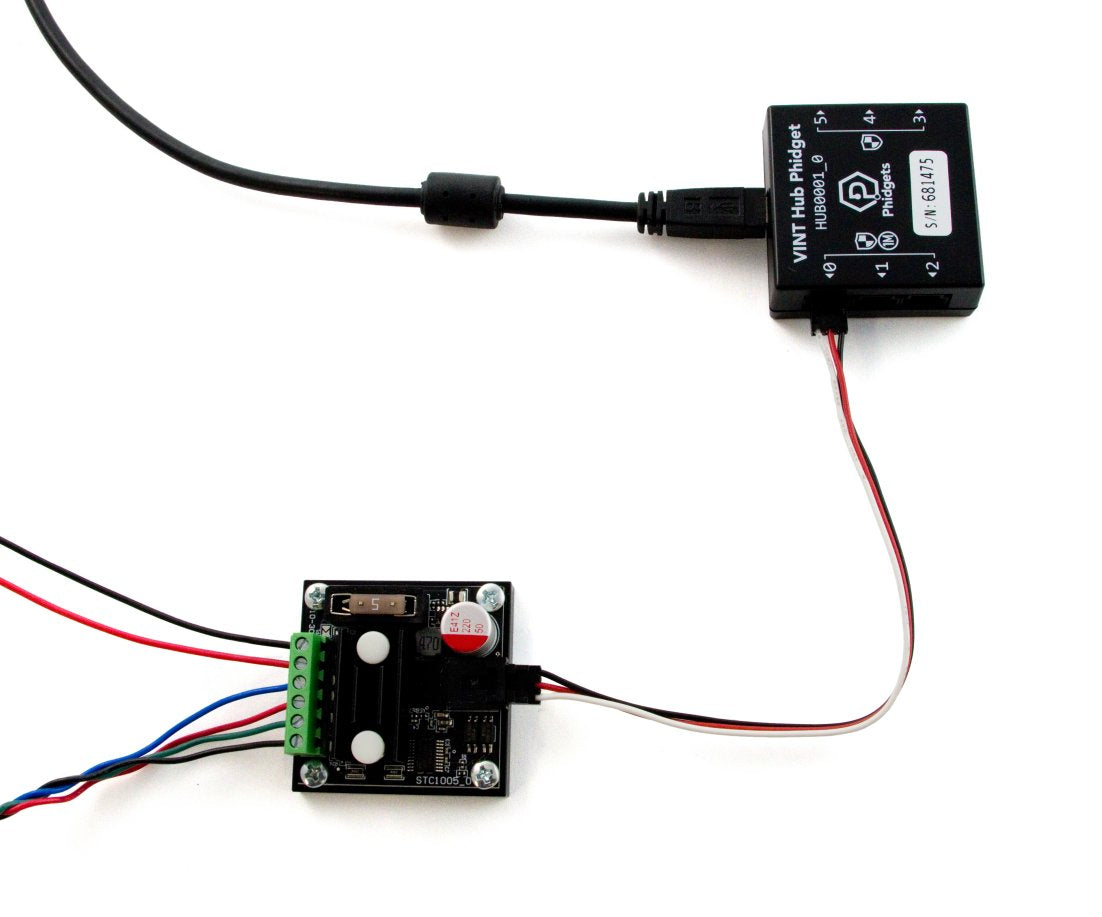

The 4A Stepper Phidget must be connected to a VINT Hub Phidget to function.

Features

  • Delivers up to 4A of continuous current per phase to a single bipolar stepper motor.
  • Supports microstepping with a resolution of 1/16 steps.
  • Offers advanced current limit settings.
  • Includes built-in electrical isolation for enhanced system reliability.

Product Specifications

Board Properties

  • Controlled By VINT

Controller Properties

  • Motor Type Bipolar Stepper
  • Number of Motor Ports 1
  • Motor Position Resolution 1/16 Step (40-Bit Signed)
  • Position Max ± 1E+15 1/16 steps
  • Stepper Velocity Resolution 1 1/16 steps/sec
  • Stepper Velocity Max 115000 1/16 steps/sec
  • Stepper Acceleration Resolution 1 1/16 steps/sec²
  • Stepper Acceleration Min 2 1/16 steps/sec²
  • Stepper Acceleration Max 1E+07 1/16 steps/sec²
  • Sampling Interval Min 100 ms/sample
  • Sampling Interval Max 60 s/sample

Electrical Properties

  • Available Current per Coil Max 4 A
  • Supply Voltage Min 10 V DC
  • Supply Voltage Max 30 V DC
  • Current Consumption Min (VINT Port) 500 μA
  • Current Consumption Max (VINT Port) 1 mA
  • Quiescent Power Consumption Max 200 mW

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min -20 °C
  • Operating Temperature Max 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
