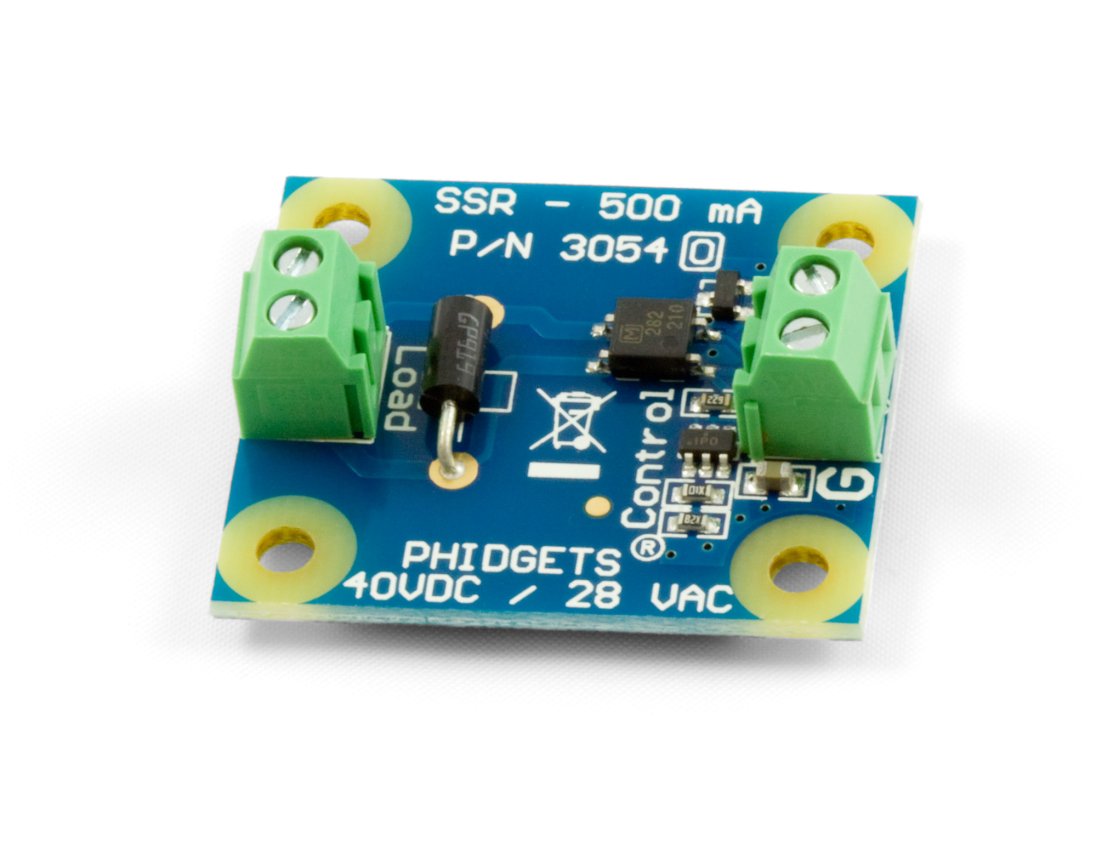

SSR Relay Board 0.5A (3054_0)
SSR Relay Board 0.5A (3054_0)
SKU:3054_0
Couldn't load pickup availability
The SSR Relay Board 0.5A (3054_0) provides solid-state relay (SSR) switching with no moving parts, offering silent operation, rapid response times, and an extended operational lifespan over traditional mechanical relays.
Engineered for safe operation alongside sensitive microprocessors, Phidget devices, and host PCs, the board features complete input-to-output electrical isolation. Built-in protection against static discharge (ESD) and voltage surges caused by inductive loads ensures ultimate circuit protection and reliability.
Features:
- Controls one solid-state relay output without mechanical contacts
- AC load switching up to 28V AC and 0.5 Amps
- DC load switching up to 40V DC and 0.5 Amps
- Driven by standard 5V logic-level digital outputs
- Optically isolated input to safeguard sensitive digital controllers
- Onboard protection against ESD and inductive load voltage spikes
SSR Relay Board Technical Specifications
- Relay Channels: 1 Solid State Relay Channel
- AC Load Rating: Up to 28V AC @ 0.5A
- DC Load Rating: Up to 40V DC @ 0.5A
- Control Signal: 5V DC Logic Level Input
- Isolation: Input-to-Output Electrical Isolation
- Protection: Integrated ESD and Inductive Spike Suppression
- Target Applications: Microprocessor load control, low-power AC/DC switching, noise-sensitive signaling
The package includes:
- 1 x SSR Relay Board 0.5A (3054_0)

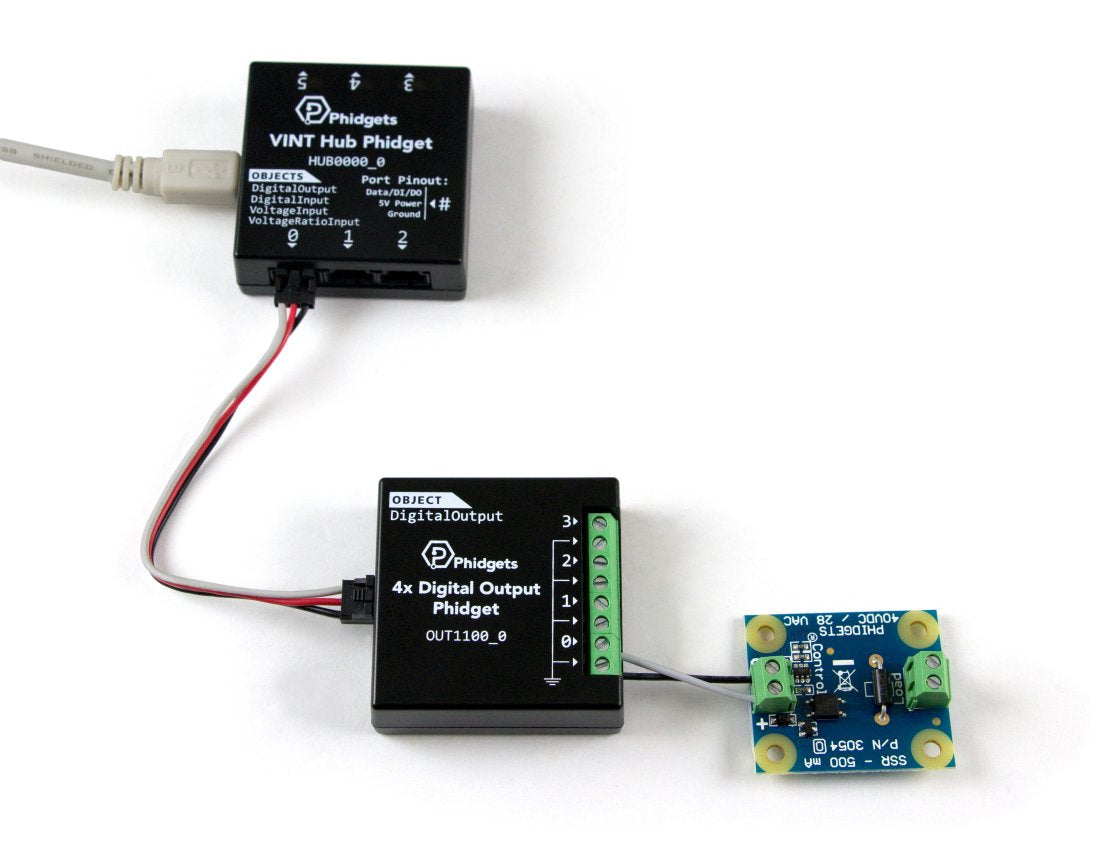

Easily controlled via digital output channels on any standard Phidget digital interface kit or VINT Hub device using standard Phidget22 APIs:
- OS Support: Windows, macOS, Linux
- Languages & Frameworks: C/C++, C#, Python, Java, MATLAB, LabVIEW, Swift, Node.js, and more
Download technical documentation and datasheets:
Download SSR Relay Board 0.5A (3054_0) User Guide & Technical Schematic
