Acrylic Enclosure for Relay Boards (3821_2)
Acrylic Enclosure for Relay Boards (3821_2)
SKU:3821_2
Regular price
39.00 ₪
Regular price
Sale price
39.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

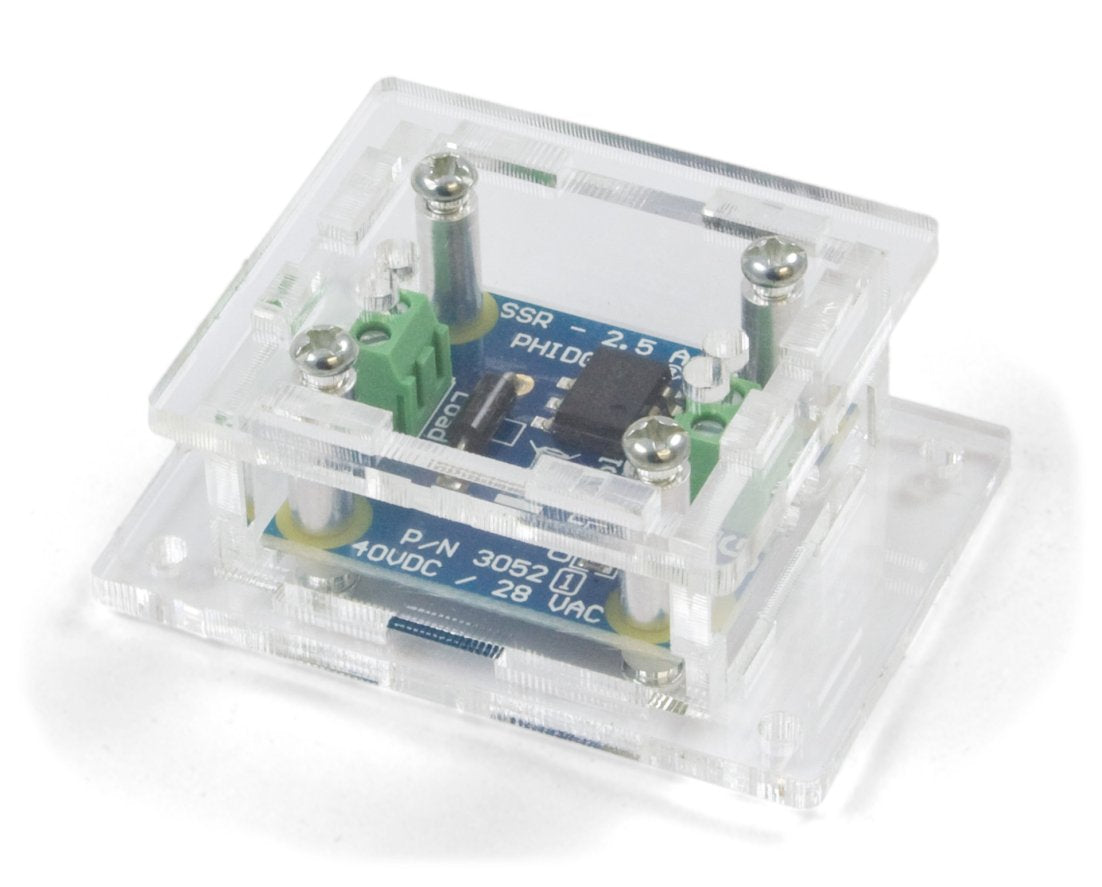

This enclosure is designed to protect the Rev 1 version of the 3052 or the Rev 0 version of the relay board.
You can access the screw terminals without having to open the enclosure.
Be careful when tightening the mounting screws, excess tension can crack the acrylic.
Note: The Phidget board is not included with the enclosure and must be purchased separately.
Features
- Clear acrylic enclosure protects the Phidget from damage
- Fits the Phidget 3052_1 or 3054_0
Package Includes
- 6 clear acrylic pieces
- Mounting Hardware (Nuts, bolts, spacers)
Required Tools
- Small Phillips screwdriver
Product Specifications
Sensor Properties
| Sensor Type | Infrared (Time-of-Flight) |
|---|---|
| Controlled By | VINT |
| Measurement Distance Min | 4 mm |
| Measurement Distance Max | * 170 mm |
| Measurement Distance Resolution | 1 mm |
| Measurement Distance Noise | 3 mm |
Distance Sensor
| Sampling Interval Max | 60 s/sample |
|---|---|
| Sampling Interval Min | 10 ms/sample |
Electrical Properties
| Current Consumption Max | 4 mA |
|---|---|
| Current Consumption Min | 20 μA |
Physical Properties
| Operating Temperature Min | -40 °C |
|---|---|
| Operating Temperature Max | 85 °C |
* – Maximum distance depends on the reflectivity of the surface of the object. Typical results are around 170mm, but could be as low as 100mm for some surfaces. The “200mm” listed on the enclosure is incorrect.
Download the full product sheet:
Download Product Sheet, PDF
Warranty & Delivery
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
