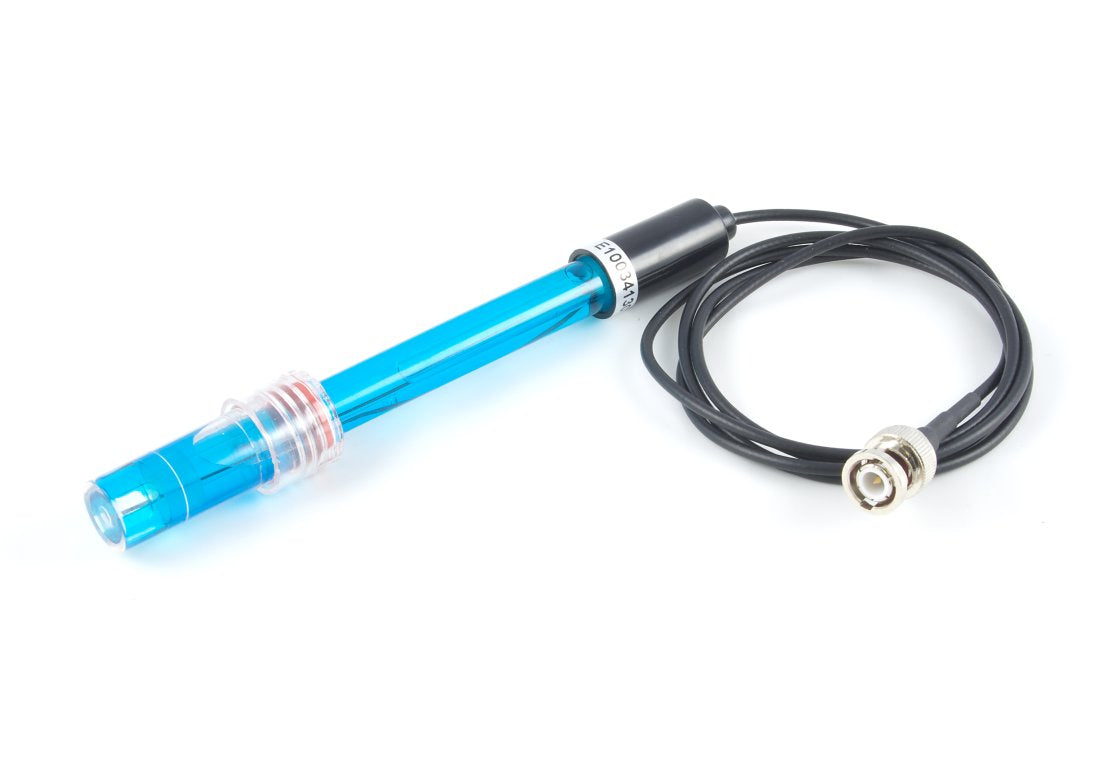

pH Lab Electrode (3550_0)

The pH Lab Electrode (3550_0) is an economical, general-purpose pH probe designed for reliable liquid testing in laboratory, educational, and field environments.

Constructed with an impact-resistant epoxy body, this electrode delivers fast and stable response times suitable for prolonged pH monitoring. Its sealed, gel-filled design requires virtually no maintenance with no reference refilling required. The probe features a standard BNC connector that plugs directly into Phidget pH interfaces and adapters.

Features:

• Monitors the pH level of liquids and aqueous solutions
• Connects via industry-standard BNC connector to Phidget pH adapters
• Impact-resistant epoxy body provides durability in field or lab conditions
• Sealed, gel-filled reference chamber eliminates the need for liquid refilling
• Includes a container of buffer solution to maintain sensor moisture between uses

Storage Tip: Fill the protective sensor cap with the included buffer solution and submerge the glass tip between uses to ensure long electrode life.

pH Lab Electrode Specifications

• Connector Type: Standard BNC Male
• Body Material: Impact-Resistant Epoxy
• Reference Type: Sealed, Gel-Filled (Maintenance-Free)
• Measurement Type: pH Level
• Operating Environment: General Laboratory and Field Use
• Compatibility: Phidget pH Phidget (ADP1000_0), Phidget pH/ORP Adapter (1130_0)

The package includes:

• 1 x pH Lab Electrode with BNC Connector (3550_0)
• 1 x Protective Sensor Storage Cap
• 1 x Container of Storage Buffer Solution

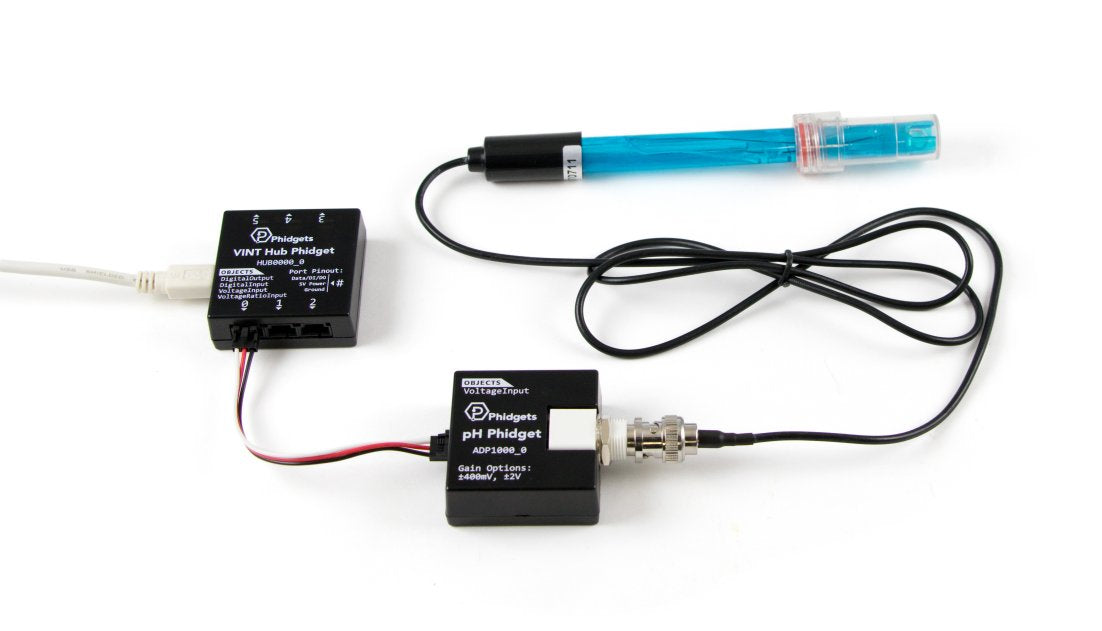

When connected to a Phidget pH interface (e.g., ADP1000_0 or 1130_0), readings are accessible using standard Phidget22 software APIs:

• OS Support: Windows, macOS, Linux
• Languages & Frameworks: C/C++, C#, Python, Java, MATLAB, LabVIEW, Swift, Node.js, and more

Download technical documentation and care instructions:

Download pH Lab Electrode (3550_0) Maintenance & Calibration Guide

• Warranty: 12-Month Factory Warranty
• Delivery time: up to 10 business days
• Professional customer service, fast delivery, attractive pricing
• Genuine Phidgets product
