8A Stepper Phidget (STC1002_0)

Name: 8A Stepper Phidget (STC1002_0)
Brand: Phidgets
SKU: STC1002_0
Price: 399.00 ILS
Availability: InStock

SKU:STC1002_0

399.00 ₪

~~459.00 ₪~~ 399.00 ₪

Sale Sold out

Taxes included. Shipping calculated at checkout.

Description Specifications What's in the Box Software Downloads Warranty & Delivery Related Products

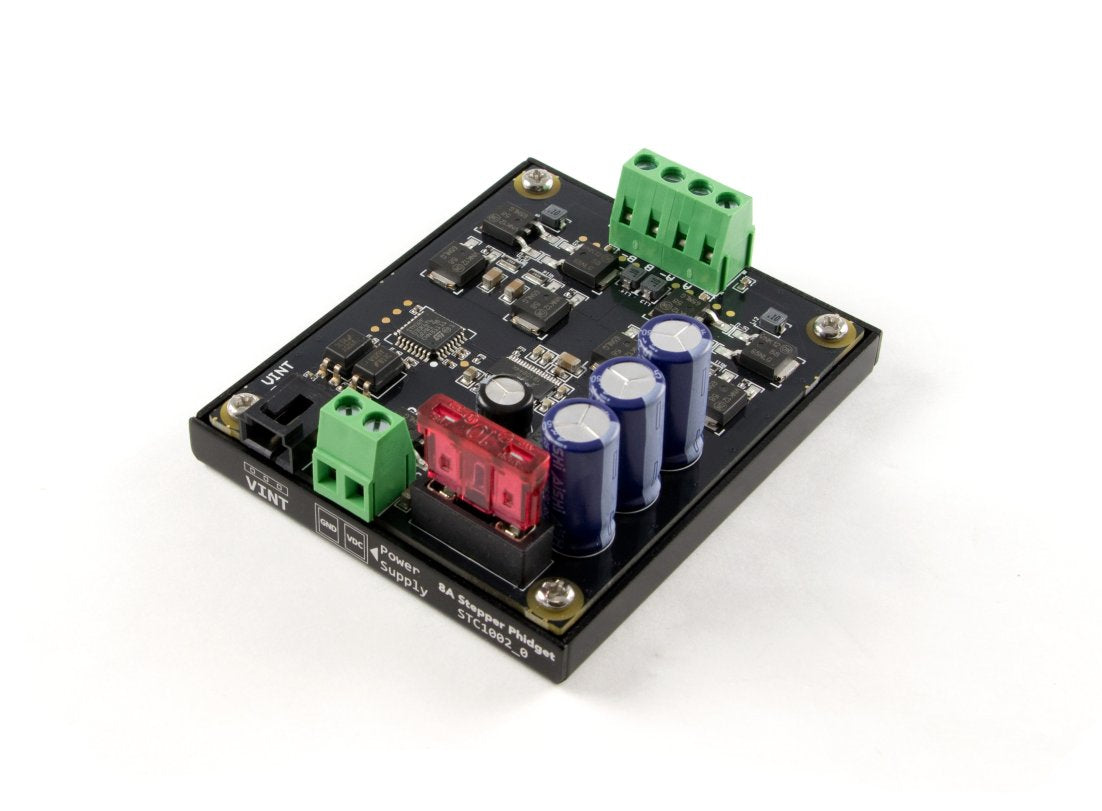

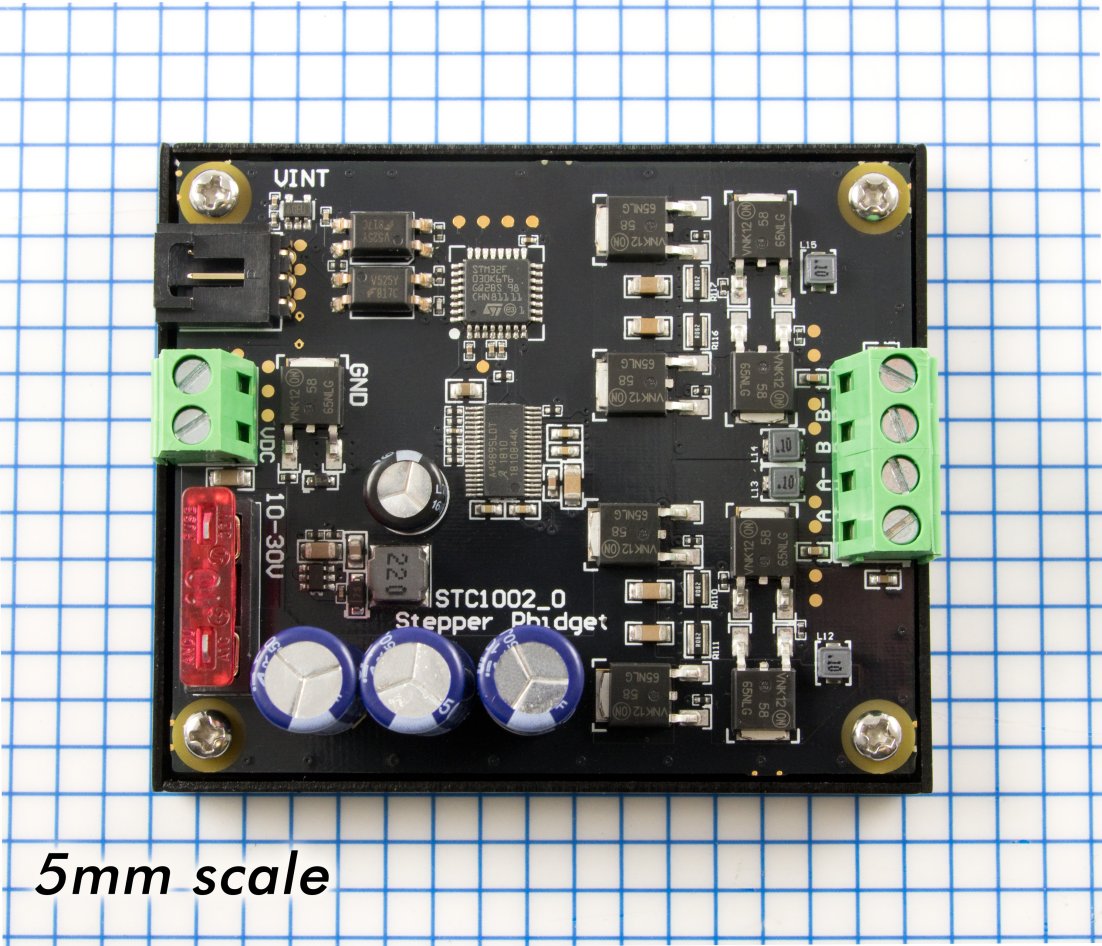

The 8A Stepper Phidget (STC1002_0) is a high-power stepper motor driver capable of supplying up to 8A of continuous current per phase to a single bipolar stepper motor. Operating on a 10–30V DC external power supply, it delivers smooth, high-torque motion control with 1/16 microstepping resolution.

Designed for heavy-duty automated machinery and robotics, the driver features two flexible operation modes: Step Mode, which allows precise positioning to a Target Position according to configured Acceleration and Velocity limits, and Run Mode, which drives continuous rotation while strictly adhering to set motion parameters. Built-in electrical isolation and robust circuit safety systems protect host controllers against high-current electrical noise and fault conditions.

Features:

Delivers up to 8A continuous current per phase to a single bipolar stepper motor
Wide operating supply voltage range of 10V DC to 30V DC
Supports microstepping with resolutions down to 1/16 step
Dual control modes: Step Mode (precise positioning) and Run Mode (continuous velocity)
Advanced current limit settings and programmable acceleration profiles
Integrated electrical isolation to safeguard system controllers
Comprehensive safety protection: advanced over-current, failsafe protection, and reverse polarity safeguard

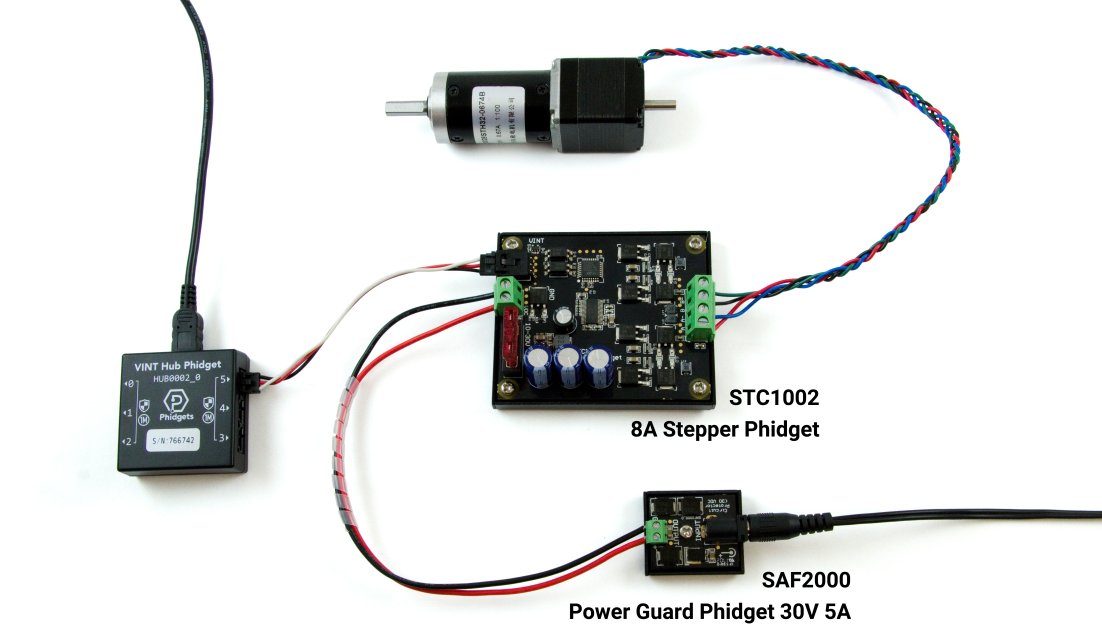

Note: The 8A Stepper Phidget must be connected to a VINT Hub Phidget to function. External DC power supply and VINT cables are sold separately.

8A Stepper Phidget Technical Specifications

Motor Compatibility: 1 x Bipolar Stepper Motor
Supply Voltage Range: 10V DC – 30V DC
Continuous Output Current: Up to 8.0A RMS per phase
Microstepping Resolution: 1/16 Step
Control Modes: Step Mode (Position Target), Run Mode (Continuous Velocity)
System Interface: Phidgets VINT Hub Input
Electrical Isolation: Integrated VINT Circuit Isolation
Protection Features: Advanced Over-Current Protection, Failsafe Guard, Polarity Protection

The package includes:

1 x 8A Stepper Phidget Board (STC1002_0)

Controlled through the Phidget22 API using the Stepper software class. The software provides easy control over current limits, holding current, velocity, acceleration, and microstepping settings:
