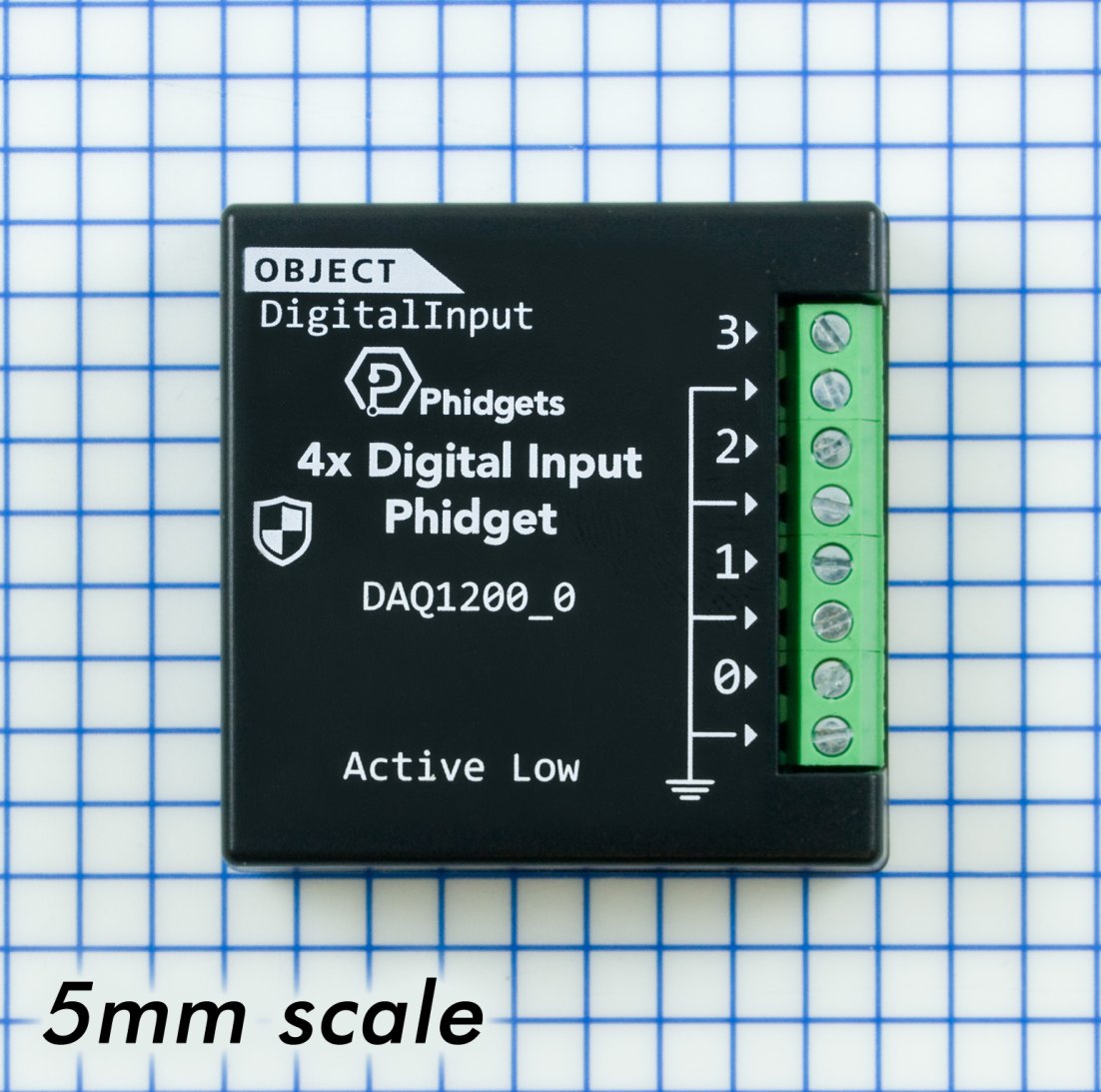

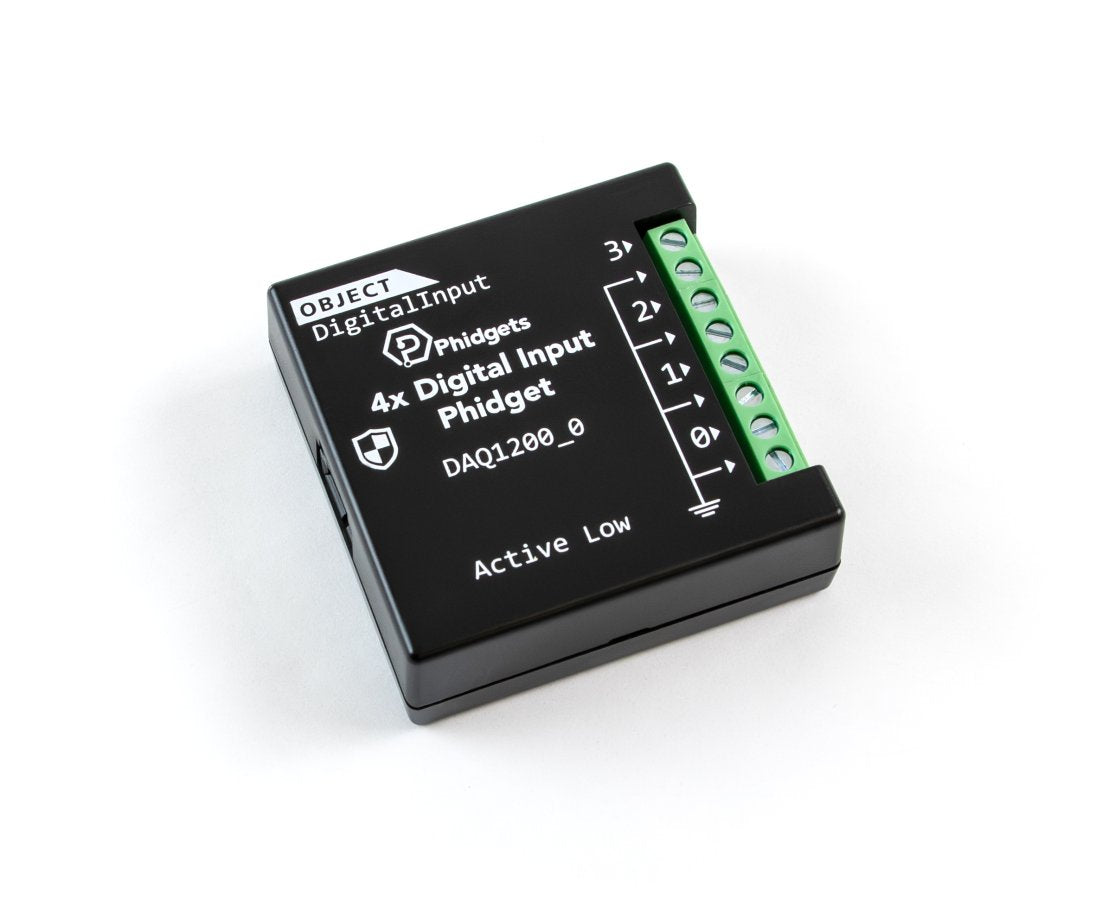

4x Digital Input Phidget (DAQ1200_0)

The 4x Digital Input Phidget (DAQ1200_0) is a compact expansion module designed for high-speed digital state detection in industrial and laboratory applications. Equipped with four active-low digital input channels, it connects directly to a VINT Hub Phidget port to expand system monitoring capabilities.

Engineered for faster signal response than standard VINT Hub digital inputs, the DAQ1200_0 can reliably detect high-speed pulse signals as short as 2 milliseconds. Each channel integrates hardware filtering to eliminate false trigger events caused by industrial EMI and contact bounce, making it ideal for interfacing with push buttons, limit switches, optical sensors, and logic-level trigger signals.

Features:

• 4 active-low digital input channels
• Fast signal detection capable of triggering on pulses as short as 2 ms
• Integrated hardware filtering to prevent false triggers from electrical noise
• Designed for interfacing with limit switches, push buttons, and digital sensors
• 5VDC maximum input voltage rating
• Connects seamlessly to any host computer through a VINT Hub Phidget

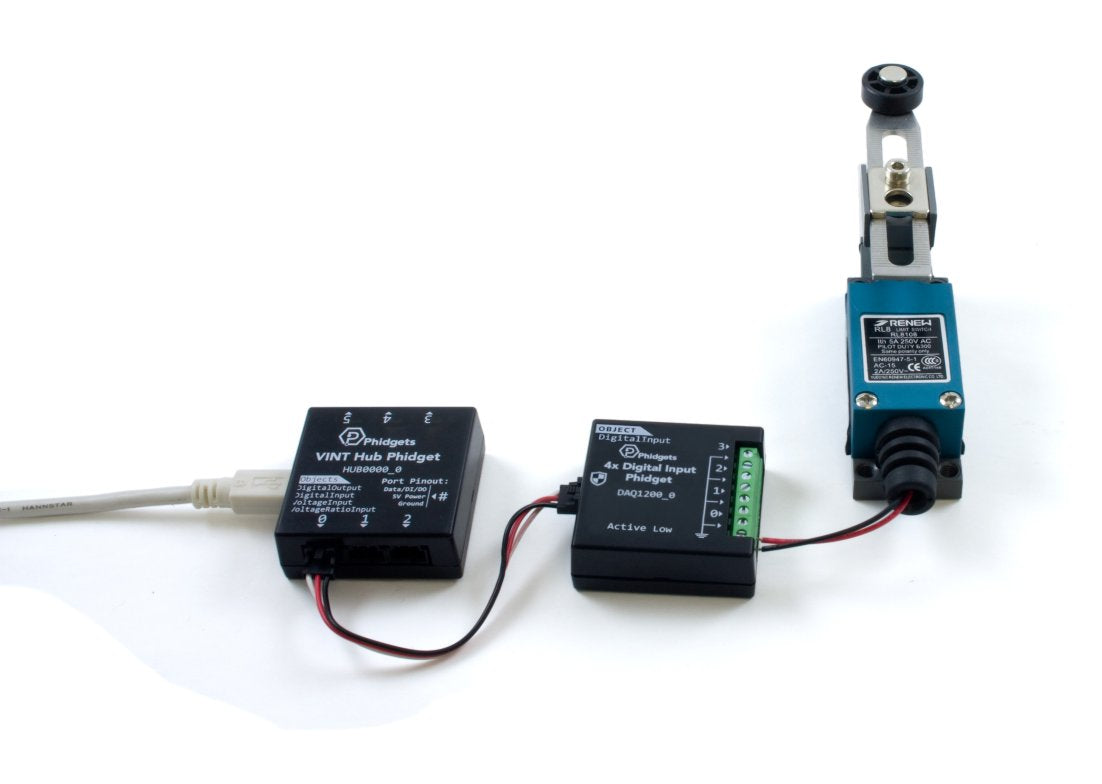

Note: The DAQ1200_0 requires a Phidgets VINT Hub (e.g., HUB0002_0 or HUB0002_1) to connect to a host computer.

4x Digital Input Phidget (DAQ1200_0) Technical Specifications

• Part Number: DAQ1200_0
• Number of Digital Inputs: 4 Channels
• Input Type: Active-Low
• Maximum Input Voltage: 5 VDC
• Minimum Pulse Width Trigger: 2 milliseconds
• Noise Protection: Integrated Hardware Filtering
• System Interface: Phidgets VINT Port

The package includes:

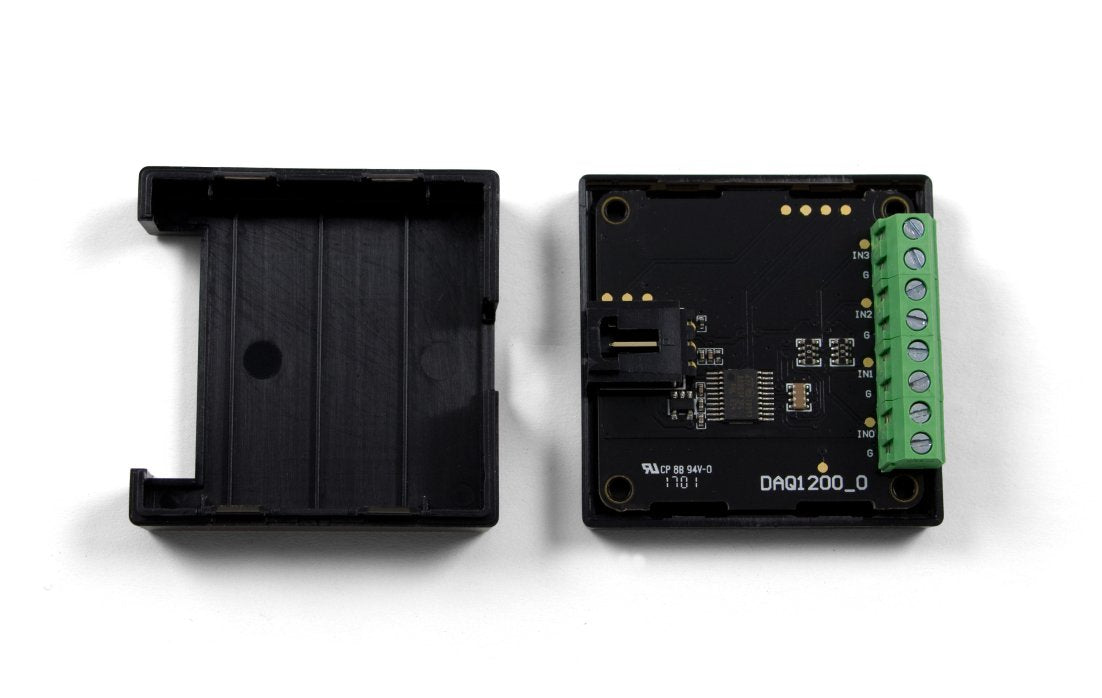

• 1 x 4x Digital Input Phidget Board (DAQ1200_0)

Fully supported by the unified Phidget22 Software API using the DigitalInput software class for event-driven or polling input monitoring:

• OS Support: Windows, macOS, Linux, Android, iOS
• Programming Languages: Python, C/C++, C#, Java, LabVIEW, MATLAB, Swift, JavaScript

Download technical manuals, wiring schematics, and software drivers:

Download 4x Digital Input Phidget (DAQ1200_0) Technical Datasheet

• Warranty: 12-Month Factory Warranty
