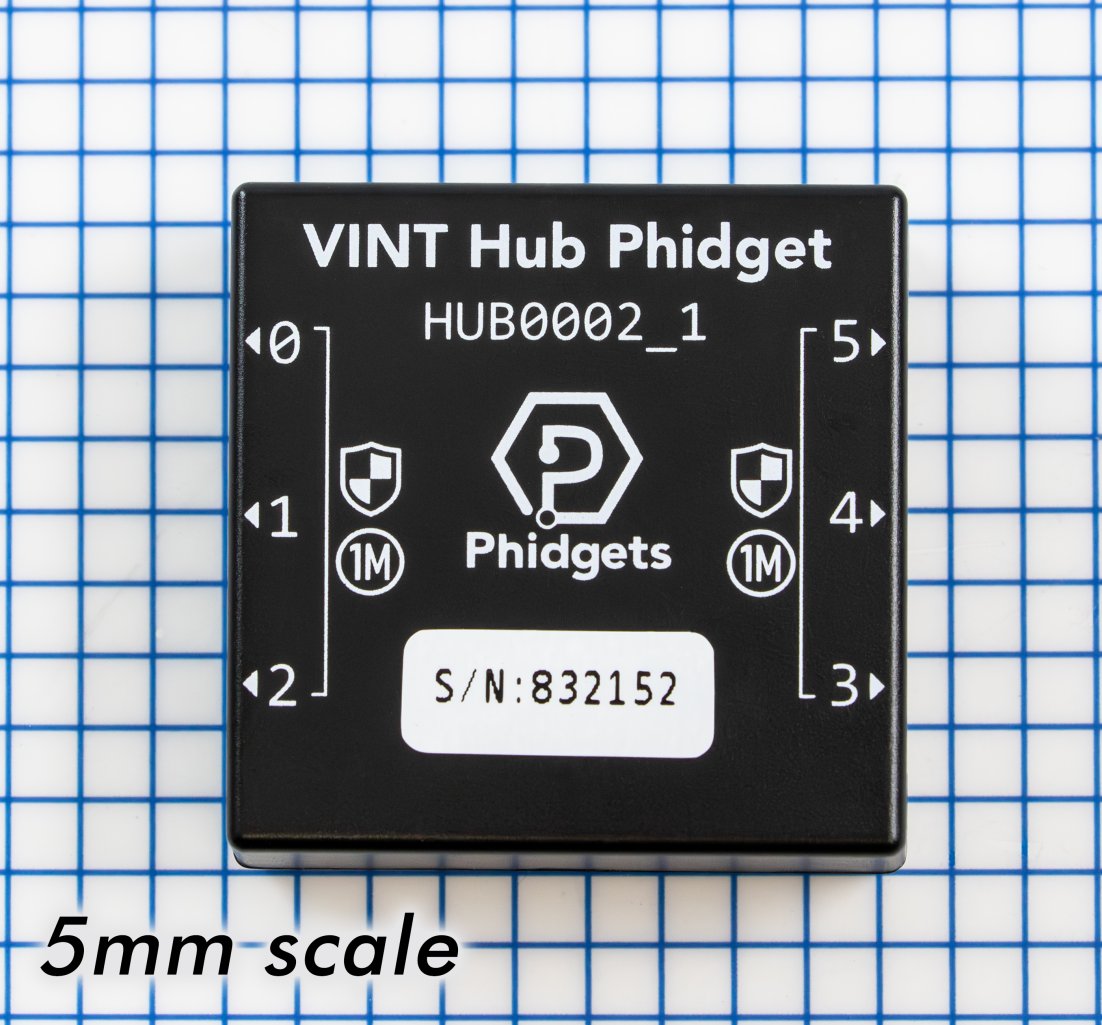

VINT Hub Phidget (HUB0002_1)

The VINT Hub Phidget (HUB0002_1) is a versatile six-port hub designed to connect smart Versatile Interface (VINT) devices directly to a computer via a modern USB Type-C connection. Each port operates independently and can be configured as a high-speed VINT communication port, 0–5VDC analog input, active-low digital input, or PWM digital output, providing flexible expansion for modular automation setups.

Equipped with enhanced electrical signaling, the HUB0002_1 supports extended cable runs and high-speed megabit communications for lower latency and accelerated sample rates on supported VINT devices. When connected, Phidget drivers automatically detect plugged-in modules and expose them through the API. Digital inputs include built-in hardware filtering against false triggers from electrical noise, while analog inputs deliver high sampling rates up to 1000 Hz.

Features:

• Six independent, high-speed VINT communications ports
• Updated host interface featuring a USB Type-C connector
• Multi-mode port functionality: VINT data, 0–5VDC Analog Input, Digital Input, or Digital Output
• Analog sampling rates up to 1000 Hz
• Active-low digital inputs (5.5VDC max) featuring integrated noise filtering
• PWM-enabled 3.3VDC digital outputs for driving LEDs and logic-level devices
• Supports high-speed megabit communications for low-latency VINT modules
• Improved electrical performance for longer maximum cable lengths

VINT Hub Phidget (HUB0002_1) Technical Specifications

• Part Number: HUB0002_1
• Number of VINT Ports: 6
• Host Interface: USB Type-C
• Analog Input Range: 0 to 5 VDC
• Analog Sampling Rate: Max 1000 Hz
• Digital Input Mode: Active-low (Max 5.5 VDC) with hardware filtering
• Digital Output Mode: 3.3 VDC (PWM-enabled)
• Communication Protocol: High-speed VINT (Megabit supported)

The package includes:

• 1 x VINT Hub Phidget (HUB0002_1)

Seamlessly controllable using the unified Phidget22 Software API with automatic device detection and multi-platform library support:

• OS Support: Windows, macOS, Linux, Android, iOS
• Programming Languages: Python, C/C++, C#, Java, LabVIEW, MATLAB, Swift, JavaScript

Download technical manuals, driver packages, and VINT documentation:

Download VINT Hub Phidget (HUB0002_1) Technical Datasheet

• Warranty: 12-Month Factory Warranty
• Delivery time: up to 10 business days
• Professional customer service, fast delivery, attractive pricing
• Genuine Phidgets product
