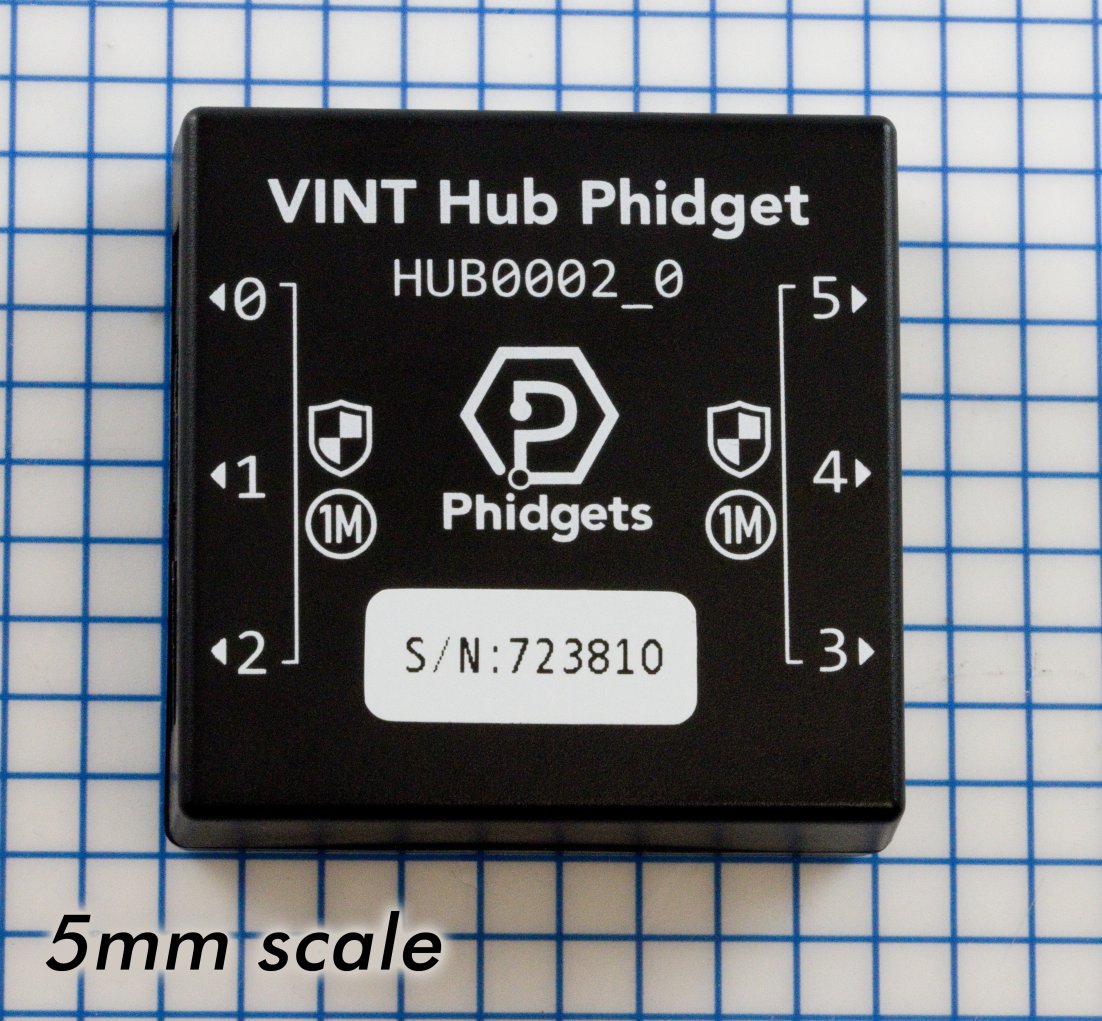

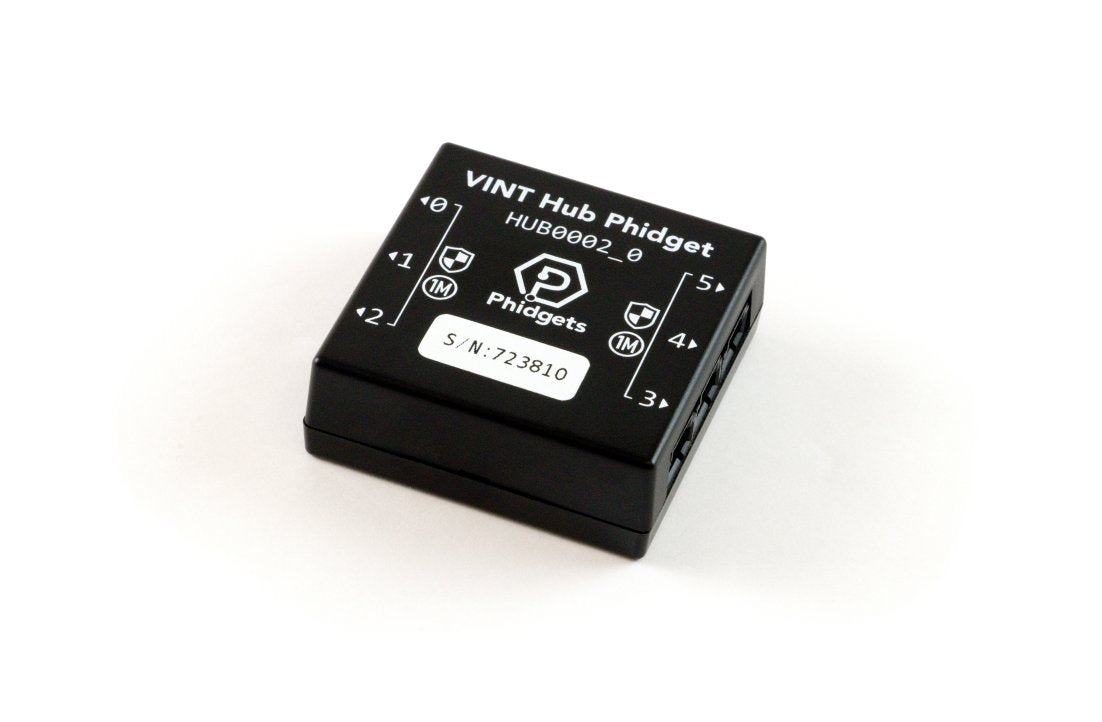

VINT Hub Phidget (HUB0002_0)

VINT Hub Phidget (HUB0002_0)

HUB0002_0

199.00 ₪
219.00 ₪ 199.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

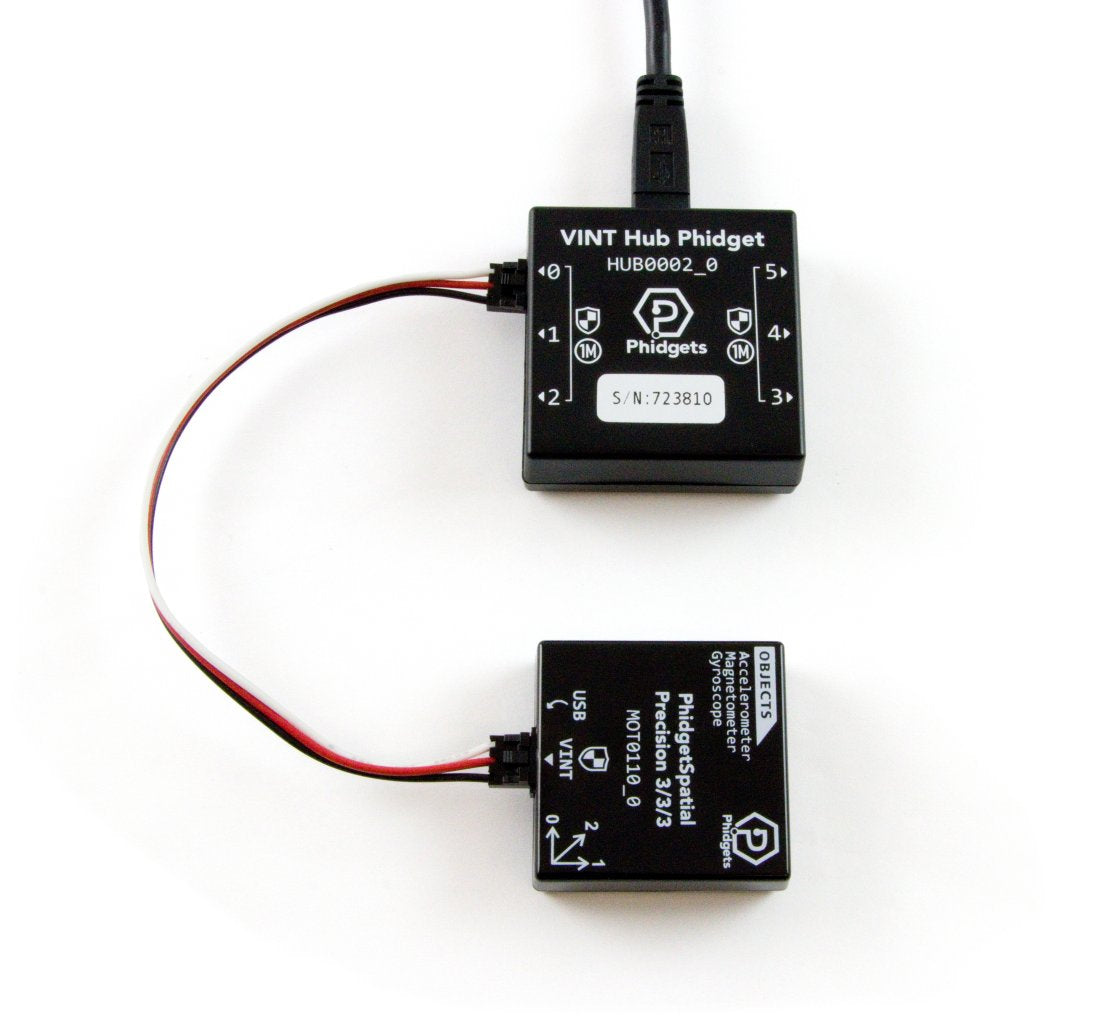

The VINT Hub is one of the most commonly used Phidgets. Connect up to six devices to your computer through a single USB port. Phidgets are "Plug and Program" - When plugged in, they are automatically discovered by the Phidget drivers and made available to your program. You can configure each port to operate in different modes that make it easy to interface with VINT devices, analog sensors, or logic-level circuits. Each port also has a power and ground pin, providing direct access to the USB voltage supply.

Features

  • Six versatile ports that can operate in different modes
  • Communicate with an intelligent VINT Device
  • Read a 0-5V Voltage or ratiometric sensor
  • Act as a PWM-enabled digital output or digital input
  • The mode of each port is set in your program, allowing for flexible use in projects

The HUB0002_0 has improved immunity, resulting in a longer maximum cable length for any device with the Shield icon printed on the enclosure.

It also supports high-speed megabit communication (marked with Speed). For some VINT devices, this will result in faster data rates and lower latency.

For more information about these features, see the User Guide.

Product Specifications

Board

  • Controlled By USB (Mini-USB)
  • Number of VINT Ports 6

Electrical Properties

  • USB Voltage Min 4.5 V DC
  • USB Voltage Max 5.3 V DC
  • USB Speed High Speed
  • Current Consumption Min 32.5 mA
  • Available External Current 470 mA

Voltage Inputs

  • Voltage Input Resolution * 16 bit
  • Sensor Input Impedance 324 k?©
  • Input Voltage Min (DC) 0 V DC
  • Input Voltage Max (DC) 5 V DC
  • Voltage Input Noise ?± 630 ?¼V DC
  • Sampling Interval Max 60 s/sample
  • Number of Voltage Inputs 6 (Shared)
  • Sampling Interval Min 1 ms/sample

Digital Inputs

  • Pull-up Resistance 124 k?©
  • Low Voltage Max (True) 1 V DC
  • High Voltage Min (False) 1.8 V DC
  • Low Voltage Trigger Length Min 3 ms
  • High Voltage Trigger Length Min 3 ms
  • Digital Input Voltage Max 5.5 V DC
  • Digital Input Type Switch (Active Low)
  • Number of Digital Inputs 6 (Shared)

Digital Outputs

  • Series Resistance 510 ?©
  • Digital Output Available Current 8.1 mA
  • Digital Output Voltage Min 0 V DC
  • Digital Output Voltage Max 3.3 V DC
  • PWM Frequency Max 50 kHz
  • PWM Resolution 0.8 %
  • Number of Digital Outputs 6 (Shared)

Physical Properties

  • Operating Temperature Min -40 ?°C
  • Operating Temperature Max 85 ?°C

*Voltage measured with a 10-bit ADC, oversampled to 16-bits.

Software Objects

  • Channel Name API Channel Hub Port
  • Hub Port – Digital Input Mode
  • Digital Input DigitalInput 0 0 – 5
  • Hub Port – Digital Output Mode
  • Digital Output DigitalOutput 0 0 – 5
  • Hub Port – Voltage Input Mode
  • Voltage Input VoltageInput 0 0 – 5
  • Hub Port – Voltage Ratio Mode
  • Voltage Ratio Input VoltageRatioInput 0 0 – 5
  • 6-Port USB VINT Hub Phidget
  • VINT Hub Hub 0

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
