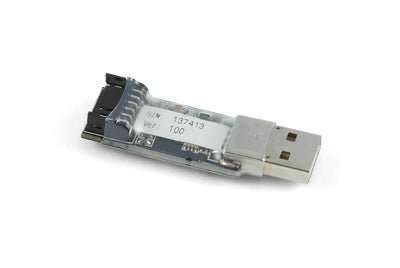

Designed for customers who only need a couple of analog or digital inputs and outputs, the PhidgetInterfaceKit 2/2/2 offers a compact, dongle sized interface that is ideal for space constrained projects.
To keep the board small, connectors were removed and replaced with a 12 wire cable for flexible integration.
Typical uses:
- Reading analog values like temperature, humidity, pressure, position
- Monitoring digital inputs such as push buttons, limit switches, relays
- Controlling LEDs, solid state relays, logic level devices
Board
- USB voltage range: 4.6 to 5.5 V DC
- Current consumption: 20 to 500 mA
- Available external current: 480 mA
- USB speed: full speed
- Operating temperature: 0 °C to 70 °C
Analog Inputs
Measures continuous quantities, for example temperature, humidity, pressure. Phidget sensors plug directly to the female cable connector.
- Number of analog inputs: 2
- Resolution: 10 bit
- Input impedance: 900 kΩ
- Voltage range: 0 to 5 V DC
- 5 V reference error max: 0.5 %
- Update rate: 1 to 1000 samples per second
- Available intervals: 1 ms, 2 ms, 4 ms, 8 ms, multiples of 8 ms up to 1000 ms
- WebService update rate max: 62.5 samples per second
Digital Inputs
Hardware filter reduces false triggers from electrical noise. Use for buttons, switches, relays, logic levels.
- Number of digital inputs: 2
- Pull up resistance: 15 kΩ
- Low voltage max, true: 800 mV DC
- High voltage min, false: 2.1 V DC
- Input voltage max: ± 15 V DC
- Update rate: 125 samples per second
- Trigger length min: 3 ms
Digital Outputs
Drives LEDs, solid state relays such as 3052, transistors, any device that accepts a CMOS signal.
- Number of digital outputs: 2
- Series resistance: 300 Ω
- Output current max: 16 mA
- Output voltage range: 0 to 5 V DC
The package includes:
- PhidgetInterfaceKit 2/2/2, model 1011_0

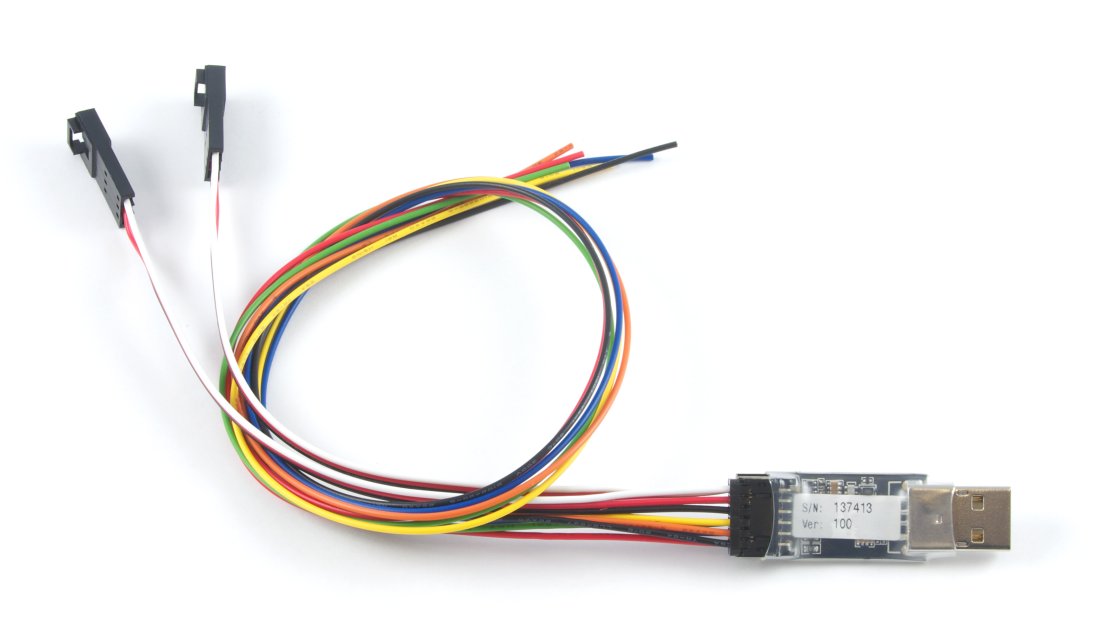

- A 3013, custom 12 wire cable
Wire Assembly

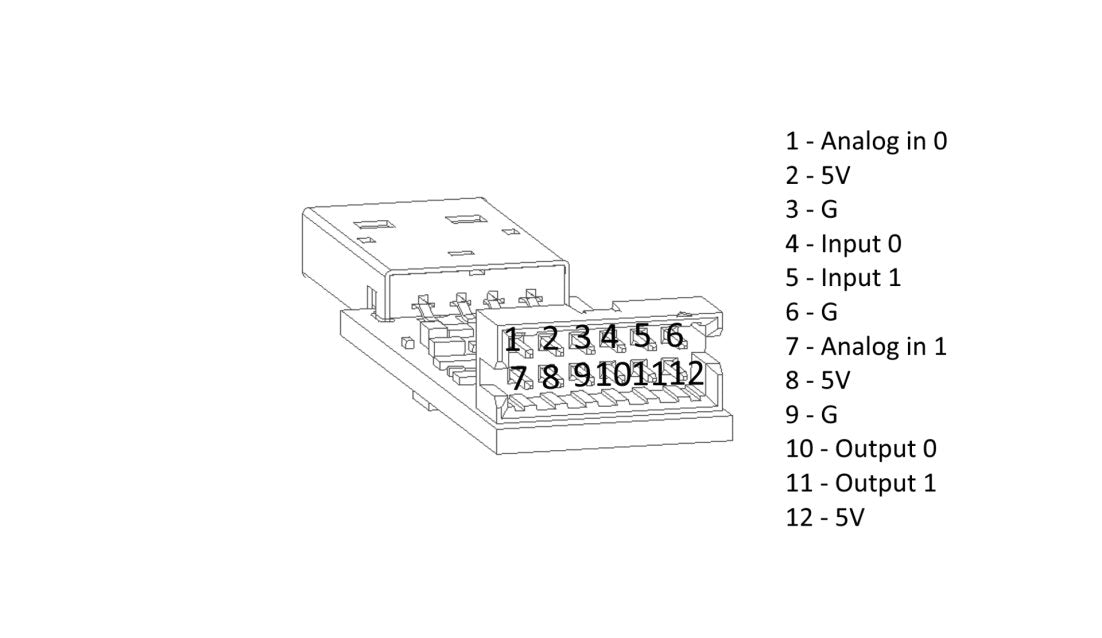

Wires 1, 2, 3 and wires 7, 8, 9 end with a female connector designed to take the Phidget sensor cable, other wires are loose.
