Phidgets
חיישן תאוצה מרחבית USB מדויק
חיישן תאוצה מרחבית USB מדויק
SKU:1043_1B
Regular price
500.00 ₪
Regular price
Sale price
500.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

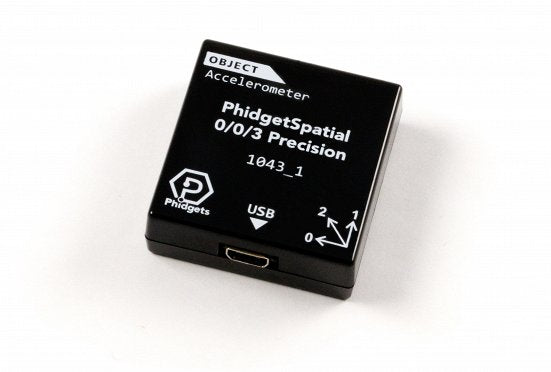

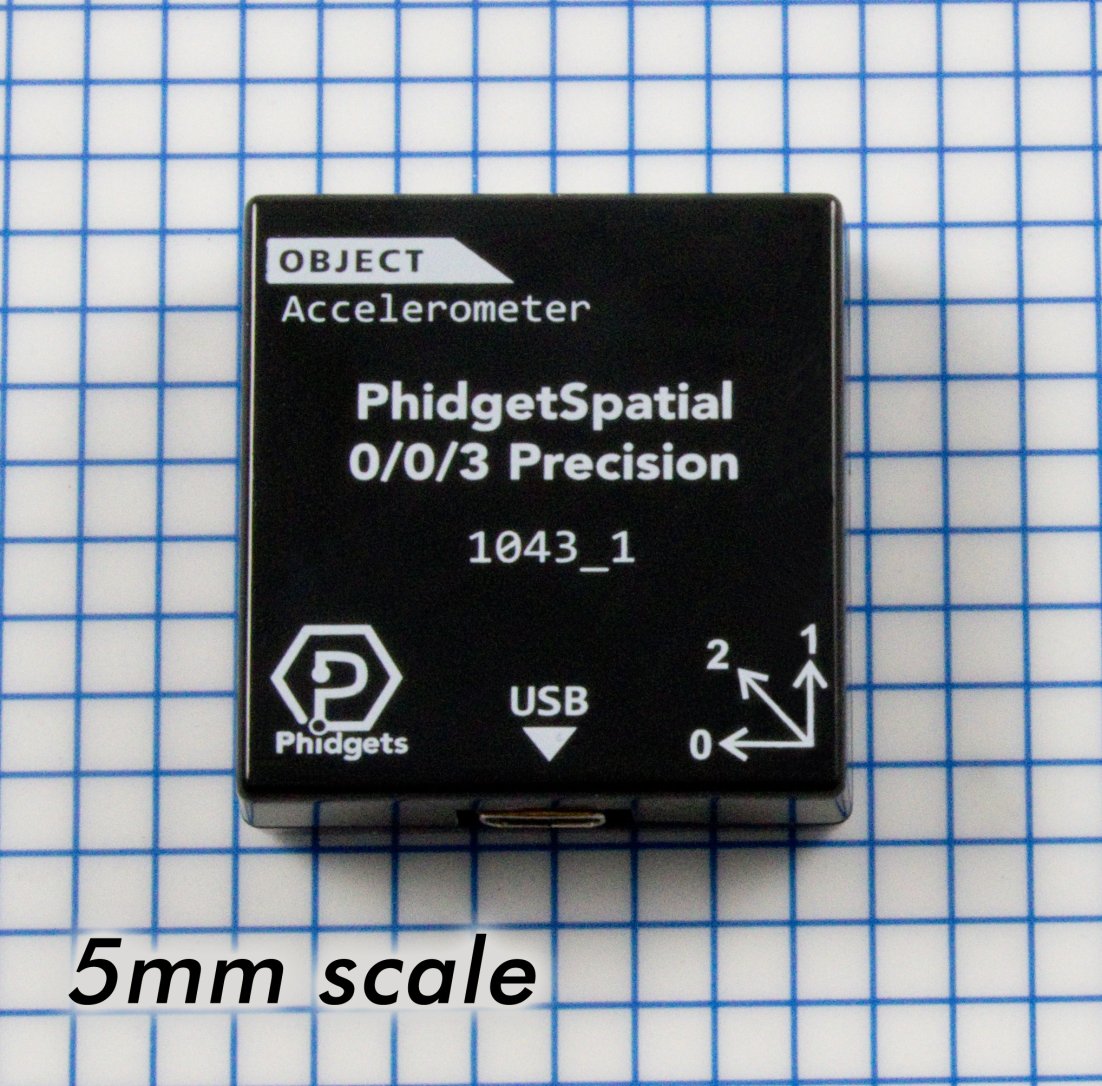

PhidgetSpatial Precision 0/0/3 (1043)
The PhidgetSpatial Precision 0/0/3 is a 3-axis accelerometer capable of measuring up to ±8g of acceleration on each axis, with very high precision when operating within ±2g.
The switch between high-precision and low-precision measurement modes is fully automatic and seamless, allowing accurate measurements across a wide range of motion without configuration.
Note: The 1043_1B has the same functionality as the 1043_0B, except it uses a different high-precision accelerometer chip.
Typical Applications
- Sensing tilt angle in remotely controlled vehicles
- Capturing motion data for research and analysis
- Detecting nearby movement or vibration
If high precision is not required, consider the 1041 PhidgetSpatial 0/0/3.
Accelerometer
- Acceleration Measurement Max ±2 g
- Acceleration Measurement Resolution 76.3 μg
- Acceleration Bandwidth 497 Hz
- Accelerometer White Noise σ 300 μg
- Accelerometer Minimum Drift σ 37 μg
- Optimal Averaging Period 103 s
Backup Accelerometer
- Acceleration Measurement Max ±8 g
- Acceleration Measurement Resolution 976.7 μg
- Accelerometer White Noise σ 2.5 mg
Board
- Controlled By USB (Mini-USB)
- API Object Name Accelerometer
- Current Consumption Max 35 mA
- Sampling Speed Min 1 s per sample
- Sampling Speed Max 1 ms per sample
- Sampling Speed Min (Webservice) 1 s per sample
- Sampling Speed Max (Webservice) 16 ms per sample
- Analog to Digital Converter Resolution 16 bit
- USB Voltage Min 4.4 V DC
- USB Voltage Max 5.3 V DC
- USB Speed Full Speed
- Operating Temperature Min -40 °C
- Operating Temperature Max 85 °C
Download the full product sheet:
Download Product Sheet, PDF
Warranty & Delivery
- Warranty 12 months
- Delivery time up to 10 business days
- Professional technical support
- Genuine Phidgets product
