Phidgets

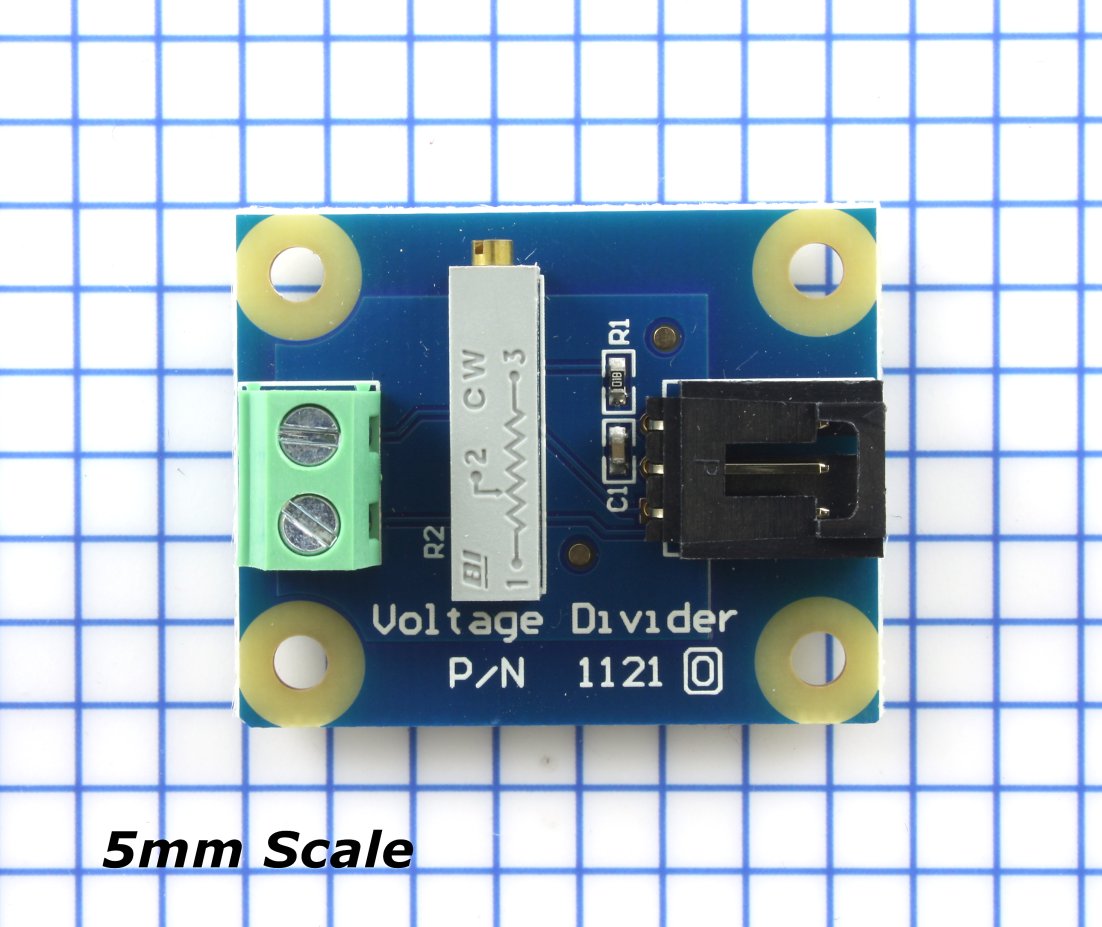

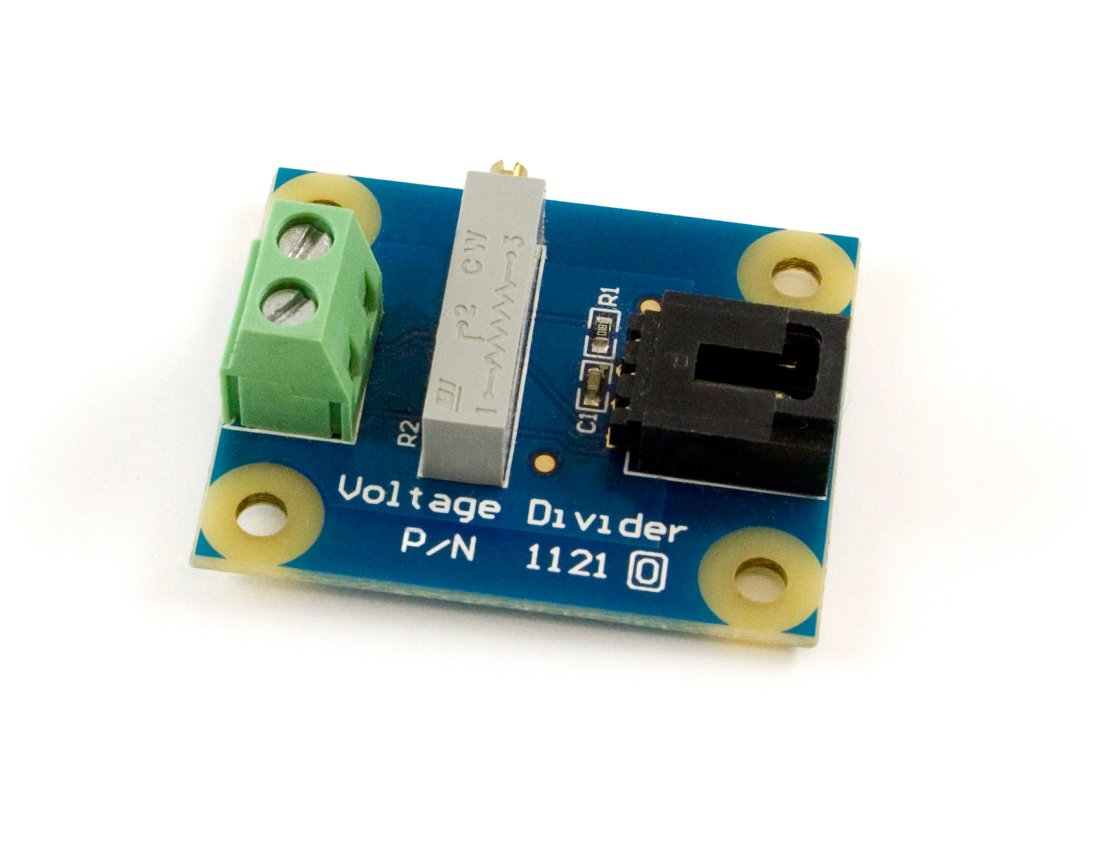

Voltage Divider (1121_0)

Voltage Divider (1121_0)

1121_0

49.00 ₪
79.00 ₪ 49.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

The 1121 provides an interface to non-Phidgets resistance sensors such as: Force-Sensing Resistors (FSR), light sensors, thermistors (heat sensors), and bend sensors.

The Voltage Divider eliminates the need to connect a resistor to an analog input by providing a high precision potentiometer. You can adjust the resistance by turning the trim pot on the side of the resistor.

Features

  • Quickly interface variable resistance sensors
  • Adjustable from 1 to 21 kOhms
  • Connects to a Phidgets VINT port or voltage input
  • Includes 60cm Phidget Cable

Sensor Properties

  • Sensor type: Resistance
  • Controlled by: VoltageRatio Input
  • Sensor output type: Ratiometric
  • Resistance range: 172 Ω to 1 MΩ

Electrical Properties

  • Current consumption max: 30 mA
  • Supply voltage range: 3 V DC to 5.3 V DC
  • Optimal measurement resistance min (@172Ω): 17.2 Ω
  • Optimal measurement resistance max (@172Ω): 1.7 kΩ
  • Optimal measurement resistance min (@1MΩ): 100 kΩ
  • Optimal measurement resistance max (@1MΩ): 10 MΩ
  • Load resistance max: 50 MΩ
  • Load resistance resolution: 1 %

Physical Properties

  • Recommended wire size: 16 – 26 AWG
  • Operating temperature range: -40 °C to 105 °C

The package includes:

  • 1134 – Switchable Voltage Divider
  • 3002 – 60cm Phidget Cable

Download the full product sheet:

PDF icon Download Product Sheet, PDF
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
