VINT Hub Phidget
VINT Hub Phidget
SKU:HUB0000_0
Couldn't load pickup availability

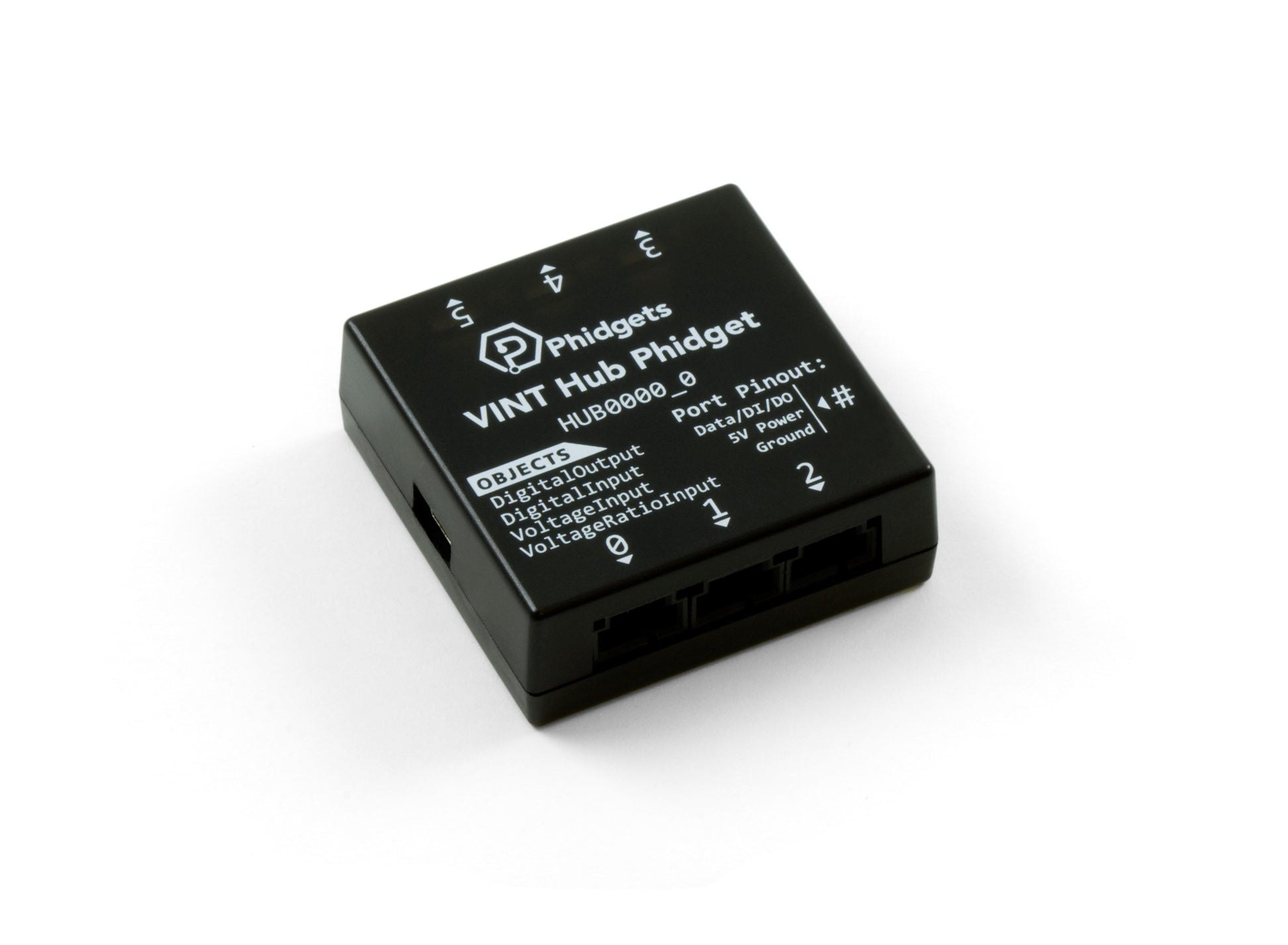

VINT Hub Phidget
The core of our product line, the USB VINT Hub has 6 VINT ports allowing for endless possibilities for USB sensing and control.
If you place an order with Phidgets, it’s very likely you’ll want a VINT Hub Phidget to tie it all together.
Six Versatile I/O Ports
With a VINT Hub Phidget, you can interface six devices to your computer through a single USB port. Each VINT port can perform one of four roles: Communicating with an intelligent VINT Device, reading a 0-5V Voltage or ratiometric sensor, acting as a digital output, or reading switches as a digital input. Each port has a power and ground pin, so you can also use the ports to gain access to the USB voltage supply directly.
Plug in one of our many VINT-enabled Phidgets that perform a wide variety of functions. Control motors and LEDs, measure temperature or motion, or build a large scale system with many inputs and outputs.
Easy to Use
VINT Devices are ‘plug and program’: automatically discovered by the Phidget API with the same ease of programming you’ve come to expect from Phidgets. Each VINT device has a full API with functions and events to make programming a snap.
Analog Sensor Compatible
Sometimes, you just need a few simple analog voltage sensors. Luckily, your collection of Phidget Analog Input sensors is not obsolete; each port on the USB VINT Hub can interface a 0-5V sensor. The VINT Port is backwards compatible with both ratiometric and non-ratiometric Phidget analog sensors.
Digital I/O Mode
In digital output mode, a VINT port can be used to drive LEDs, relays, digital circuits, and other simple electronics. Each port is PWM-enabled, allowing you to dim LEDs to a specific brightness.
Wire a switch or sensor contact directly into a VINT Port, and use the Digital Input mode to read the state of the switch.
If you need more than six inputs or outputs, you can expand by attaching a VINT I/O module. For example, there are VINT digital output modules with 16 outputs, allowing 96 digital outputs on a single VINT HUB Phidget!
Product Specifications
Board
- Controlled By USB (Mini-USB)
- Number of VINT Ports 6
Electrical Properties
- USB Voltage Min 4.5 V DC
- USB Voltage Max 5.3 V DC
- USB Speed High Speed
- Current Consumption Min 32.5 mA
- Available External Current 470 mA
Voltage Inputs
- Voltage Input Resolution * 16 bit
- Sensor Input Impedance 324 k?©
- Input Voltage Min (DC) 0 V DC
- Input Voltage Max (DC) 5 V DC
- Voltage Input Noise ?± 630 ?¼V DC
- Sampling Interval Max 60 s/sample
- Number of Voltage Inputs 6 (Shared)
- Sampling Interval Min 1 ms/sample
Digital Inputs
- Pull-up Resistance 124 k?©
- Low Voltage Max (True) 1 V DC
- High Voltage Min (False) 1.8 V DC
- Low Voltage Trigger Length Min 3 ms
- High Voltage Trigger Length Min 3 ms
- Digital Input Voltage Max 5.5 V DC
- Digital Input Type Switch (Active Low)
- Number of Digital Inputs 6 (Shared)
Digital Outputs
- Series Resistance 510 ?©
- Digital Output Available Current 8.1 mA
- Digital Output Voltage Min 0 V DC
- Digital Output Voltage Max 3.3 V DC
- PWM Frequency Max 50 kHz
- PWM Resolution 0.8 %
- Number of Digital Outputs 6 (Shared)
Physical Properties
- Operating Temperature Min -40 ?°C
- Operating Temperature Max 85 ?°C
*Voltage measured with a 10-bit ADC, oversampled to 16-bits.
Software Objects
- Channel Name API Channel Hub Port
- Hub Port – Digital Input Mode
- Digital Input DigitalInput 0 0 – 5
- Hub Port – Digital Output Mode
- Digital Output DigitalOutput 0 0 – 5
- Hub Port – Voltage Input Mode
- Voltage Input VoltageInput 0 0 – 5
- Hub Port – Voltage Ratio Mode
- Voltage Ratio Input VoltageRatioInput 0 0 – 5
- 6-Port USB VINT Hub Phidget
- VINT Hub Hub 0
Download the full product sheet:
Download Product Sheet, PDF
