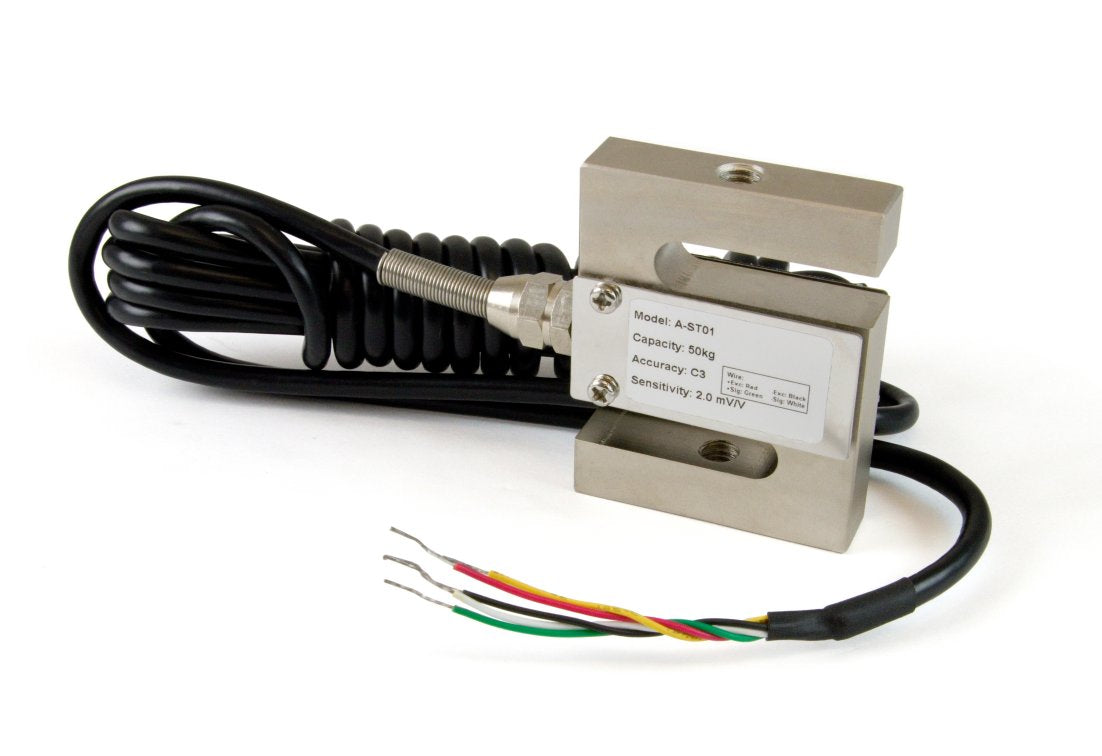

Steel S-Type Load Cell - 50kg (C3) (FRC4163_0)

Steel S-Type Load Cell - 50kg (C3) (FRC4163_0)

FRC4163_0

239.00 ₪
259.00 ₪ 239.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

This 50kg load cell measures tensile forces (e.g. hanging loads).

Load cells are used to measure weight or forces. They require a load cell interface to function.

Features

  • Measures up to 50 kilograms
  • C3 Grade - higher accuracy and better stability
  • Can be used in both tension and compression

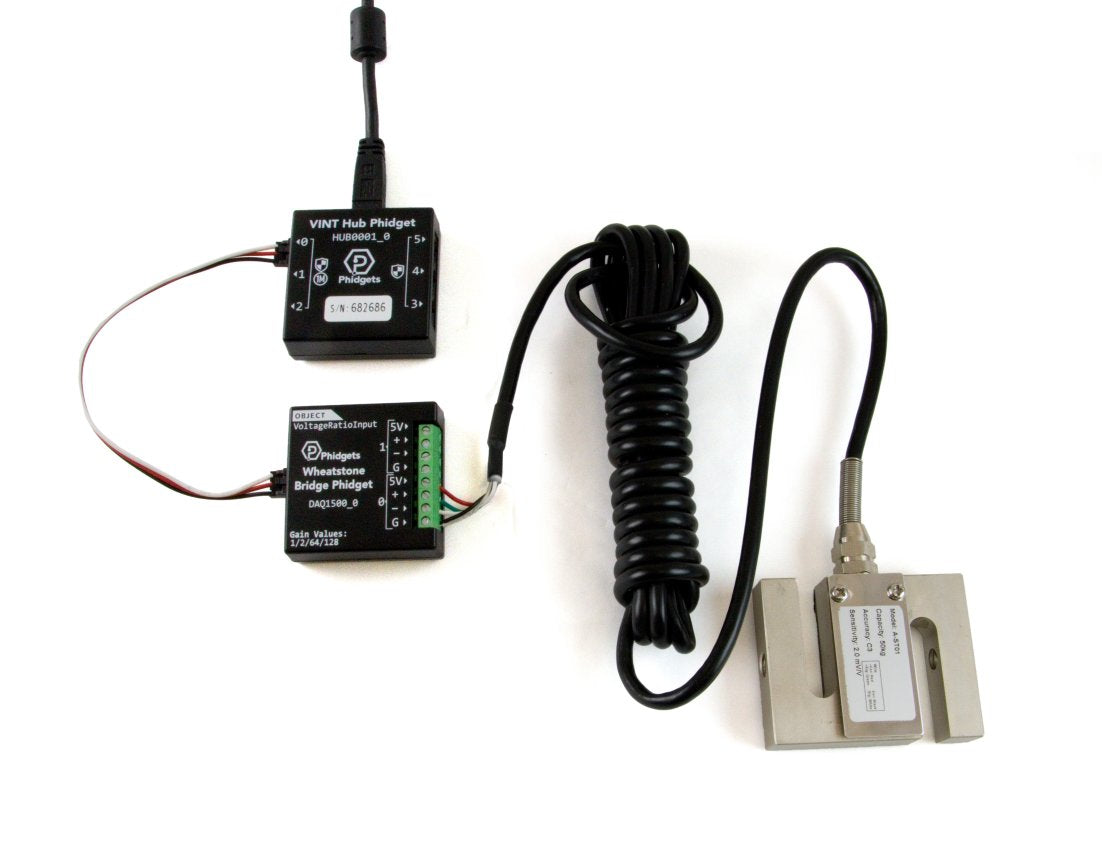

  • Works with all Phidget Load Cell Interfaces



Sensor Properties

  • Controlled By: Bridge Input
  • Sensor Type: S-Type Load Cell
  • Load Cell Accuracy Class: C3
  • Weight Capacity Max: 500 kg
  • Maximum Overload: 750 kg
  • Creep: 500 g/hr
  • Zero Balance: ± 7.5 kg
  • Cell Repeatability Error Max: ± 250 g
  • Cell Non-Linearity Max: 250 g
  • Cell Hysteresis Max: 250 g

Electrical Properties

  • Rated Output: 2 mV/V
  • Rated Output Error Max: ± 4 μV/V
  • Output Impedance: 350 Ω
  • Supply Voltage Max: 18 V DC

Physical Properties

  • Operating Temperature Min: -10 °C
  • Operating Temperature Max: 40 °C
  • Cable Length: 3 m
  • Material: Steel
  • Screw Thread Size: M12

Connection Information

  • +5V: Red to 5V
  • Positive Signal (+): Green to +
  • Negative Signal (-): White to -
  • Ground: Black to G
  • Ground: Yellow to G

Customs Information

  • Canadian HS Export Code: 8423.90.00
  • American HTS Import Code: 8423.90.10.00
  • Country of Origin: CN (China)

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty 12 months
  • Delivery time up to 10 business days
  • Professional technical support
  • Genuine product
