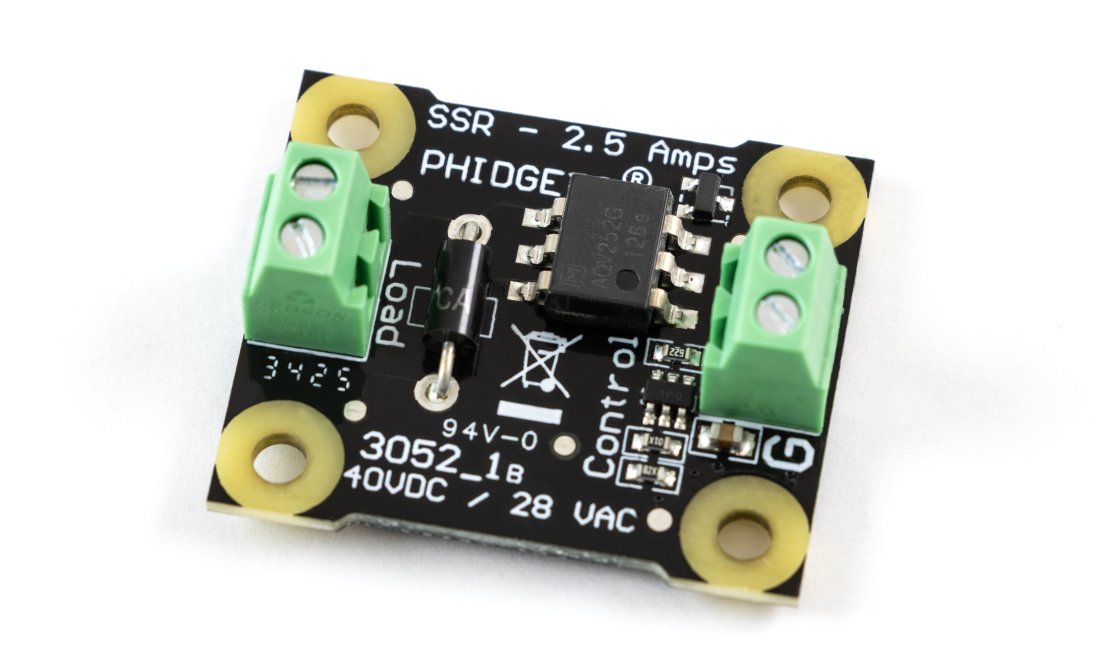

SSR Relay Board 2.5A (3052_1)
SSR Relay Board 2.5A (3052_1)
SKU:3052_1
Couldn't load pickup availability
Solid State Relays, or SSRs, are devices designed to operate like standard relays but without mechanical motion. By simply providing a small voltage to the control side of the circuit, you can open or close a higher powered circuit on the load side.
The SSR Board is safe to use with sensitive control devices like microprocessors, and will not damage a Phidget device or your PC. Optoisolation between the control inputs and outputs of the SSR in the form of an LED paired with a set of optically-controlled MOSFETs provides protection from output to input. An on-board diode across the relay output protects the board from static electricity and surges from inductive loads.
Features
- Control one solid-state relay
- AC Switching up to 28V and 2.5 Amps
- DC Switching up to 40V and 2.5 Amps
- Controlled by a logic-level digital output
This SSR board can be controlled with 5V digital outputs. For more details, see the Connection & Compatibility tab.
Product Specifications
Electrical Properties
- Relay Output Type MOSFET
- Isolation Method Photoelectric
- Dielectric Strength 5.3 kV AC
- Control Voltage Min 3 V DC
- Control Voltage Max 30 V DC
- Control Current 10 mA
- Load Voltage Max (DC) 40 V DC
- Load Voltage Max (AC) 28 V AC
- Load Current Max (AC) (per channel) 9 A
- Load Current Max (DC) (per channel) 9 A
- Turn-on Time Max 1.9 ms
- Turn-off Time Max 0.16 ms
- Contact Resistance Max 50 mО©
- Switching Speed Max 300 cps
Physical Properties
- Recommended Wire Size (Control) 16 – 26 AWG
- Recommended Wire Size (Load) 12 – 24 AWG
- Operating Temperature Min -40 В°C
- Operating Temperature Max 100 В°C
Download the full product sheet:
Download Product Sheet, PDF
