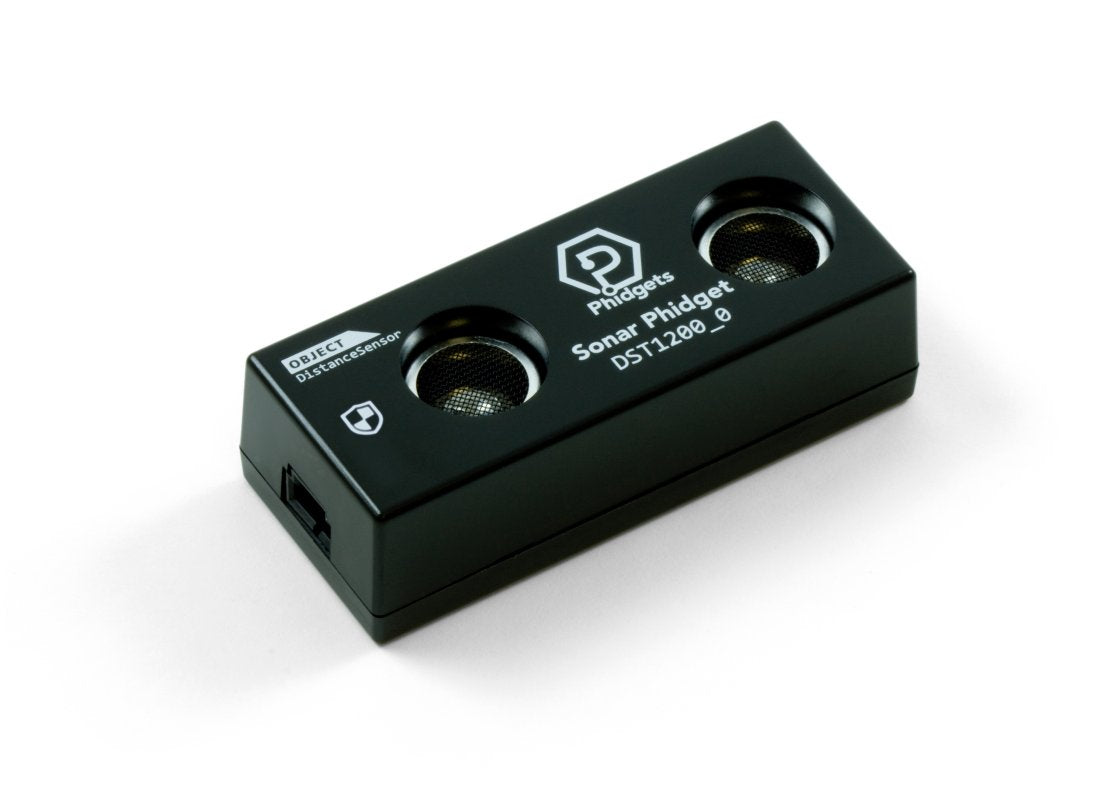

Sonar Phidget (DST1200_0)
Sonar Phidget (DST1200_0)
SKU:DST1200_0
Regular price
119.00 ₪
Regular price
139.00 ₪
Sale price
119.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The DST1200 accurately measures distances between 40mm and ~10m. Use this Phidget for motion sensing, object detection, or spatial awareness. This Phidget connects to your computer through a VINT Hub.
Features
- Measure the distance of objects between 40mm and 10m from the sensor
- Distance is measured using ultrasonic waves reflected off objects
- Detect up to 8 reflections, strongest reflection will be reported by default
- Retrieve data as often as every 100 milliseconds
- Optional quiet mode to make the sonar pulse less conspicuous
Product Specifications
Sensor Properties
| Sensor Type | Infrared (Time-of-Flight) |
|---|---|
| Controlled By | VINT |
| Measurement Distance Min | 4 mm |
| Measurement Distance Max | * 170 mm |
| Measurement Distance Resolution | 1 mm |
| Measurement Distance Noise | 3 mm |
Distance Sensor
| Sampling Interval Max | 60 s/sample |
|---|---|
| Sampling Interval Min | 10 ms/sample |
Electrical Properties
| Current Consumption Max | 4 mA |
|---|---|
| Current Consumption Min | 20 μA |
Physical Properties
| Operating Temperature Min | -40 °C |
|---|---|
| Operating Temperature Max | 85 °C |
* – Maximum distance depends on the reflectivity of the surface of the object. Typical results are around 170mm, but could be as low as 100mm for some surfaces. The “200mm” listed on the enclosure is incorrect.
Download the full product sheet:
Download Product Sheet, PDF
