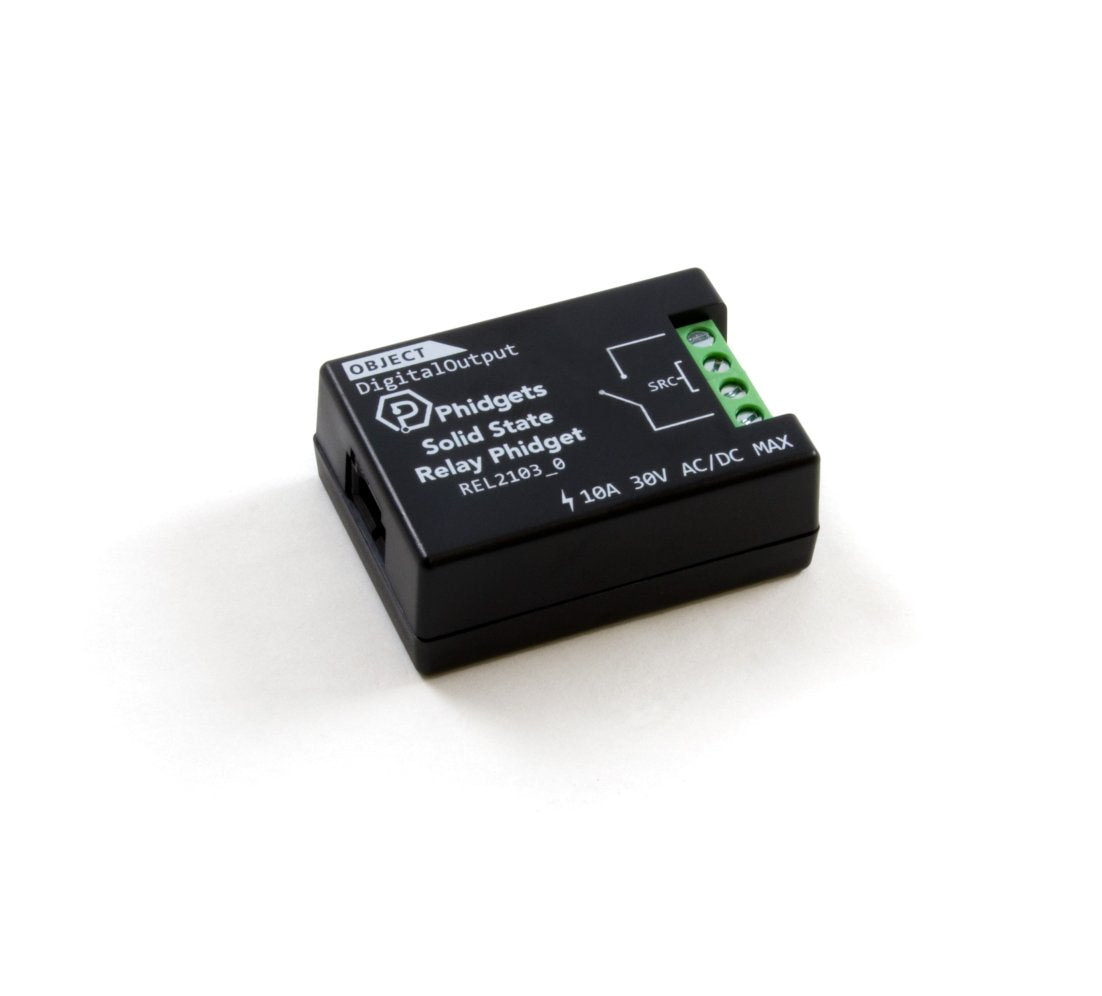

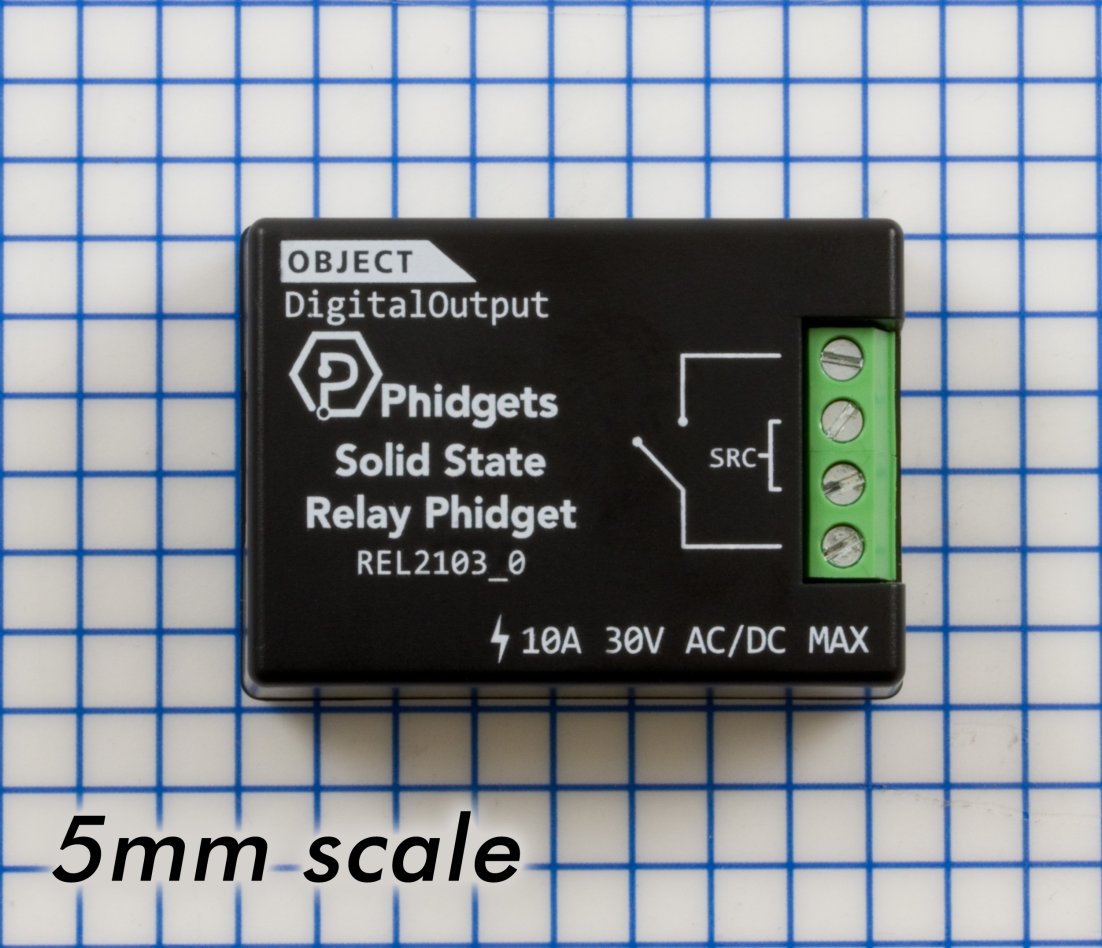

Solid State Relay Phidget (REL2103_0)
Solid State Relay Phidget (REL2103_0)
SKU:REL2103_0
Couldn't load pickup availability
The Solid State Relay Phidget (REL2103_0) offers reliable, high-speed power control for AC or DC electrical loads using a VINT Hub connection.
Engineered as a long-lasting alternative to mechanical relays, this solid-state module operates silently without moving parts or contact degradation. Capable of switching currents up to 10A at voltages up to 30V AC or DC, it features built-in VINT isolation to safeguard the control circuit, VINT Hub, and host computer against voltage spikes from the load side.
Features:
- Switches up to 10A continuous AC or DC load current
- Supports control voltages up to 30V maximum
- Solid-state design ensures rapid response time, silent operation, and long service life
- Isolated VINT port protects upstream control electronics from power load transients

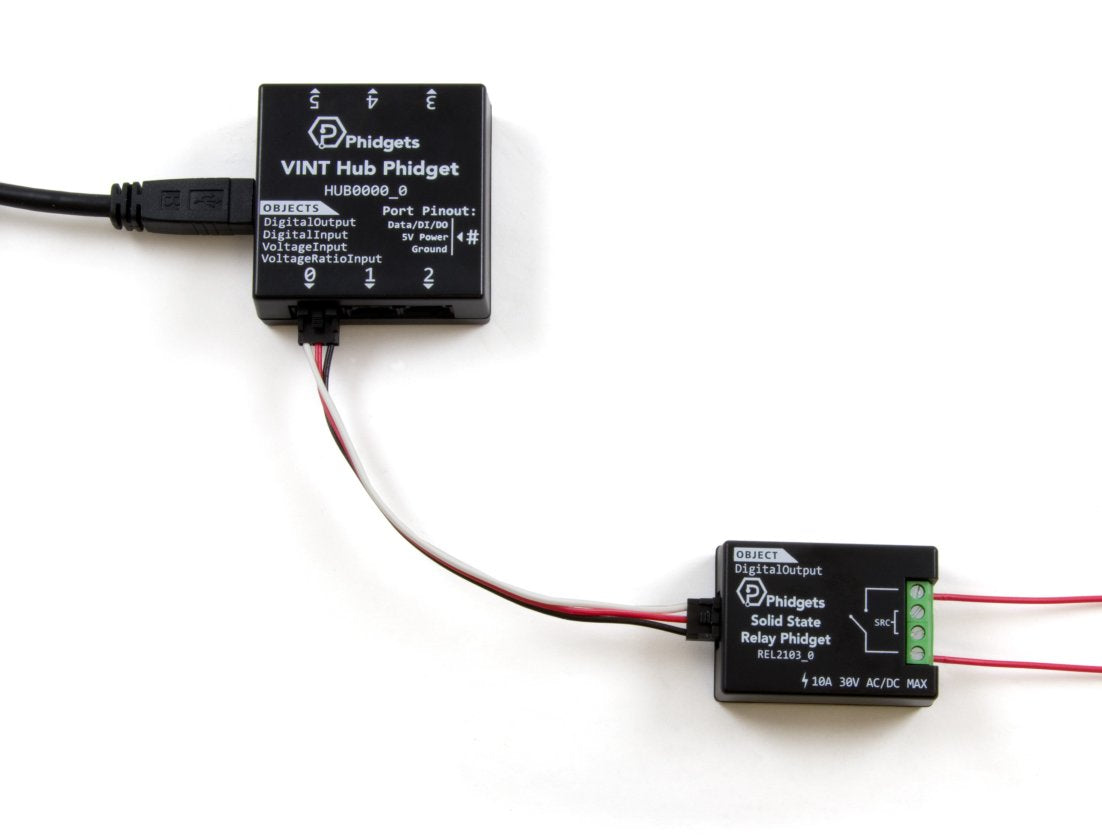

- Plugs directly into any VINT Hub port via standard Phidget cables
Switching & Electrical Specifications
- Relay Type: Solid State Relay (SSR)
- Max Load Current: 10 A AC or DC
- Max Load Voltage: 30 V AC or DC
- Interface: VINT Port
- Isolation: VINT Port Galvanic Electrical Isolation
The package includes:
- Solid State Relay Phidget (REL2103_0)
Controlled programmatically using the DigitalOutput class via the Phidget22 API over a connected VINT Hub.
- API Object Class: DigitalOutput
- OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, LabVIEW, and more
Download technical documentation and drawing files:
Download Product Sheet & Mechanical Drawing, PDF
