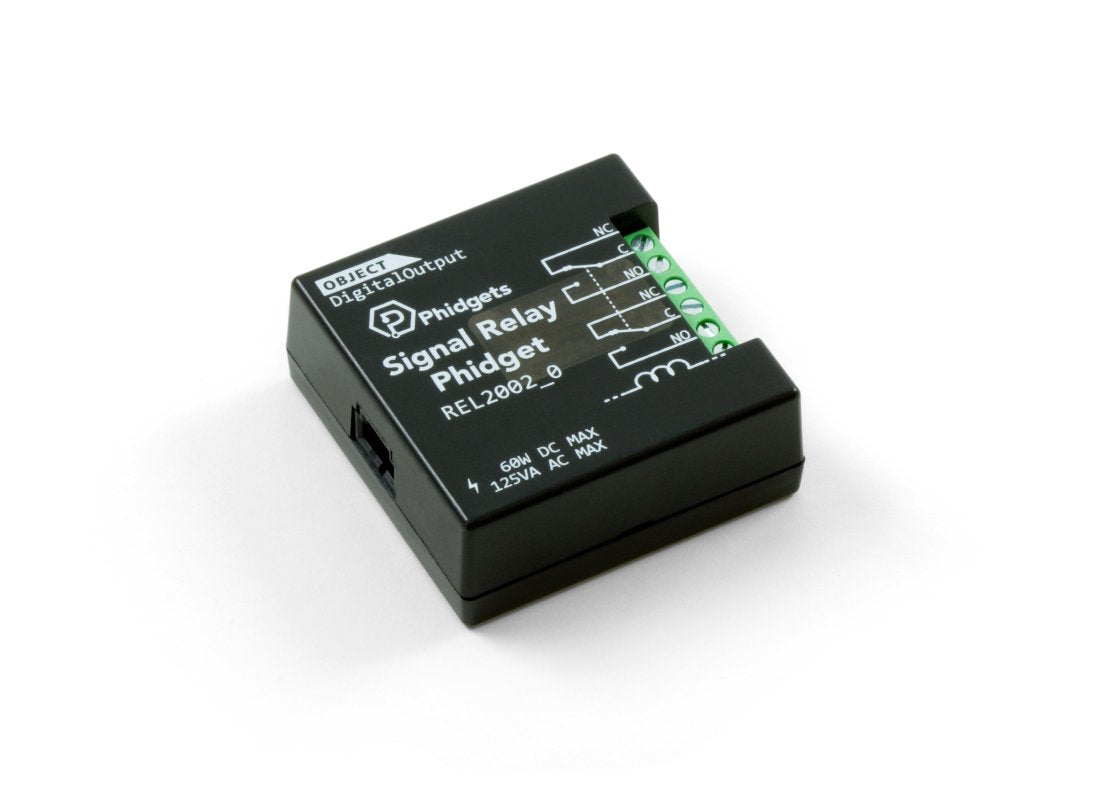

Signal Relay Phidget (REL2002_0)

Signal Relay Phidget (REL2002_0)

REL2002_0

49.00 ₪
49.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

    The Signal Relay Phidget is a mechanical relay board designed to switch signals.

    It includes one DPDT mechanical relay capable of switching AC or DC signals. While typical mechanical relay boards are unable to switch signals due to an oxide buildup on the contacts, this product excels at switching both signals and low-power applications.

    The Signal Relay Phidget connects to your computer through a VINT Hub Phidget.


    Features

    • Control two signals or circuits through one DPDT mechanical relay
    • Rated for 60W of DC power or 125VA of AC Power
    • For DC applications, switch up to 120V or 2A (total power below 60W)
    • For AC applications, switch up to 250V or 2A (total power below 125VA)

    Board

    • Controlled By: USB (Mini-USB)
    • API Object Name: DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput
    • USB Voltage Range: 4.6 – 5.5 V DC
    • Current Consumption: 13 mA – 500 mA
    • Available External Current: 487 mA
    • Recommended Wire Size: 16 – 26 AWG
    • USB Speed: Full Speed
    • Operating Temperature: 0 °C to 70 °C

    Voltage Inputs

    • Number: 8
    • Resolution: 10 bit
    • Input Impedance: 900 kΩ
    • Voltage Range: 0 – 5 V DC
    • 5V Reference Error Max: 0.5 %
    • Update Rate: 1 – 1000 samples/s (4 channels), 1 – 500 samples/s (8 channels), 62.5 samples/s (WebService)

    Digital Inputs

    • Number: 8
    • Pull-up Resistance: 15 kΩ
    • Low Voltage Max (True): 900 mV DC
    • High Voltage Min (False): 4.2 V DC
    • Low Voltage Trigger Length Min: 4 ms
    • High Voltage Trigger Length Min: 15 ms
    • Voltage Max: ± 15 V DC
    • Update Rate: 125 samples/s

    Digital Outputs

    • Number: 8
    • Series Resistance: 300 Ω
    • Output Current Max: 16 mA
    • Voltage Range: 0 – 5 V DC

    Download the full product sheet:

    PDF icon Download Product Sheet, PDF
    • Warranty: 12 months
    • Delivery time: up to 10 business days
    • Professional customer service, fast delivery, attractive pricing
    • Genuine Phidgets product
