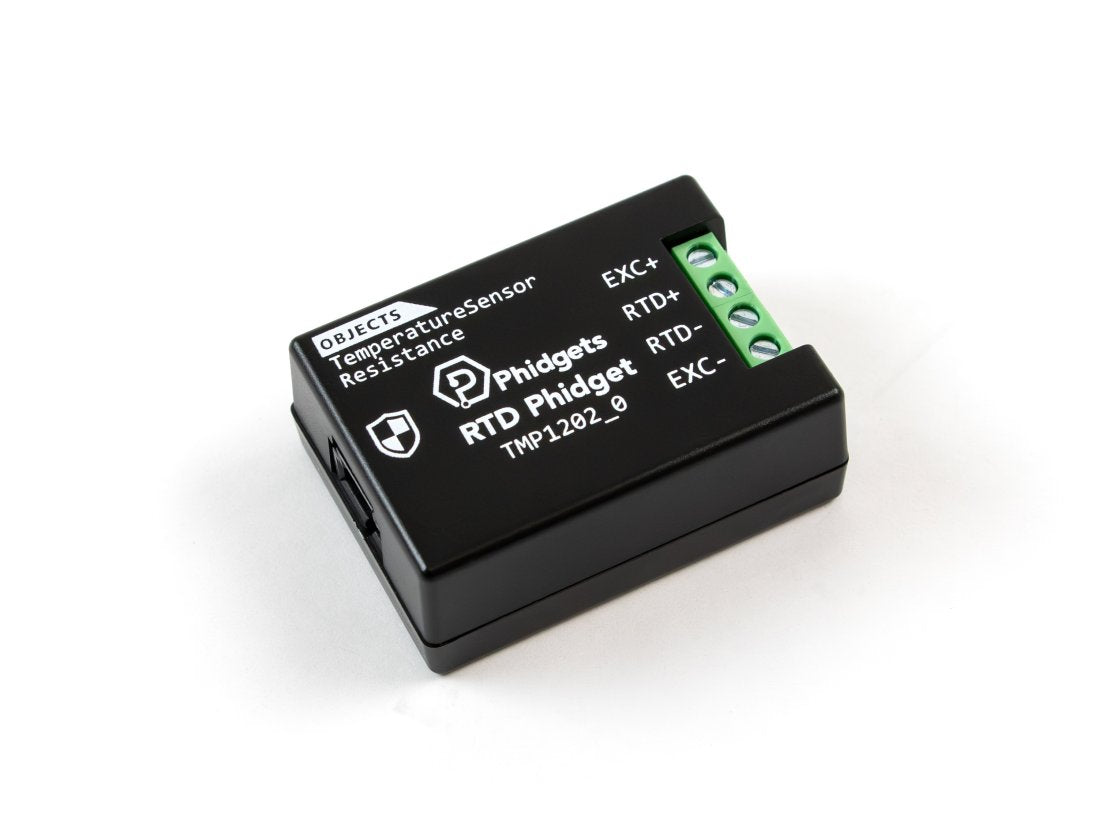

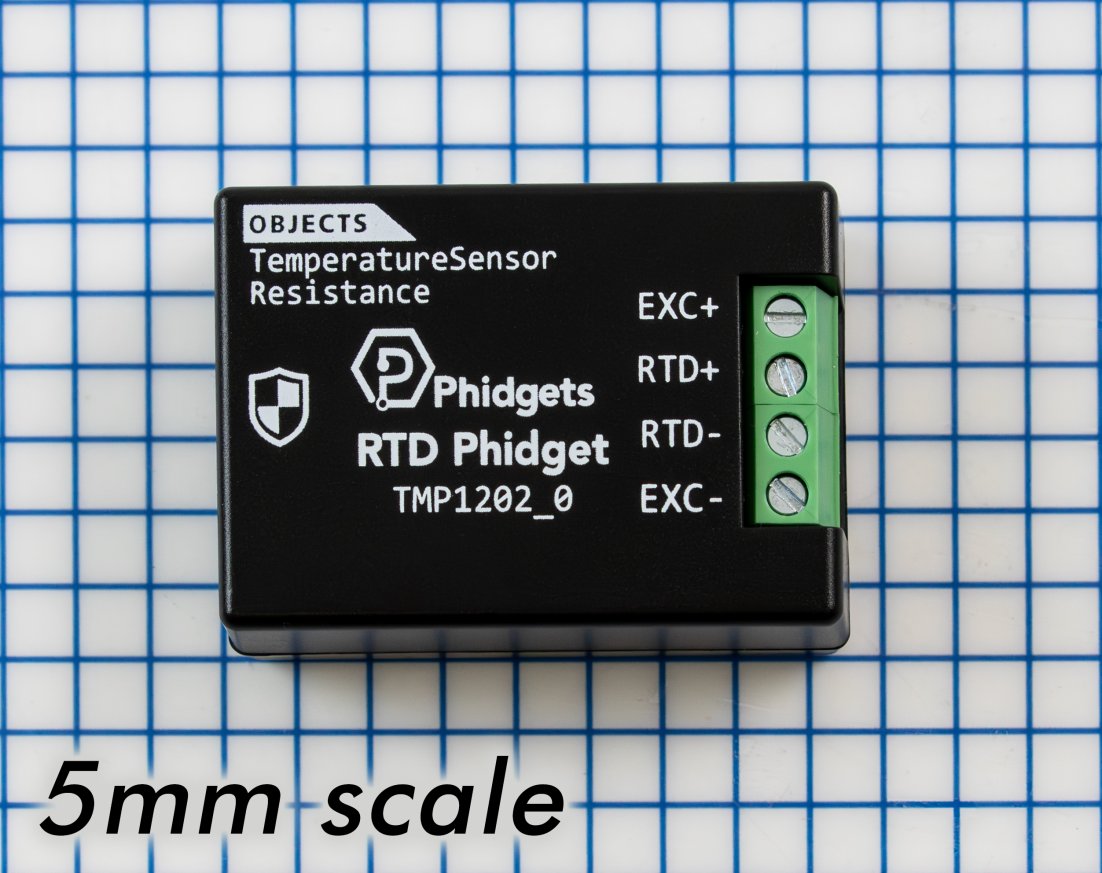

RTD Phidget (TMP1202_0)

RTD Phidget (TMP1202_0)

TMP1202_0

209.00 ₪
239.00 ₪ 209.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

This RTD interface offers improved noise performance and has a maximum data rate of 3.33 Hz.

The RTD Phidget allows you to precisely measure temperature using RTDs and other resistance-based sensors.

A resistance temperature detector (RTD) measures subtle temperature changes using a resistance of the element made of a pure metal (usually platinum). The resistance value will change in a precise and repeatable way.

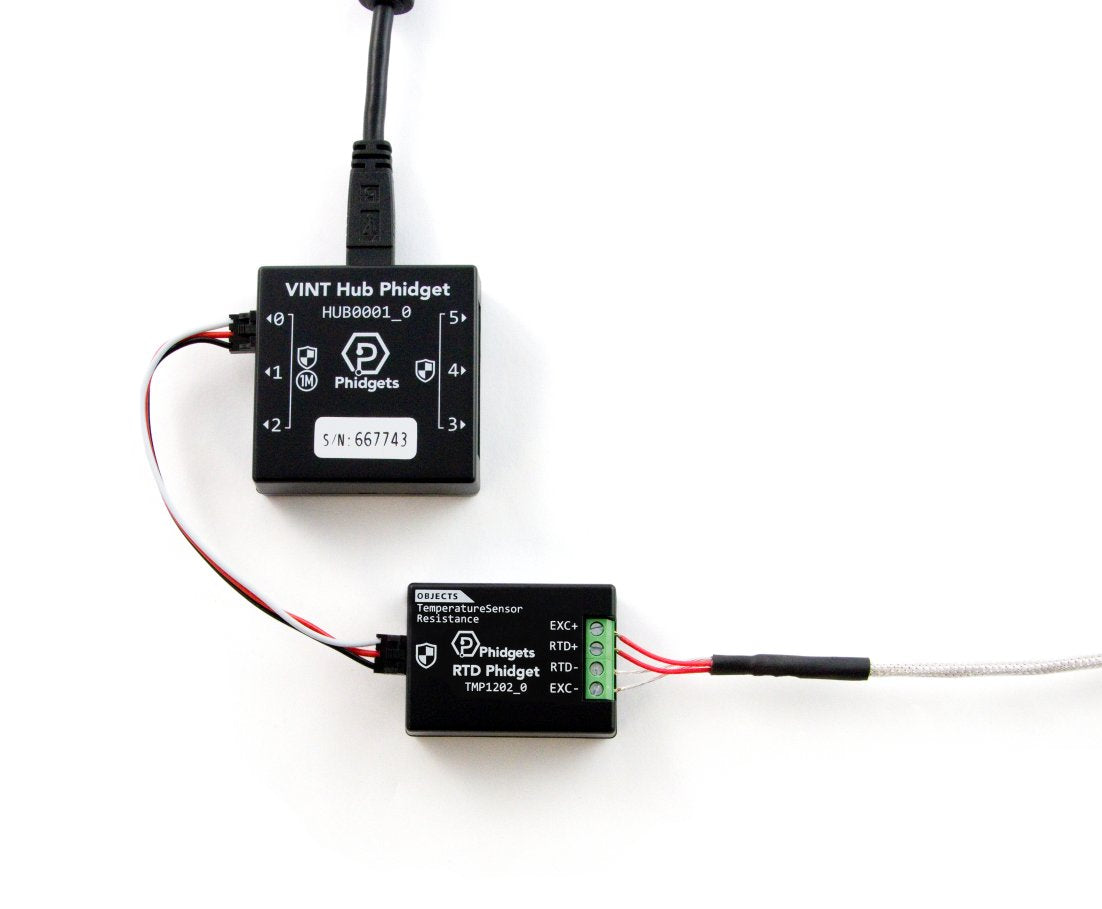

The RTD Phidget measures these subtle resistance changes, so you can get the most accurate temperature measurements. This Phidget connects to your computer through a VINT Hub.

Features

  • Connect one resistance temperature detector (RTD) probe
  • Select the number of wires (2, 3, or 4) and the RTD type via software
  • The adapter does all the math- sampled temperature in degrees Celsius
  • Read other resistive sensors, with data in ohms

Product Specifications

Board Properties

  • Controlled By VINT

Resistance Input

  • Maximum Measurable Resistance 50 k

RTD Input

  • Temperature Error Max 0.2 °C
  • RTD Current Max 62 ¼A
  • Sampling Interval Min 250 ms/sample
  • Sampling Interval Max 60 s/sample

Electrical Properties

  • Current Consumption Min 17 ¼A
  • Current Consumption Max 4 mA

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
