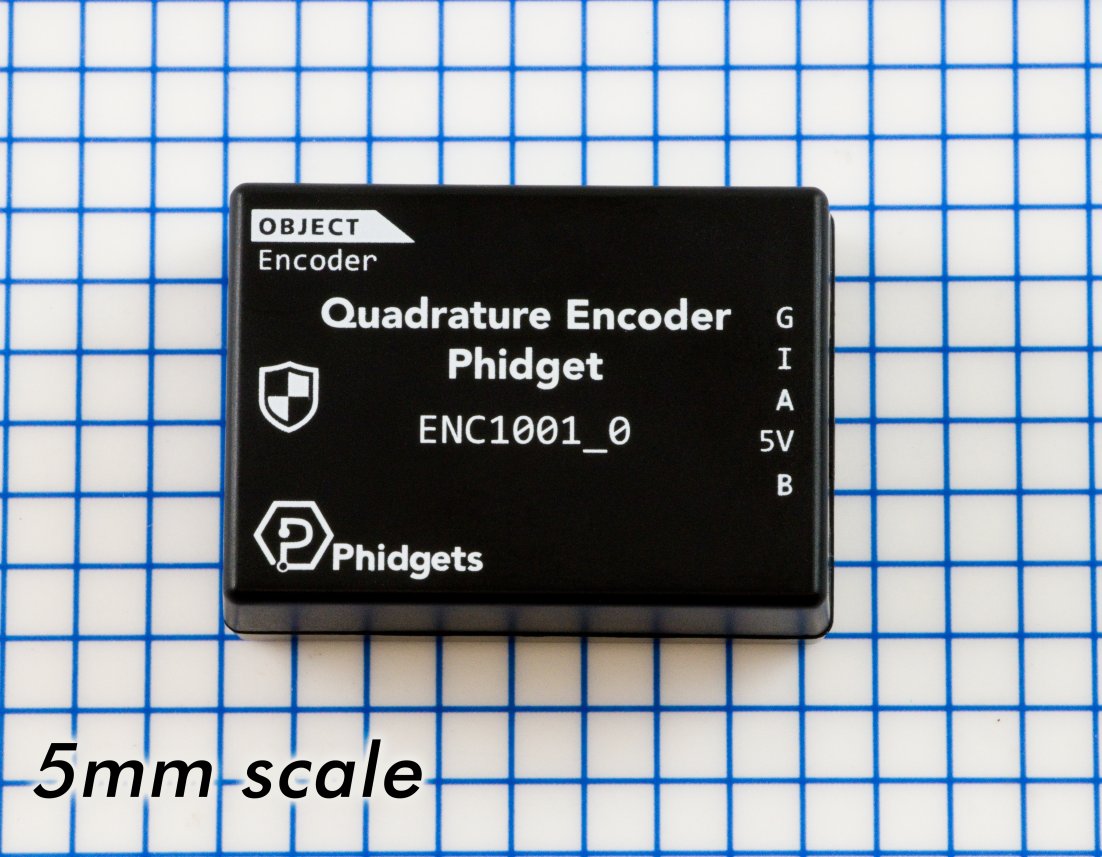

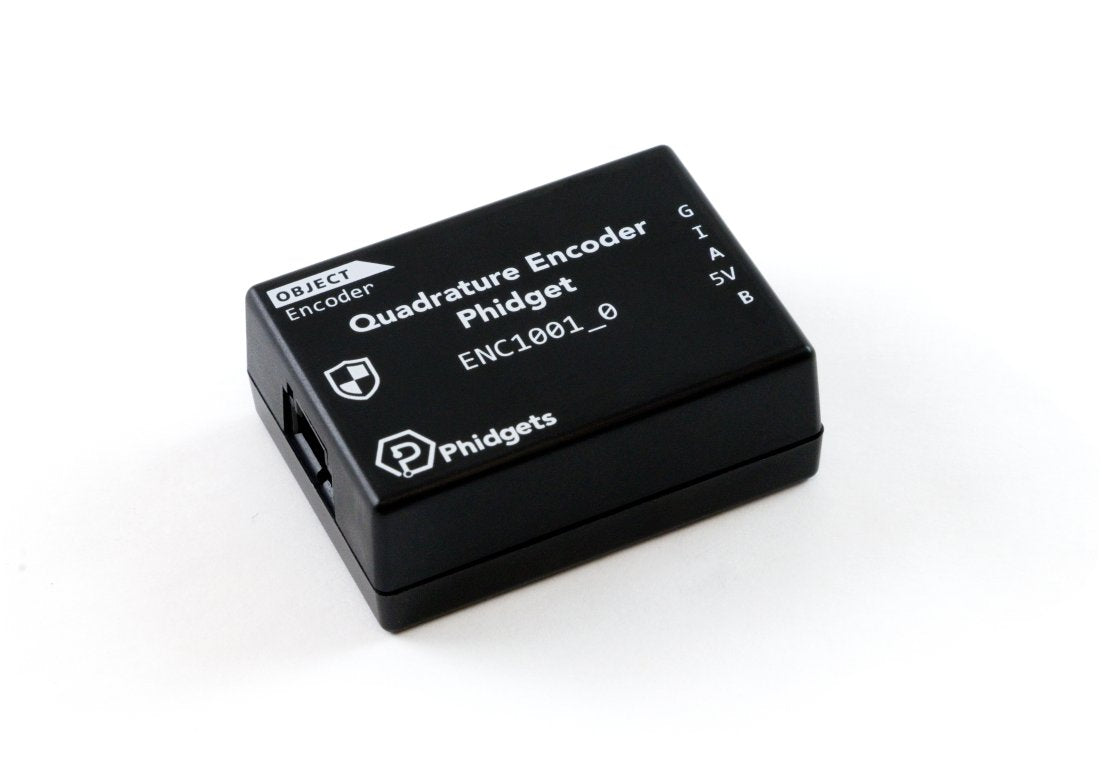

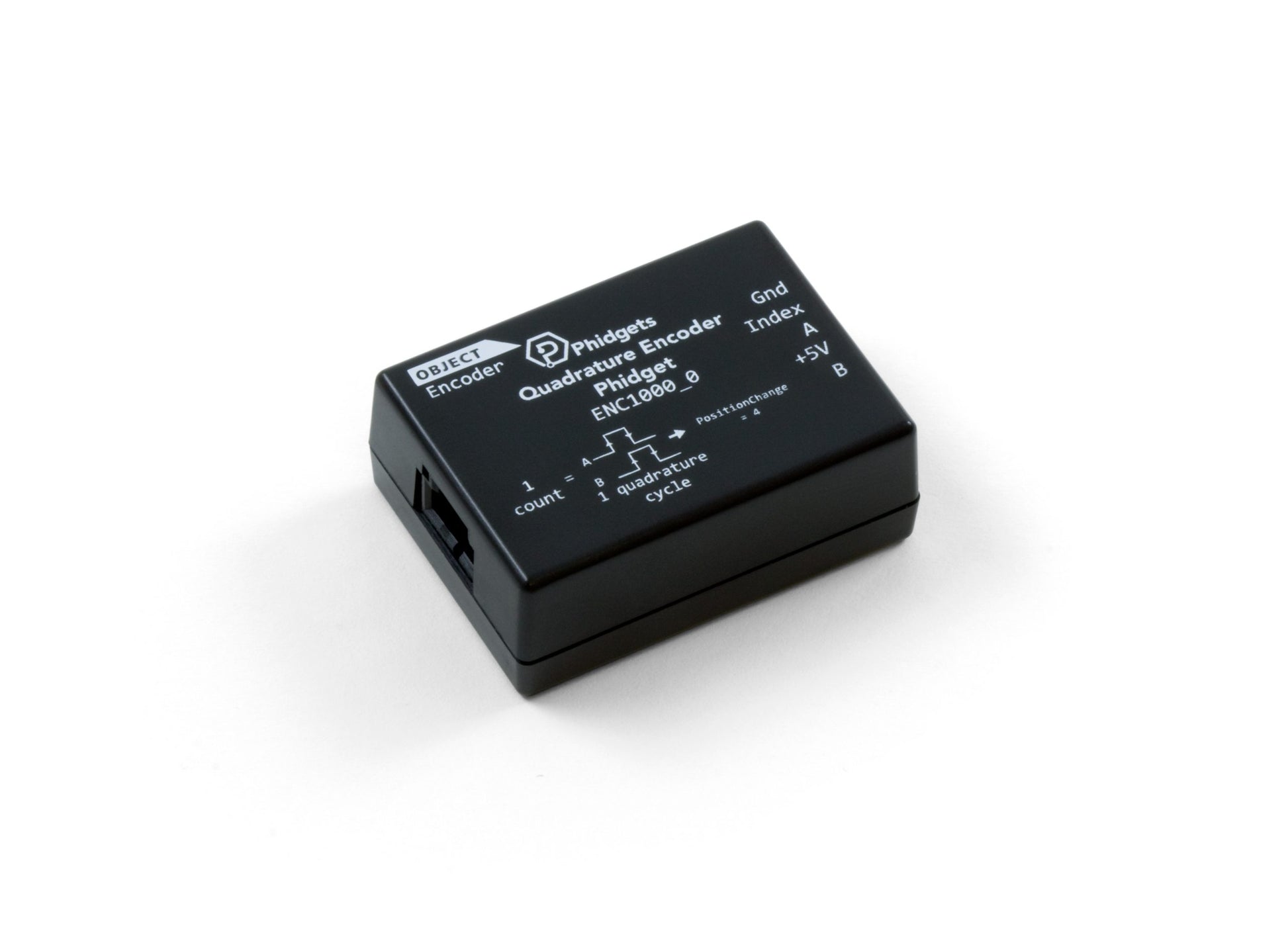

Quadrature Encoder Phidget (ENC1001_0)

Quadrature Encoder Phidget (ENC1001_0)

ENC1001_0

99.00 ₪
119.00 ₪ 99.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

The ENC1001 interfaces with any 5V quadrature encoder. A quadrature encoder is the most commonly used feedback device for a DC or stepper motor. With an encoder, you can keep track of the rotation angle of your motor, which then allows you to control the position and velocity in your code. This Phidget connects to your computer through a VINT Hub.

Features

  • Works with all 0-5V push-pull quadrature encoders
  • Read at speeds of up to 250,000 quadrature cycles per second
  • Supports data rates of up to 1000 Hz
  • Save power by disabling the encoder output when not in use

Product Specifications

Board Properties

  • Controlled By VINT

Encoder Interface

  • Number of Encoder Inputs 1
  • Count Rate Max 400000 pulses/s
  • Encoder Interface Resolution x4
  • Time Resolution 1 μs
  • Encoder Input Low Voltage Max 2.4 V DC
  • Encoder Input High Voltage Min 2.6 V DC
  • Sampling Interval Min 20 ms/sample
  • Sampling Interval Max 1 s/sample
  • Pull-up Resistance (Open Collector) 2.2 kΩ or 10 kΩ
  • Pull-down Resistance (Line Driver) 2.2 kΩ or 10 kΩ

Electrical Properties

  • Current Consumption Min (unconfigured) 24.6 μA
  • Current Consumption Max encoder current + 4.2 mA

Physical Properties

  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
