PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8 (1203_2)
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8 (1203_2)
SKU:1203_2
Couldn't load pickup availability

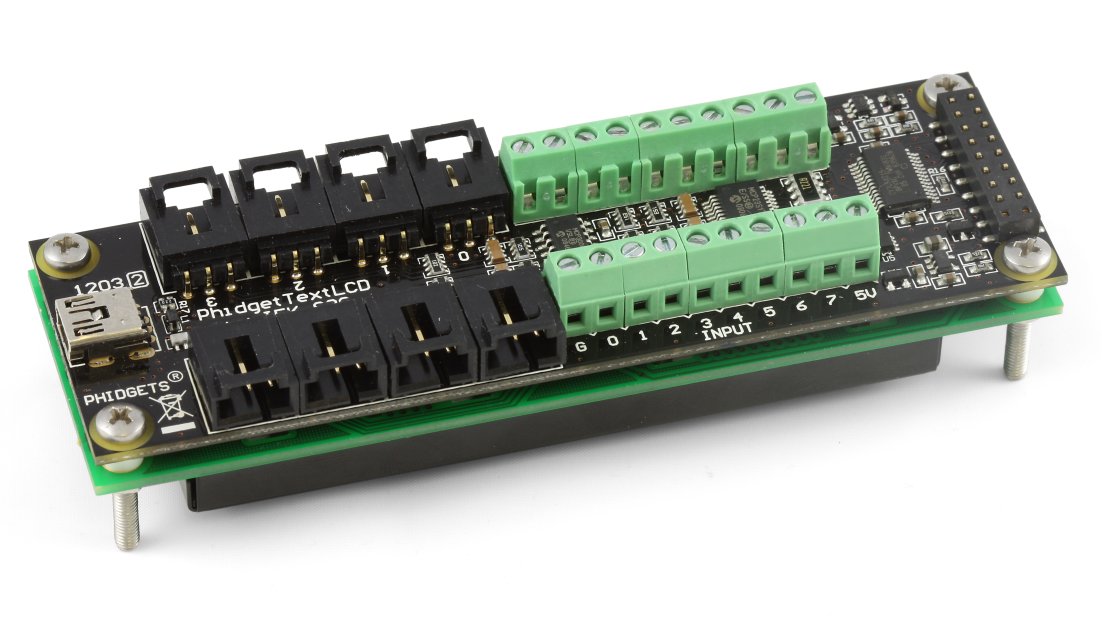

The PhidgetTextLCD 20X2 White with Integrated PhidgetInterfaceKit 8/8/8 (1203_2) combines a 2-line by 20-character white backlit LCD display with a full-featured 8/8/8 InterfaceKit on a single USB board.
Designed as a drop-in replacement for legacy installations and supporting Phidget21 libraries, this versatile board allows you to display custom text messages while simultaneously acquiring analog sensor data and controlling digital input/output devices over a single USB connection.
Features:
- 2x20 Character text LCD screen with white backlight
- Software-adjustable screen backlight brightness and contrast

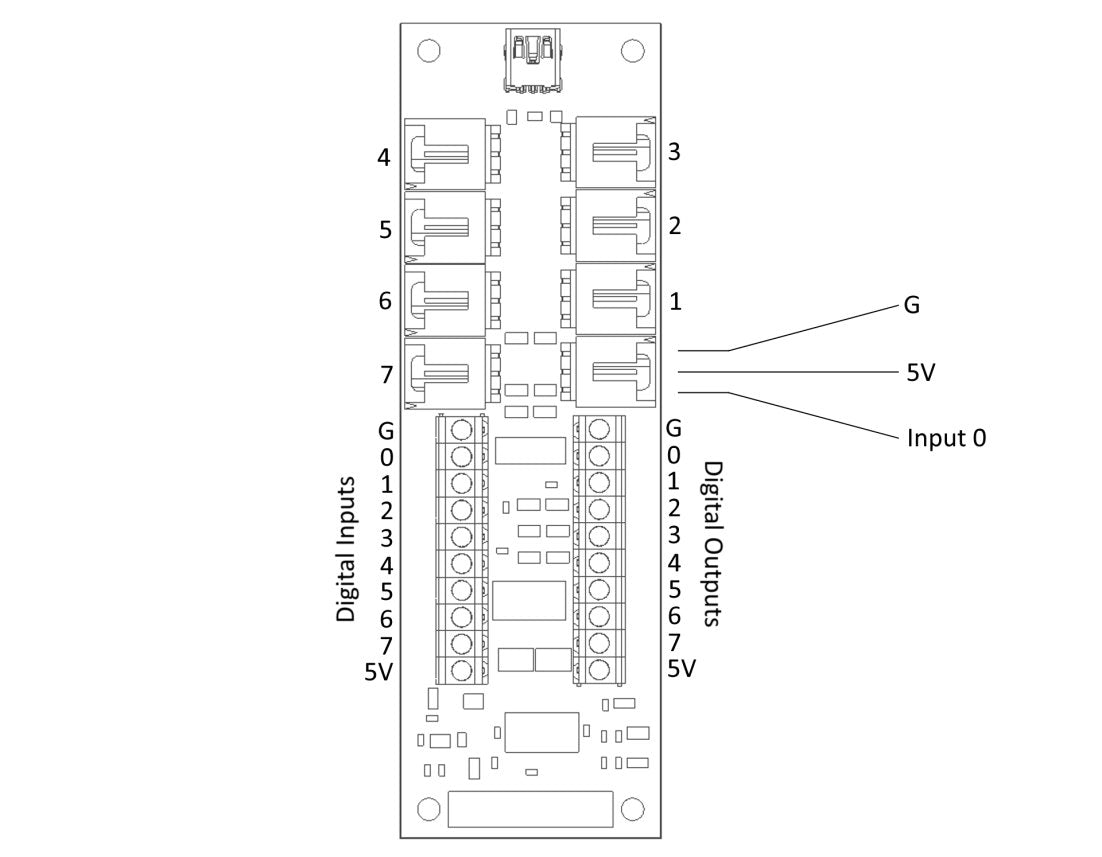

- 8 Analog Inputs to measure 0–5V signals from various analog sensors
- 8 Digital Inputs with hardware filtering to eliminate false triggers from electrical noise
- 8 Digital Outputs capable of driving LEDs, solid-state relays, and CMOS circuits
- Direct USB connection for simple communication and power

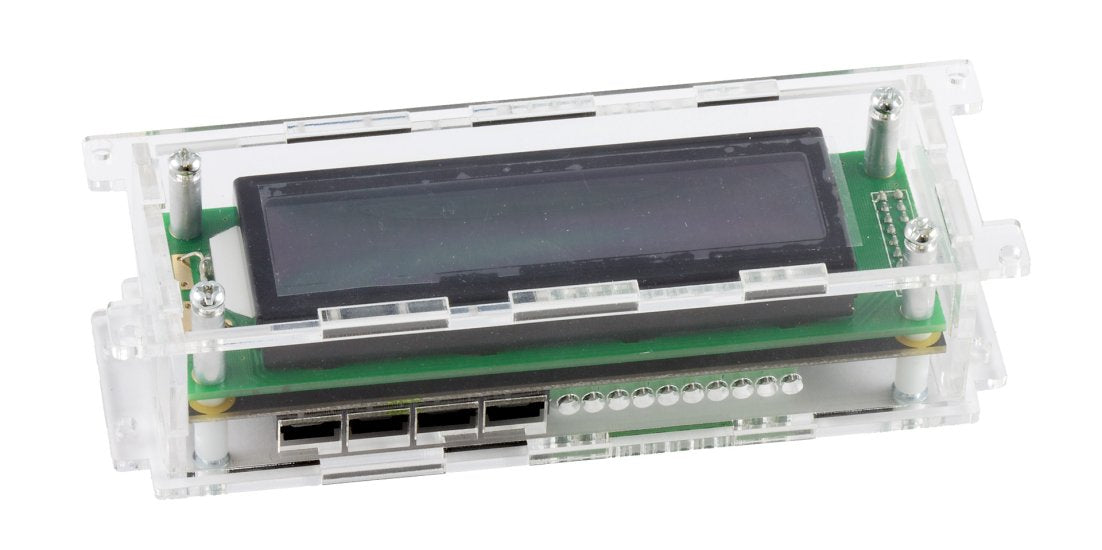

- Mounting hardware included for easy enclosure integration
Physical Properties & Specifications
- Display Type: Character LCD (2 lines x 20 characters)
- Backlight Color: White (Adjustable contrast & brightness)
- Analog Inputs: 8 channels (0–5V DC)
- Digital Inputs: 8 channels (Filtered against electrical noise)
- Digital Outputs: 8 channels (CMOS signal levels)
- Host Interface: USB Mini-B
- Legacy Support: Phidget21 API compatible
The package includes:
- PhidgetTextLCD 20X2 White with Integrated PhidgetInterfaceKit 8/8/8 (1203_2)
- Mounting hardware set
Fully supported by legacy Phidget21 libraries, making it an ideal drop-in replacement for existing software setups.
- API Object Classes: TextLCD / InterfaceKit
- OS Support: Windows, macOS, Linux
- Languages: C/C++, C#, Java, Python, LabVIEW, and more
Download technical documentation and drawing files:
Download Product Sheet & Mechanical Drawing, PDF
