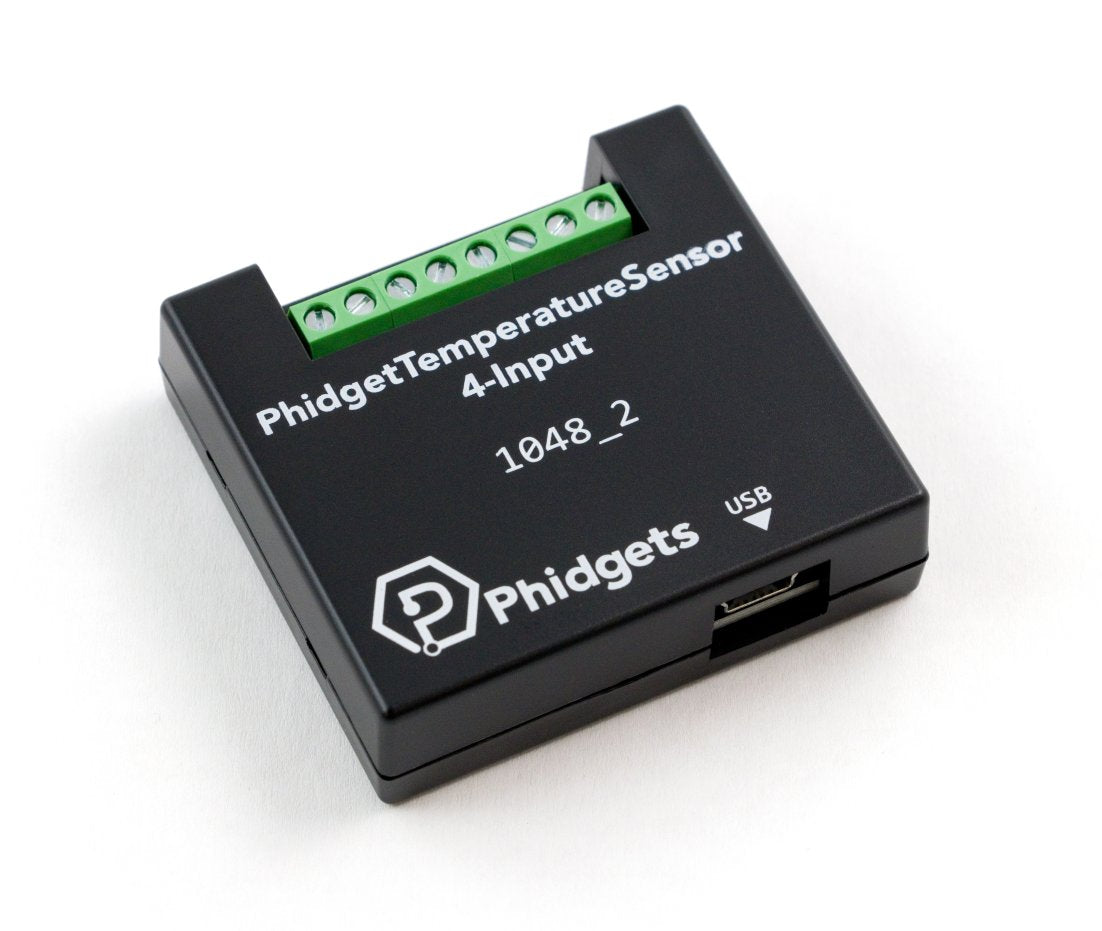

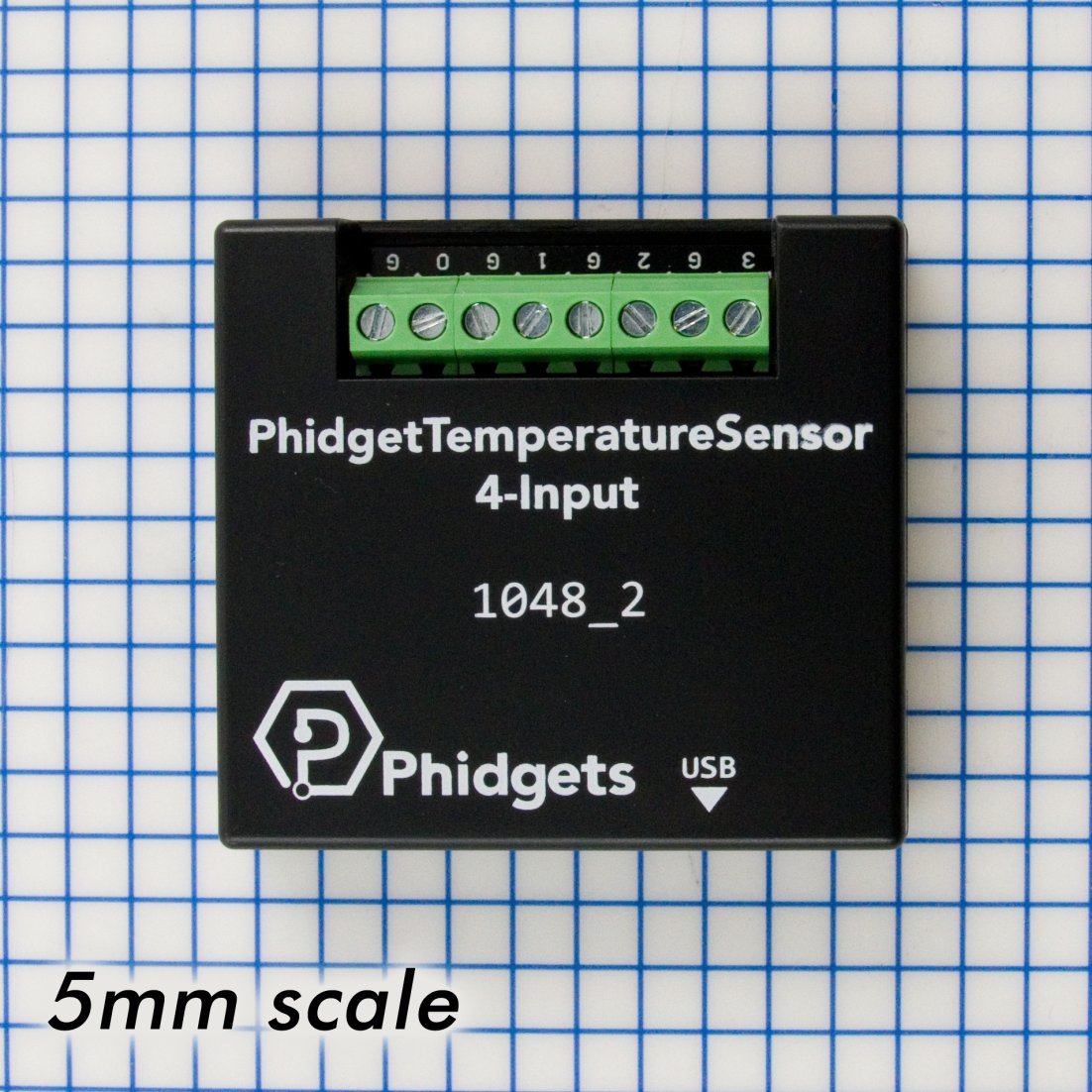

Phidget Temperature Sensor 4-Input (1048_2)

Name: Phidget Temperature Sensor 4-Input (1048_2)
Brand: Phidgets
SKU: 1048_2
Price: 559.00 ILS
Availability: InStock

SKU:1048_2

559.00 ₪

Sale Sold out

Taxes included. Shipping calculated at checkout.

The PhidgetTemperatureSensor 4-Input is a thermocouple interface. It amplifies the signal from a thermocouple and provides a clean, stable digital reading for your application.

After connecting the interface to a computer via USB, you can measure up to four thermocouples. Measurements can be returned as temperatures in degrees Celsius or as a voltage.

Features

Four thermocouple inputs
Supports J, K, E, and T type thermocouples
Offers a voltage sensing mode to manually convert other thermocouple types
Detects and reports thermocouple disconnections
Maximum data rate of 31.25 Hz

Product Specifications

Board

Controlled By USB (Mini-USB)
API Object Name Bridge
Number of Bridge Inputs 4
Bridge Data Rate Min 8 ms
Bridge Data Rate Max 1000 ms
Bridge Input Current Max В± 3 nA
Differential Voltage Resolution 24 bit

Electrical Properties

USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Current Consumption Min 35 mA
Current Consumption Max 500 mA
Available External Current 465 mA
Input Voltage Limit Min Ground + 0.25V DC
Input Voltage Limit Max 5V Supply – 0.25V DC

Physical Properties

Recommended Wire Size 16 – 26 AWG
Operating Temperature Min 0 В°C
Operating Temperature Max 70 В°C

*The minimum data rate is 8ms though the board has a maximum sample rate of 122 samples a second (slightly less than the 125 an 8ms rate would have you believe).

Download the full product sheet:

Download Product Sheet, PDF
