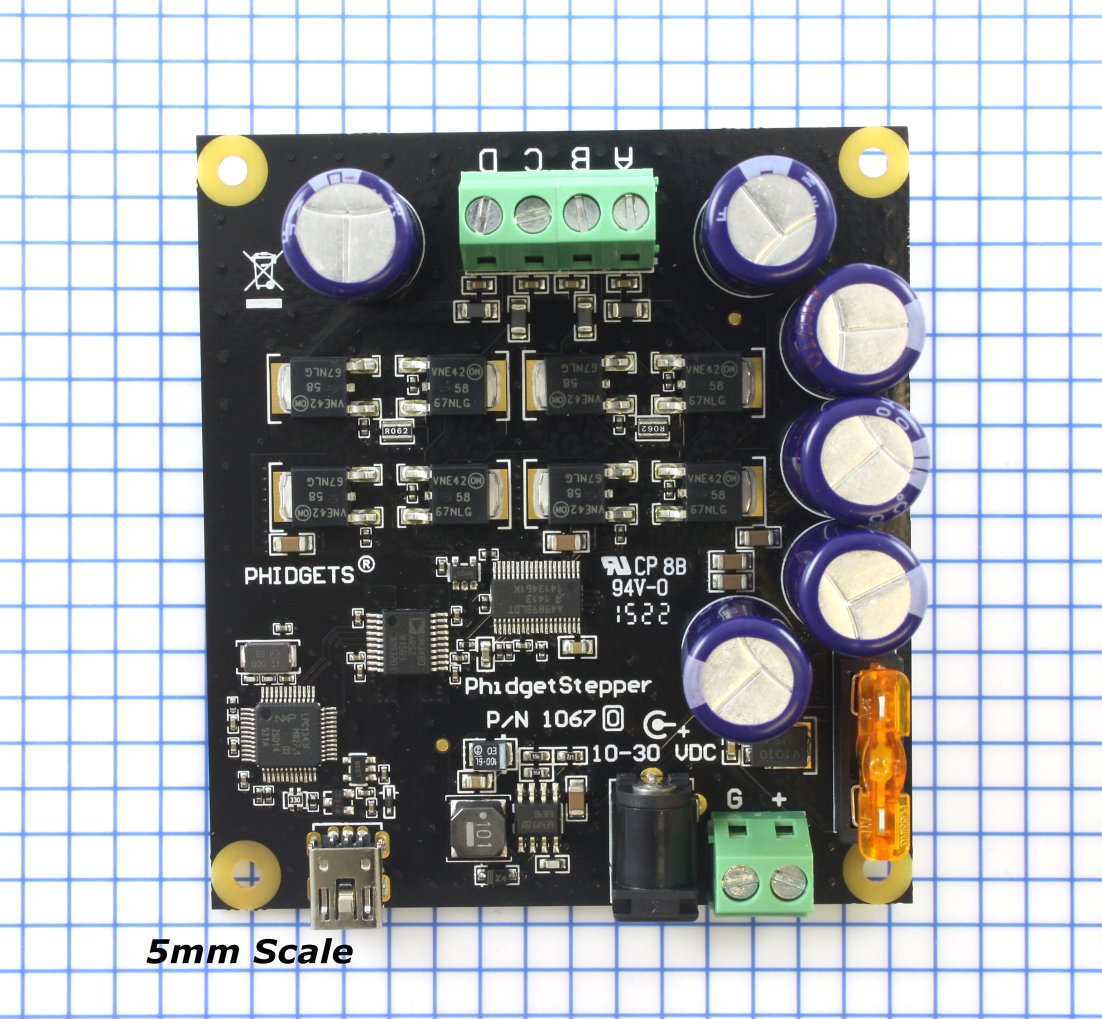

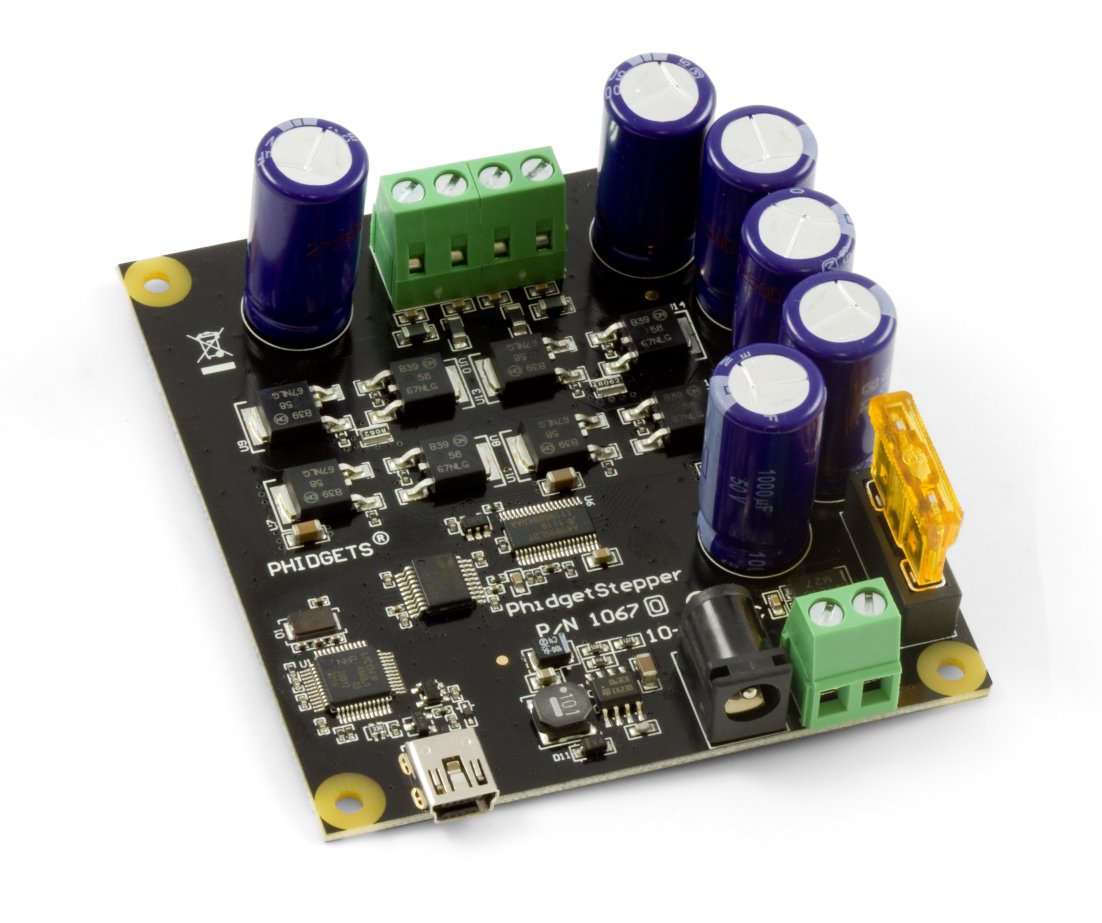

PhidgetStepper Bipolar HC (1067_0)

This controller can deliver up to 4A of continuous current per phase to a single bipolar stepper motor.

The PhidgetStepper Bipolar HC is a powerful stepper motor driver that operates on 10-30V DC and provides up to 4 amps of continuous current per phase to a single bipolar stepper motor.

This controller features two operating modes: Step Mode and Run Mode. In Step Mode, users set a Target Position, and the controller intelligently moves the motor toward the target while adhering to the user-specified Acceleration and Velocity Limit. In Run Mode, the controller continuously rotates the motor in the chosen direction, again following the defined Acceleration and Velocity Limit.

There are several built-in safety features, including over-current protection and polarity protection.

The PhidgetStepper Bipolar HC connects directly to a computer via USB.

Features

• Delivers up to 4A of continuous current per phase to a single bipolar stepper motor.
• Supports microstepping with a resolution of 1/16th steps.
• Built-in electrical isolation for enhanced system reliability.
