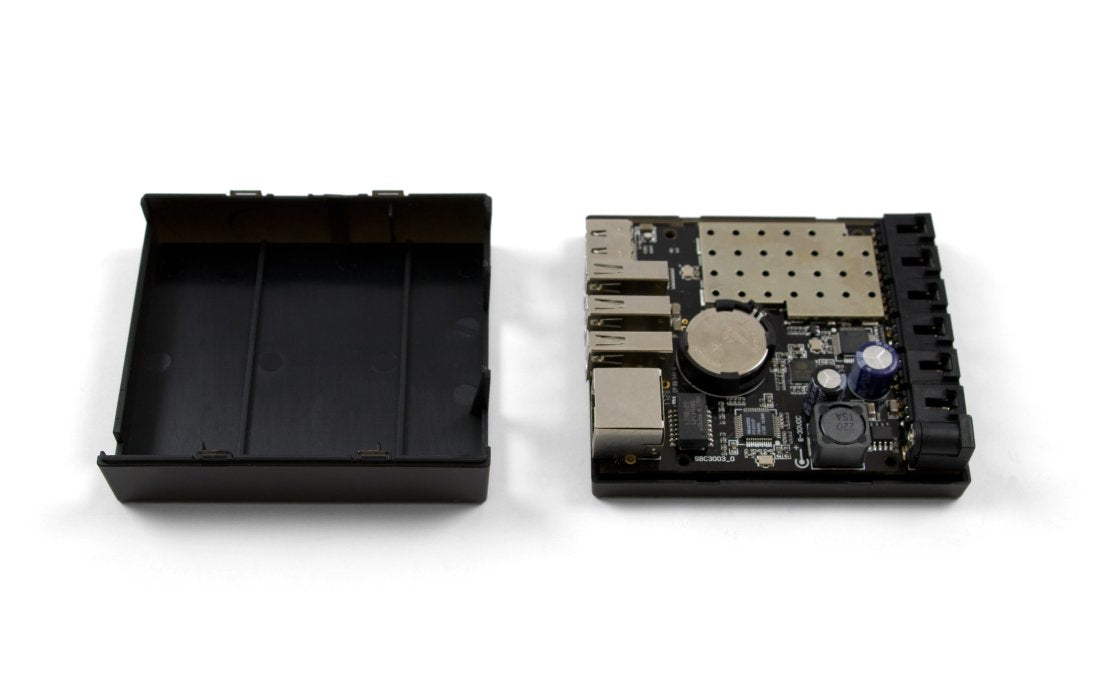

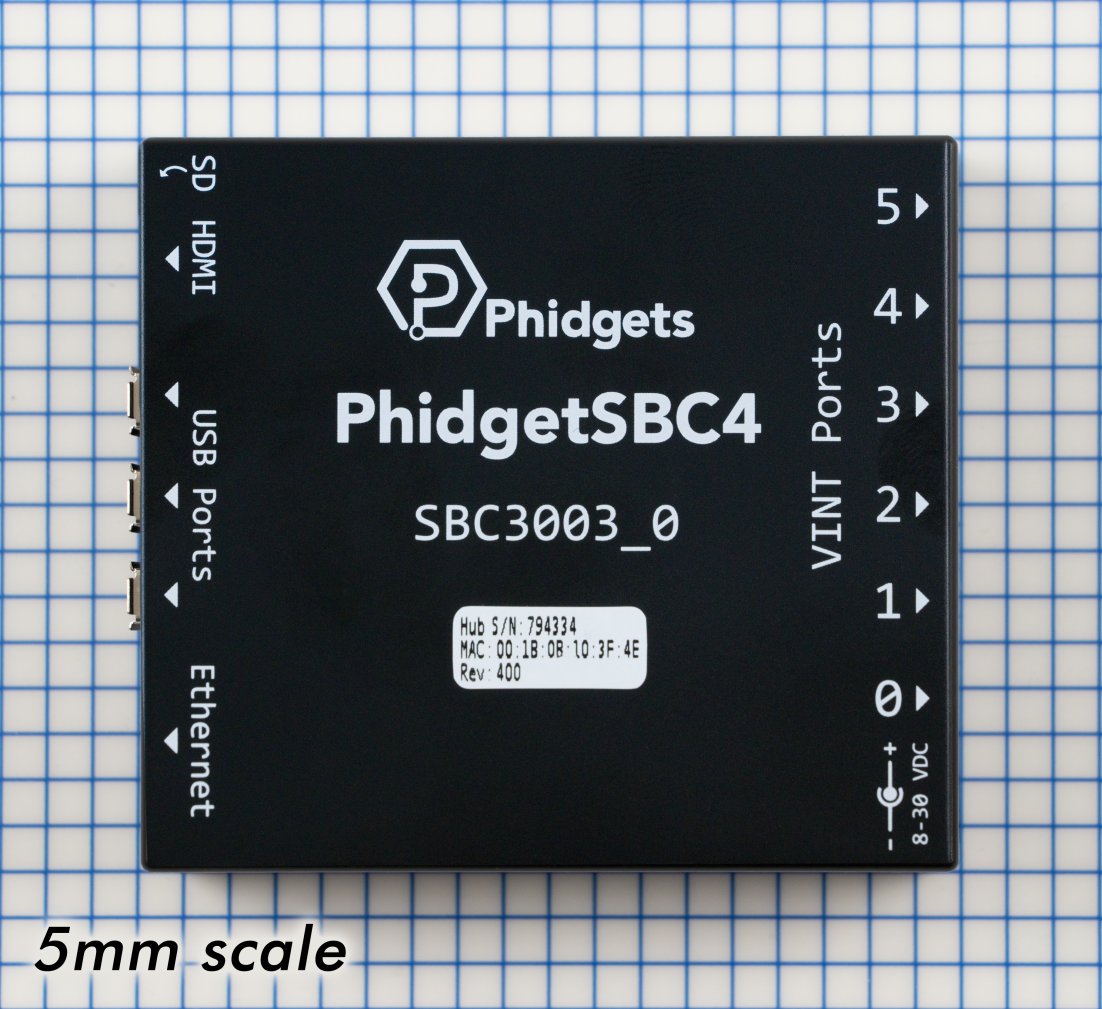

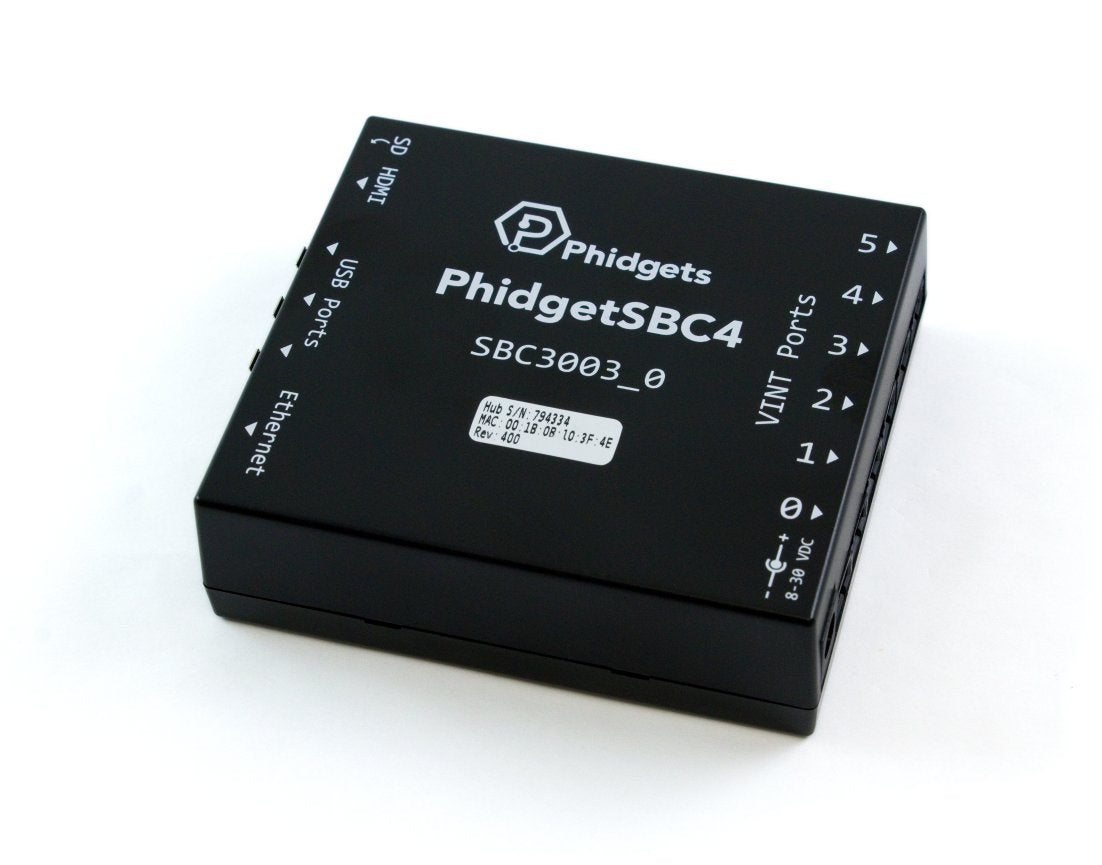

PhidgetSBC4 (SBC3003_0)

The Phidget SBC4 is a Single Board Computer with six integrated VINT ports. VINT Ports can be used in one of four ways: Communicating with an intelligent VINT Device, reading a 0-5V Voltage or ratiometric sensor, acting as a digital output, or reading switches as a digital input.

The SBC4 is an embedded computer that runs Debian GNU/Linux. It’s useful for long-running Phidgets applications or projects that need to be more portable.

You can connect a keyboard and monitor to work directly on the Phidget SBC using the pre-installed Linux terminal, or you can use an external computer to set up and run custom applications through the SBC’s web interface. You can even use the SBC4 as a remote server, accessing Phidgets connected to your SBC from programs running on other computers or devices on the network.

Features

• Debian GNU/Linux and Phidgets drivers pre-installed
• Six VINT Ports - Each port can control a VINT device, sensor, or be used as digital I/O
• Three USB Ports for connecting peripherals, storage devices, or USB Phidgets
• Connects to your network via Ethernet, or wirelessly via USB wifi adapter (sold separately)
• HDMI Port allows direct connection to a monitor to display the Linux terminal

The SBC4 comes equipped with a 8GB card pre-loaded with Debian and our drivers. If you need additional space, you can flash the OS image to a higher capacity card.
