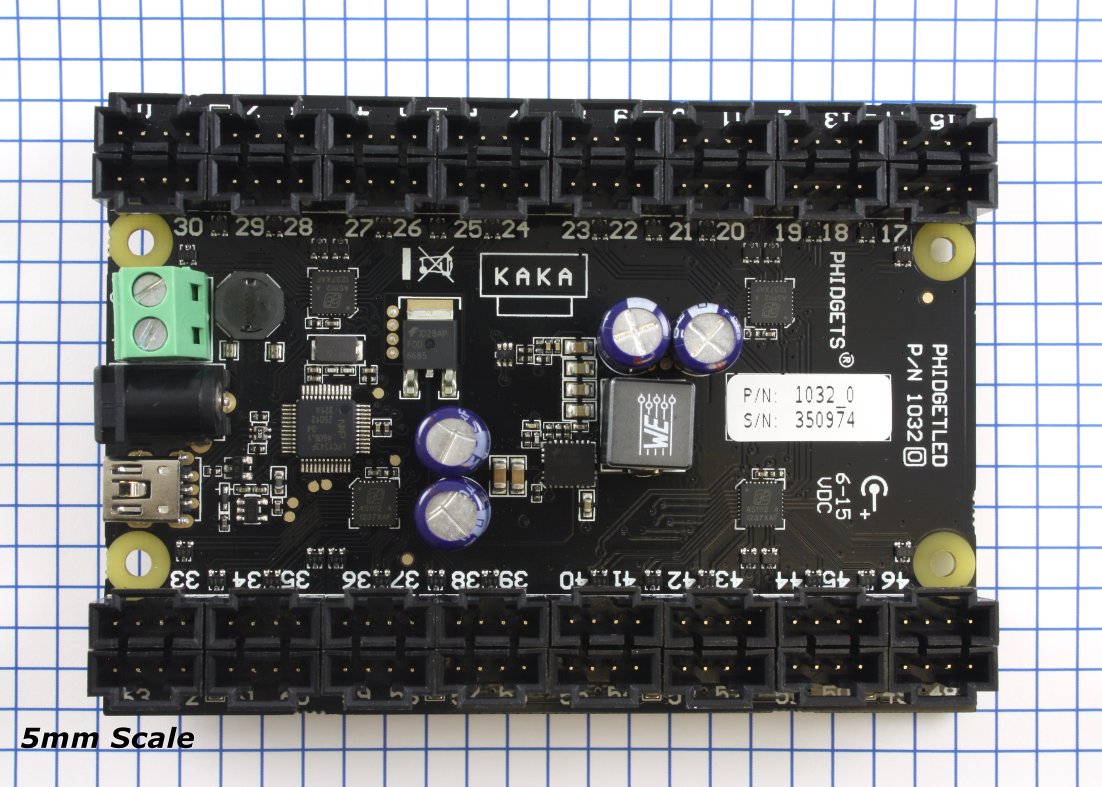

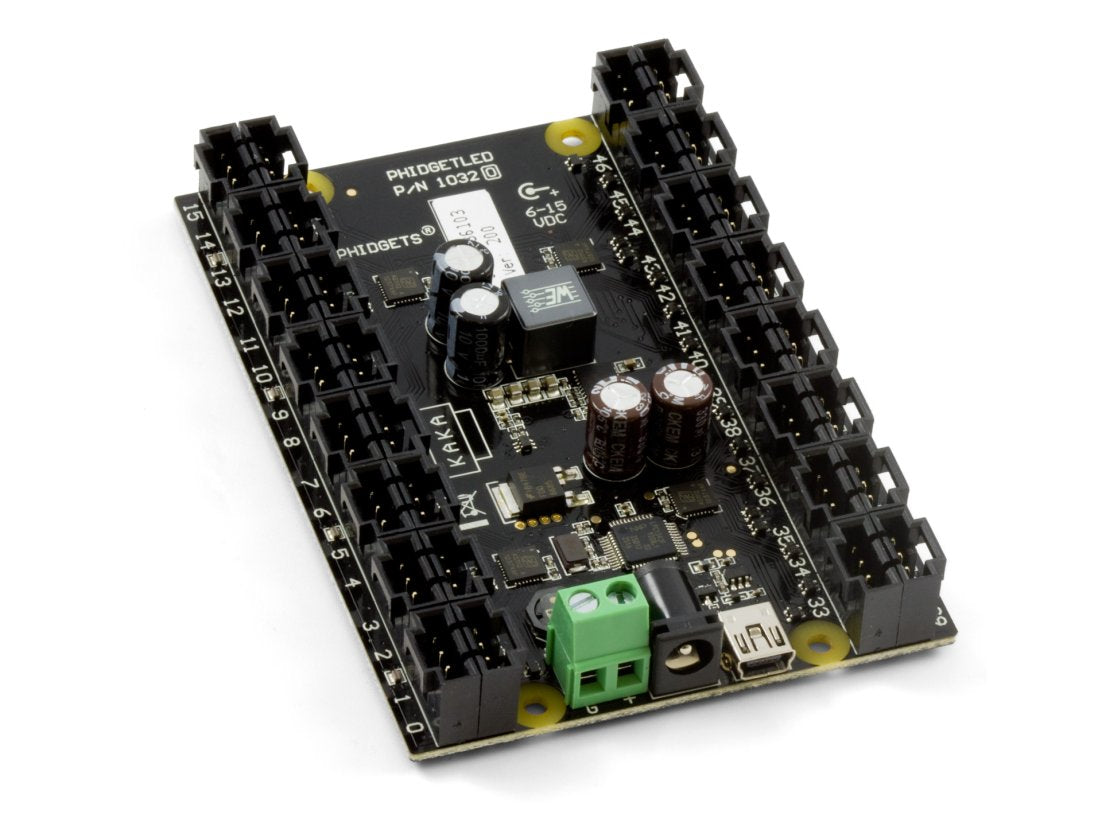

PhidgetLED-64 Advanced (1032_0)

The 1032_0B allows you to independently control 64 Light Emitting Diodes. Each LED can have the current limit set individually, and the brightness controlled from 0 to 100% within that limit using current control.
These LED outputs can also be used to interface other devices that benefit from current control (such as buzzers, fans, and other small, simple electronics).

Most standard LEDs have forward voltages below 2.75 Volts, and can be used with the PhidgetLED by simply soldering them to a connector-wire and inserting the wire into any PhidgetLED board output. The forward voltage will default to 2.75V, and the maximum current defaults to 20mA.

Features

• Control the individual brightness of up to 64 LEDs
• Set voltage for the entire controller to match the forward voltage of your LEDs
• Adjust individual current limits to prevent damage to LEDs
• Externally powered by 6-15V DC power supply
• Mounting hardware included
