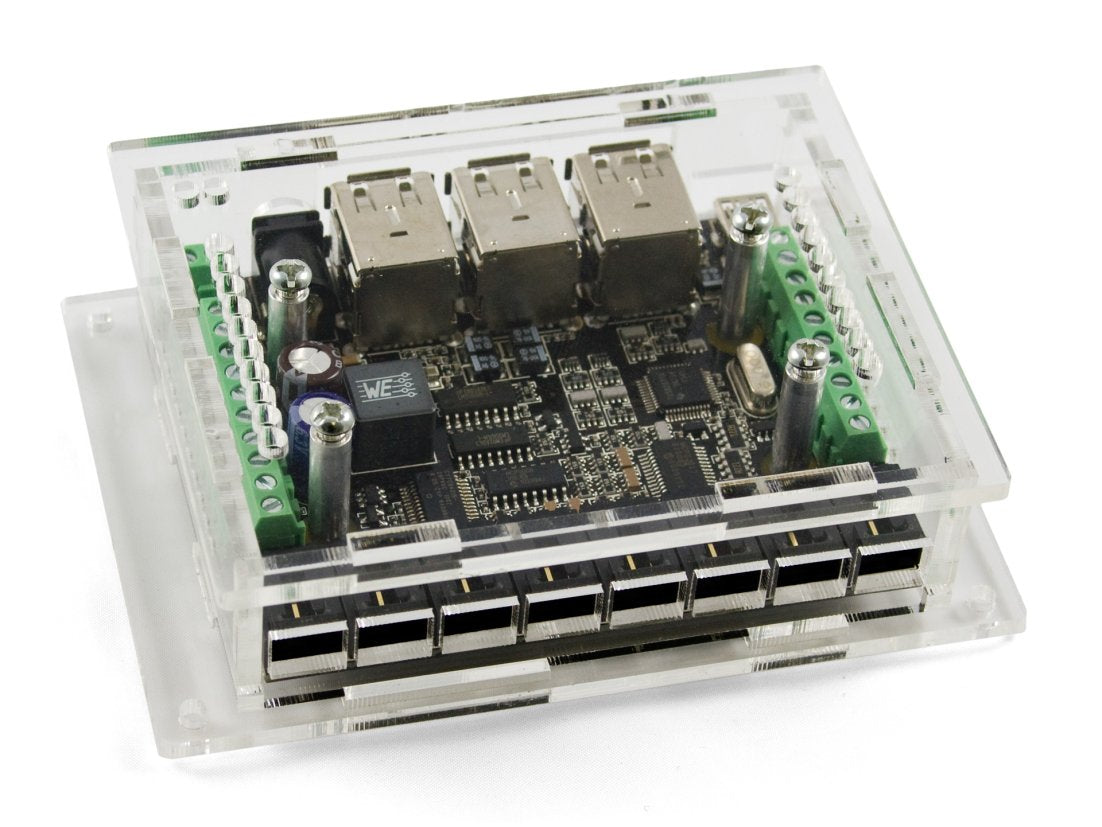

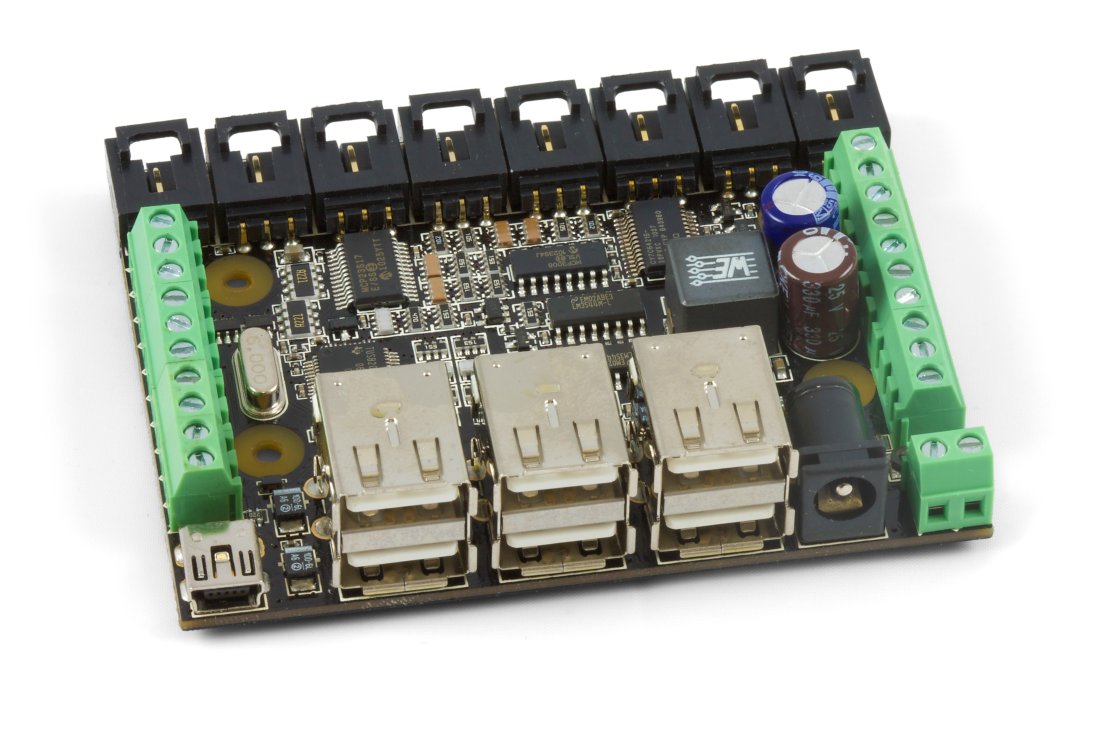

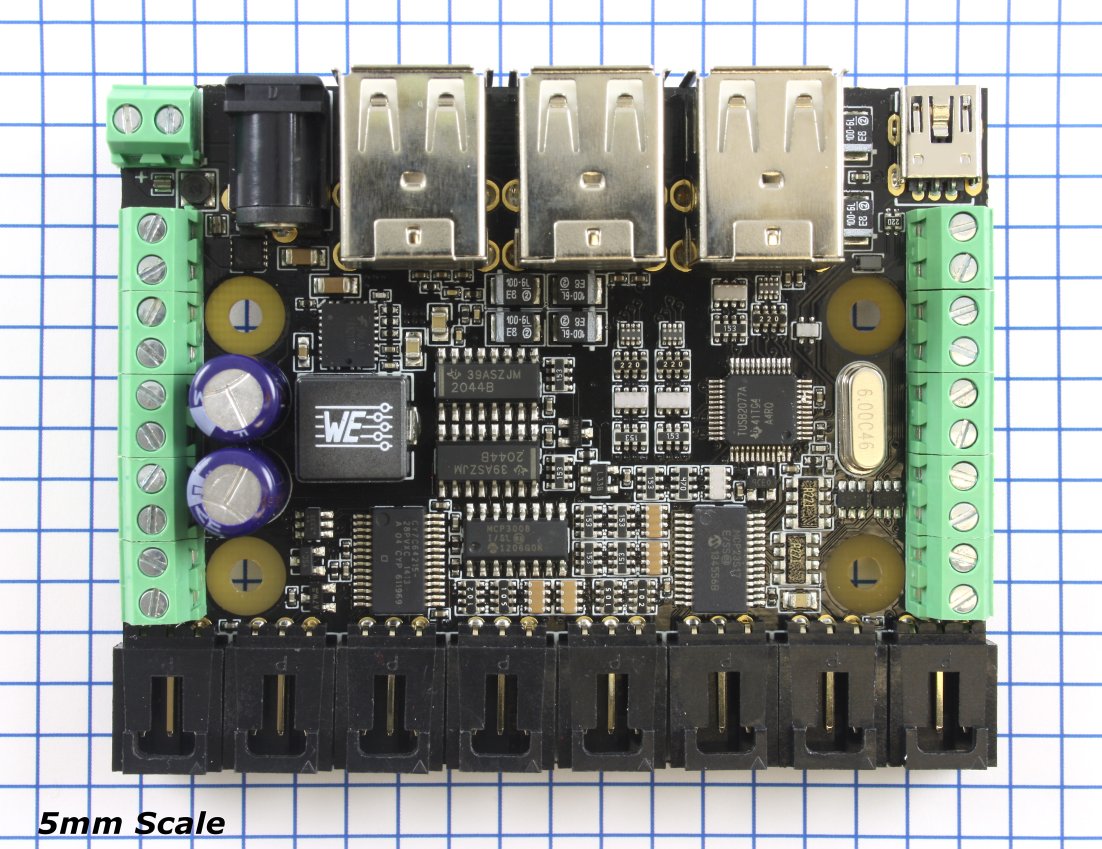

PhidgetInterfaceKit 8/8/8 w/6 Port Hub (1019_1)

The PhidgetInterfaceKit 8/8/8 puts you in control of 8 analog inputs, 8 digital inputs, and 8 digital outputs.

The analog inputs are used to measure continuous voltage outputs generated by various sensors such as temperature, humidity, position, or pressure. Phidgets offers a wide variety of sensors that can be plugged directly into the board using the cable included with the sensor.

The Digital Inputs have a Digital Input Hardware Filter to eliminate false triggering from electrical noise. They can be used to convey the state of devices such as push buttons, limit switches, relays, and logic levels.

The Digital Outputs can be used to drive LEDs, solid state relays, transistors; in fact, anything that will accept a CMOS signal.

Connecting additional USB devices to the 1019 is as easy as plugging them into the on-board 6-port hub. Each USB port on the hub has a maximum current supply of 500mA.

Features

• 8 digital inputs, for reading 0-5V digital signals
• 8 digital outputs, for controlling LEDs or other logic level devices
• 8 analog inputs, for reading 0-5V sensors up to 1000 samples per second
• USB power and ground accessible on terminal blocks
• 6-port USB Hub, externally powered by 6-15V DC supply
• Mounting hardware included
