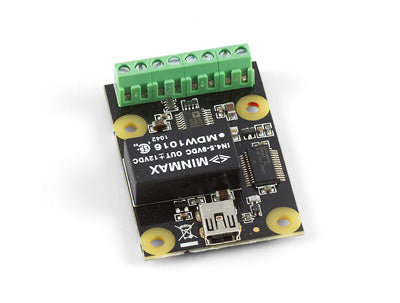

PhidgetAnalog 4-Output

PhidgetAnalog 4-Output

1002_0B

530.00 ₪
530.00 ₪
Sale Sold out

Outputs a voltage from -10V to +10V. The PhidgetAnalog 4-Output produces a voltage over -10V to +10V at a maximum of ±20mA. If this current is exceeded an error will be thrown to notify that the voltage may have dropped below the setpoint.

The voltage is produced with 12-bit resolution (4.8mV). The board is not isolated and all 4 channels share a common ground. All the power is supplied via USB.

* The maximum output frequency is dependent on the speed of your system.

The 1002_0B is identical to the 1002_0, except that you have the option of whether you want to include the USB cable.

Board Properties

  • Controlled By: USB (Mini-USB)
  • API Object Name: VoltageOutput
  • USB Voltage Min: 4.6 V DC
  • USB Voltage Max: 5.5 V DC
  • Current Consumption Min: 55 mA
  • Current Consumption Max: 300 mA
  • Available External Current (per channel): 20 mA
  • Recommended Wire Size: 16 – 26 AWG
  • USB Speed: Full Speed
  • Operating Temperature Min: 0 °C
  • Operating Temperature Max: 70 °C

Voltage Outputs

  • Number of Voltage Outputs: 4
  • Output Impedance (Channel Enabled): 500 mΩ
  • Output Impedance (Channel Disabled): 4 kΩ
  • Voltage Output Max: ± 10 V DC
  • Output Voltage Resolution (12 bit): 4.8 mV DC
  • Capacitive Load Stability: 4 nF
  • Frequency Max: Variable*

* The maximum output frequency is dependent on the speed of your system.

The package includes:

  • PhidgetAnalog 4-Output
  • Hardware mounting kit (4 nuts and bolts M3, 4 plastic spacers)

Download the full product sheet:

PDF icon Download Product Sheet, PDF
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
