Phidgets

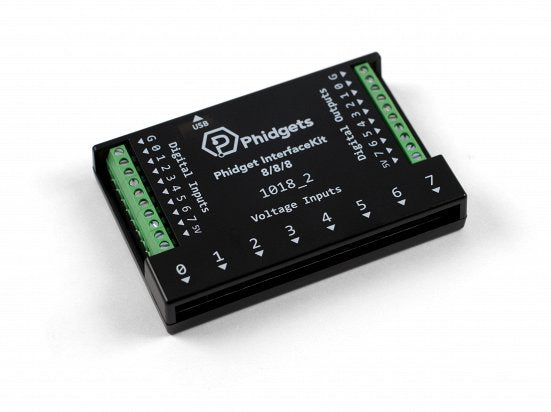

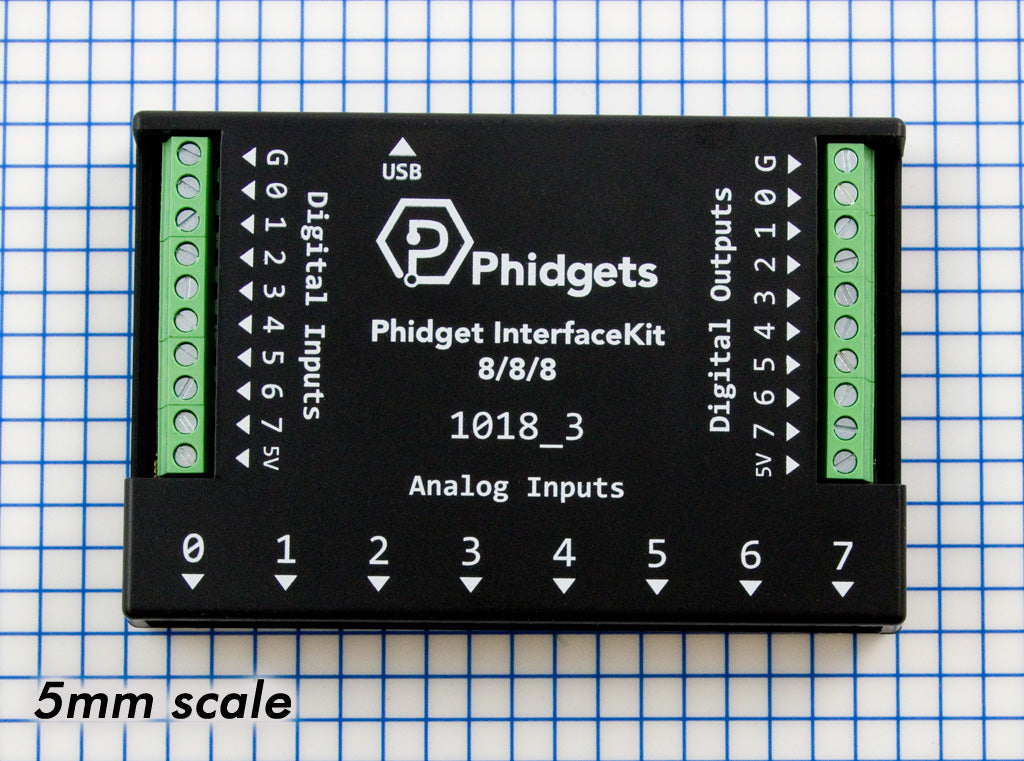

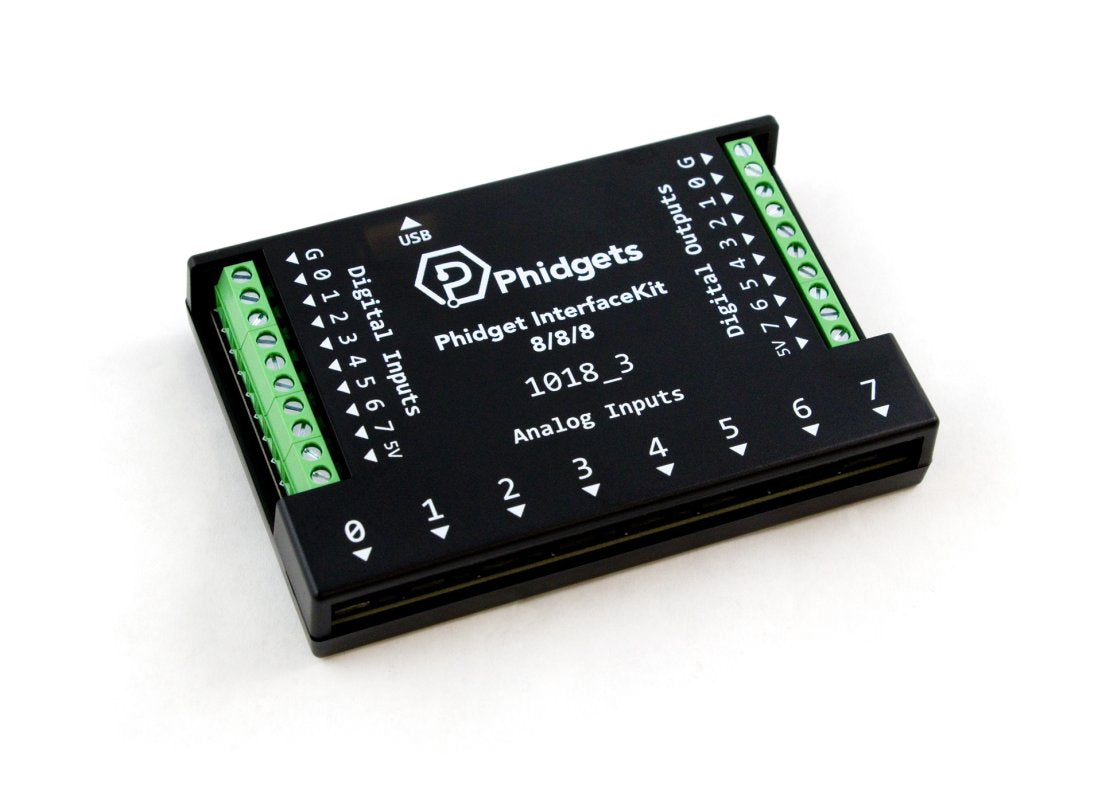

PhidgetInterfaceKit 8/8/8

PhidgetInterfaceKit 8/8/8

1018_2B

510.00 ₪
510.00 ₪
Sale Sold out
  • 8 Analog Inputs with configurable data acquisition rates
  • 8 Digital Inputs with hardware noise filtering
  • 8 Digital Outputs
  • 5V terminal block besides Analog Input 7 and Digital Output 7
  • Connects directly to a computer’s USB port

The 1018_2B is identical to the 1018_2, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include.

Analog Inputs

The analog inputs measure continuous voltage outputs from sensors such as temperature, humidity, position, or pressure. Sensors plug directly into the board using the cable included with the sensor. Sampling rates can be set at 1ms, 2ms, 4ms, 8ms and multiples of 8ms up to 1000ms.

Digital Inputs

The Digital Inputs have a hardware filter to eliminate false triggering from electrical noise and can detect the state of devices such as push buttons, limit switches, relays, and logic levels.

Digital Outputs

The Digital Outputs can drive LEDs, solid state relays (such as the 3052 SSR Relay Board), transistors, and other devices that accept a CMOS signal.

Board

  • Controlled By: USB (Mini-USB)
  • API Object Name: DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput
  • USB Voltage Range: 4.6 – 5.5 V DC
  • Current Consumption: 13 mA – 500 mA
  • Available External Current: 487 mA
  • Recommended Wire Size: 16 – 26 AWG
  • USB Speed: Full Speed
  • Operating Temperature: 0 °C to 70 °C

Voltage Inputs

  • Number: 8
  • Resolution: 10 bit
  • Input Impedance: 900 kΩ
  • Voltage Range: 0 – 5 V DC
  • 5V Reference Error Max: 0.5 %
  • Update Rate: 1 – 1000 samples/s (4 channels), 1 – 500 samples/s (8 channels), 62.5 samples/s (WebService)

Digital Inputs

  • Number: 8
  • Pull-up Resistance: 15 kΩ
  • Low Voltage Max (True): 900 mV DC
  • High Voltage Min (False): 4.2 V DC
  • Low Voltage Trigger Length Min: 4 ms
  • High Voltage Trigger Length Min: 15 ms
  • Voltage Max: ± 15 V DC
  • Update Rate: 125 samples/s

Digital Outputs

  • Number: 8
  • Series Resistance: 300 Ω
  • Output Current Max: 16 mA
  • Voltage Range: 0 – 5 V DC

Download the full product sheet:

PDF icon Download Product Sheet, PDF
