PhidgetInterfaceKit 0/0/4 (1014_3)

PhidgetInterfaceKit 0/0/4 (1014_3)

1014_3

299.00 ₪
349.00 ₪ 299.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

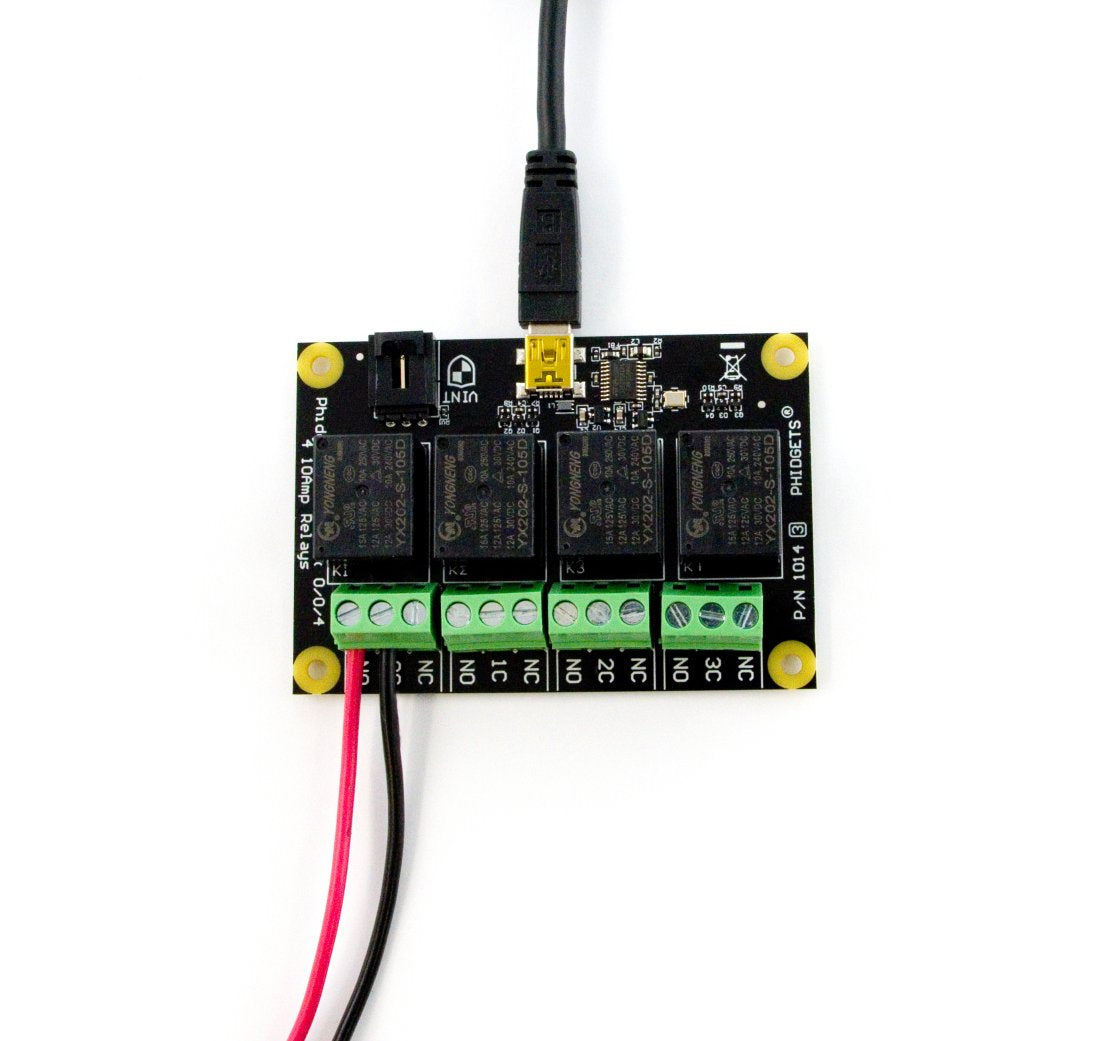

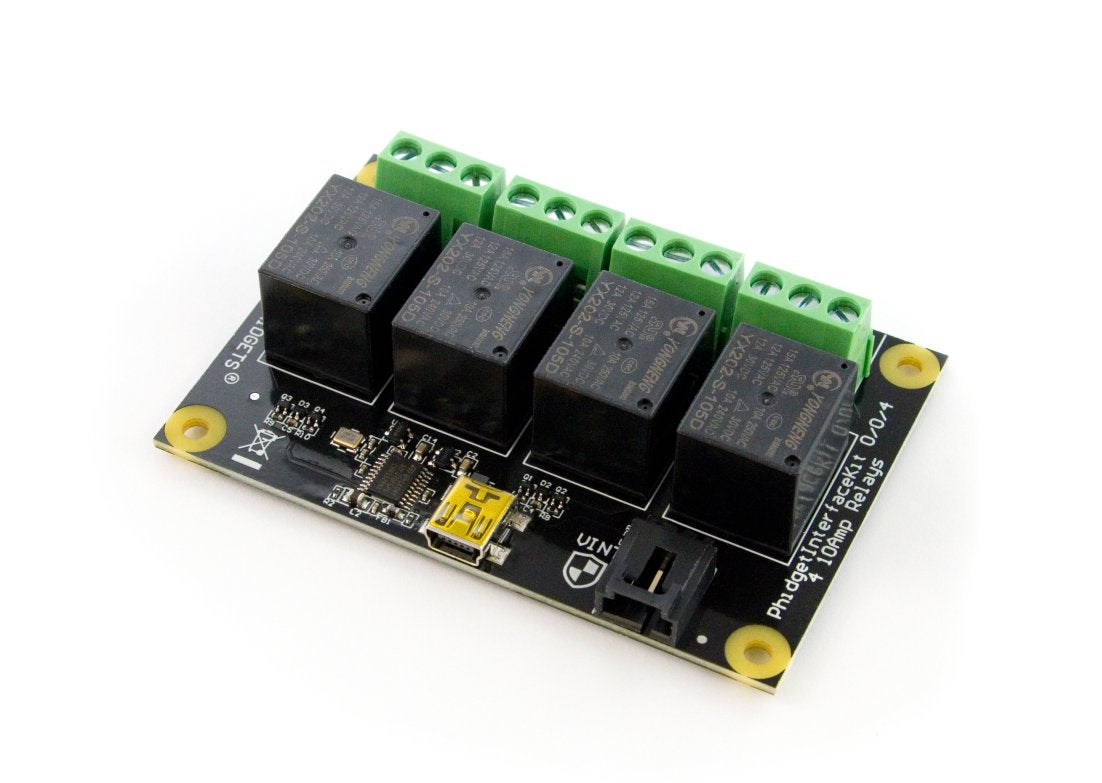

    The PhidgetInterfaceKit 0/0/4 is a mechanical relay board designed for a wide range of switching applications.

    It includes four SPDT mechanical relays capable of switching AC or DC loads, giving you control over high-power devices such as incandescent bulbs, fans, pumps, and more.

    You can connect the PhidgetInterfaceKit 0/0/4 directly to your computer via USB or through a VINT Hub Phidget.

    Features

    • Control up to four separate devices or circuits with SPDT relays
    • Rated for 210W of DC power or 1750VA of AC power
    • For DC applications, switch up to 30V at 7A
    • For AC applications, switch up to 12A or 277V AC (total power below 1750VA)
    • Mounting hardware included


    Note: This board is not suitable for switching signals. It takes at least 100mA of current to bridge the oxide layer that forms on the relay contacts, and most signals will not meet this requirement.

    Board

    • Controlled By: USB (Mini-USB)
    • API Object Name: DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput
    • USB Voltage Range: 4.6 – 5.5 V DC
    • Current Consumption: 13 mA – 500 mA
    • Available External Current: 487 mA
    • Recommended Wire Size: 16 – 26 AWG
    • USB Speed: Full Speed
    • Operating Temperature: 0 °C to 70 °C

    Voltage Inputs

    • Number: 8
    • Resolution: 10 bit
    • Input Impedance: 900 kΩ
    • Voltage Range: 0 – 5 V DC
    • 5V Reference Error Max: 0.5 %
    • Update Rate: 1 – 1000 samples/s (4 channels), 1 – 500 samples/s (8 channels), 62.5 samples/s (WebService)

    Digital Inputs

    • Number: 8
    • Pull-up Resistance: 15 kΩ
    • Low Voltage Max (True): 900 mV DC
    • High Voltage Min (False): 4.2 V DC
    • Low Voltage Trigger Length Min: 4 ms
    • High Voltage Trigger Length Min: 15 ms
    • Voltage Max: ± 15 V DC
    • Update Rate: 125 samples/s

    Digital Outputs

    • Number: 8
    • Series Resistance: 300 Ω
    • Output Current Max: 16 mA
    • Voltage Range: 0 – 5 V DC

    Download the full product sheet:

    PDF icon Download Product Sheet, PDF
    • Warranty: 12 months
    • Delivery time: up to 10 business days
    • Professional customer service, fast delivery, attractive pricing
    • Genuine Phidgets product
