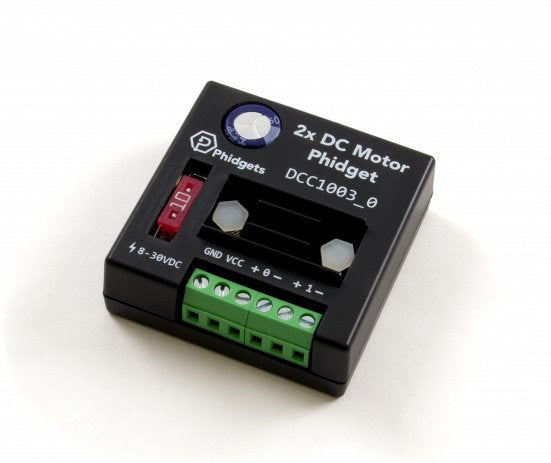

2x DC Motor Phidget

Control two DC motors from one VINT port with this compact motor controller.

The DCC1003 gives you complete control of two DC motors of up to 4 amps each from one of the ports on your VINT hub. You can control motor velocity, acceleration and braking strength using commands from your software. The compact and enclosed form factor of the DCC1003 makes it easy for this Phidget to fit in smaller projects while still controlling motors with current ratings of up to 4 amps. See the Connection & Compatibility tab for a list of devices with VINT ports that can connect to this Phidget.

Reliability and Protection

A built-in heatsink on this controller prevents it from overheating during operation.

The VINT port on this device is isolated from the rest of the board, greatly improving reliability and eliminating ground loops. Your VINT Hub and computer will also be safe in the event of a current spike coming back from the motor.

The power terminals on this device are polarity protected: if you happen to hook up the power supply backwards, the device simply won’t power up and won’t be damaged. There is also a fuse included on-board to protect the controller in an over-current event.

Product Specifications

Board Properties

  • Controlled By: VINT

Controller Properties

  • Motor Type: DC Motor
  • Number of Motor Ports: 2
  • Acceleration Min: 0.1 % Duty Cycle/s
  • Acceleration Max: 100 % Duty Cycle/s
  • PWM Frequency: 25 kHz
  • Sampling Interval Min: 100 ms/sample
  • Sampling Interval Max: 60 s/sample
  • Acceleration Resolution: 0.1 Duty Cycle/s
  • Velocity Resolution: 0.001 Duty Cycle
  • Current Limit Resolution: 5.6 mA
  • Acceleration Time Min: 20 ms
  • Acceleration Time Max: 20 s

Electrical Properties

  • Continuous Motor Current Max (per motor): 4 A
  • Supply Voltage Min: 8 V DC
  • Supply Voltage Max: 30 V DC
  • Current Consumption (Unconfigured, VINT Port): 500 μA
  • Current Consumption Max (VINT Port): 750 μA

Physical Properties

  • Recommended Wire Size: 16 – 26 AWG
  • Operating Temperature Min: -40 °C
  • Operating Temperature Max: 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
