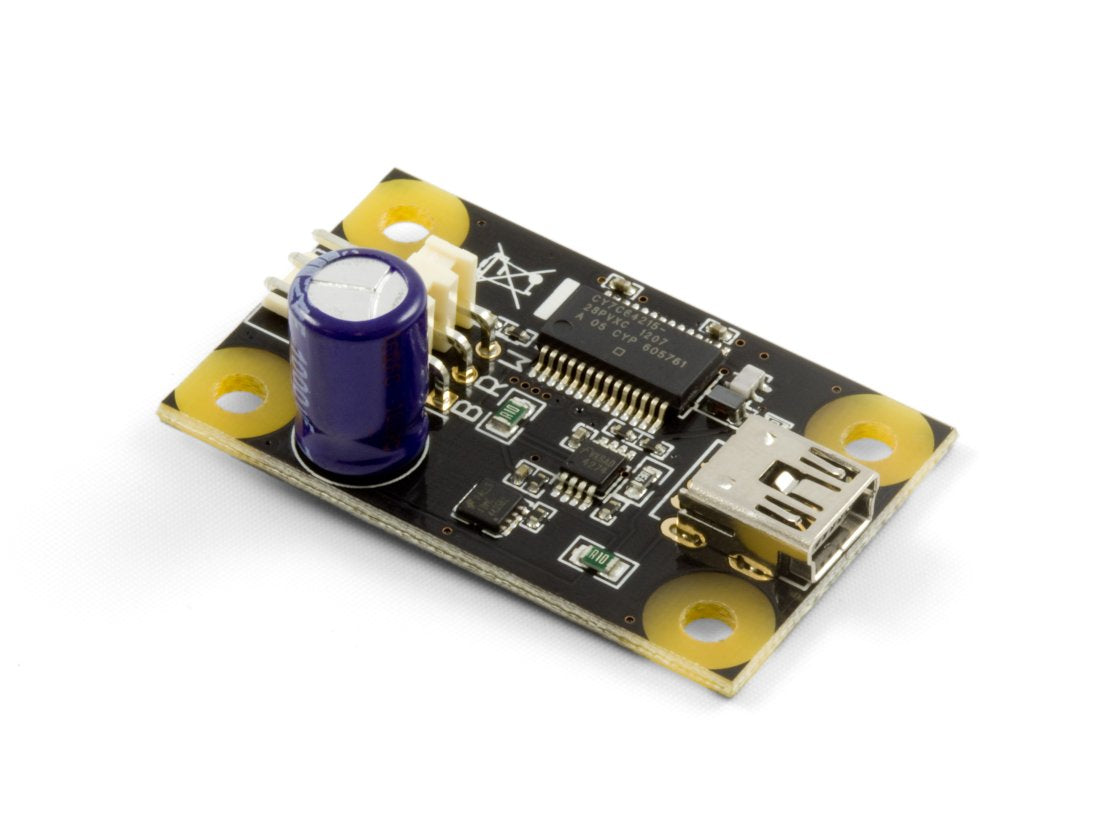

PhidgetAdvancedServo 1-Motor (1066_1)

PhidgetAdvancedServo 1-Motor (1066_1)

1066_1

239.00 ₪
239.00 ₪ 239.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

The PhidgetAdvancedServo 1-Motor allows you to control the position, velocity, and acceleration of one RC servo motor and connects directly to your computer's USB port.

It is powered solely by the USB connection – no additional power source is required and it can power servos with a rated current of up to 450mA.

Features

  • Control the position, velocity, and acceleration of one servo motor
  • Set the min/max pulse width for each servo, and the position they correspond to in code
  • Servo powered by 5V USB voltage- no need for an external power supply
  • Built-in current sensor for power monitoring and stall detection
  • Mounting hardware included

Product Specifications

Board Properties

  • Controlled By: VINT

Controller Properties

  • Motor Type: DC Motor
  • Number of Motor Ports: 2
  • Acceleration Min: 0.1 % Duty Cycle/s
  • Acceleration Max: 100 % Duty Cycle/s
  • PWM Frequency: 25 kHz
  • Sampling Interval Min: 100 ms/sample
  • Sampling Interval Max: 60 s/sample
  • Acceleration Resolution: 0.1 Duty Cycle/s
  • Velocity Resolution: 0.001 Duty Cycle
  • Current Limit Resolution: 5.6 mA
  • Acceleration Time Min: 20 ms
  • Acceleration Time Max: 20 s

Electrical Properties

  • Continuous Motor Current Max (per motor): 4 A
  • Supply Voltage Min: 8 V DC
  • Supply Voltage Max: 30 V DC
  • Current Consumption (Unconfigured, VINT Port): 500 μA
  • Current Consumption Max (VINT Port): 750 μA

Physical Properties

  • Recommended Wire Size: 16 – 26 AWG
  • Operating Temperature Min: -40 °C
  • Operating Temperature Max: 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
