Light Phidget

Light Phidget

LUX1000_0

90.00 ₪
90.00 ₪
Sale Sold out

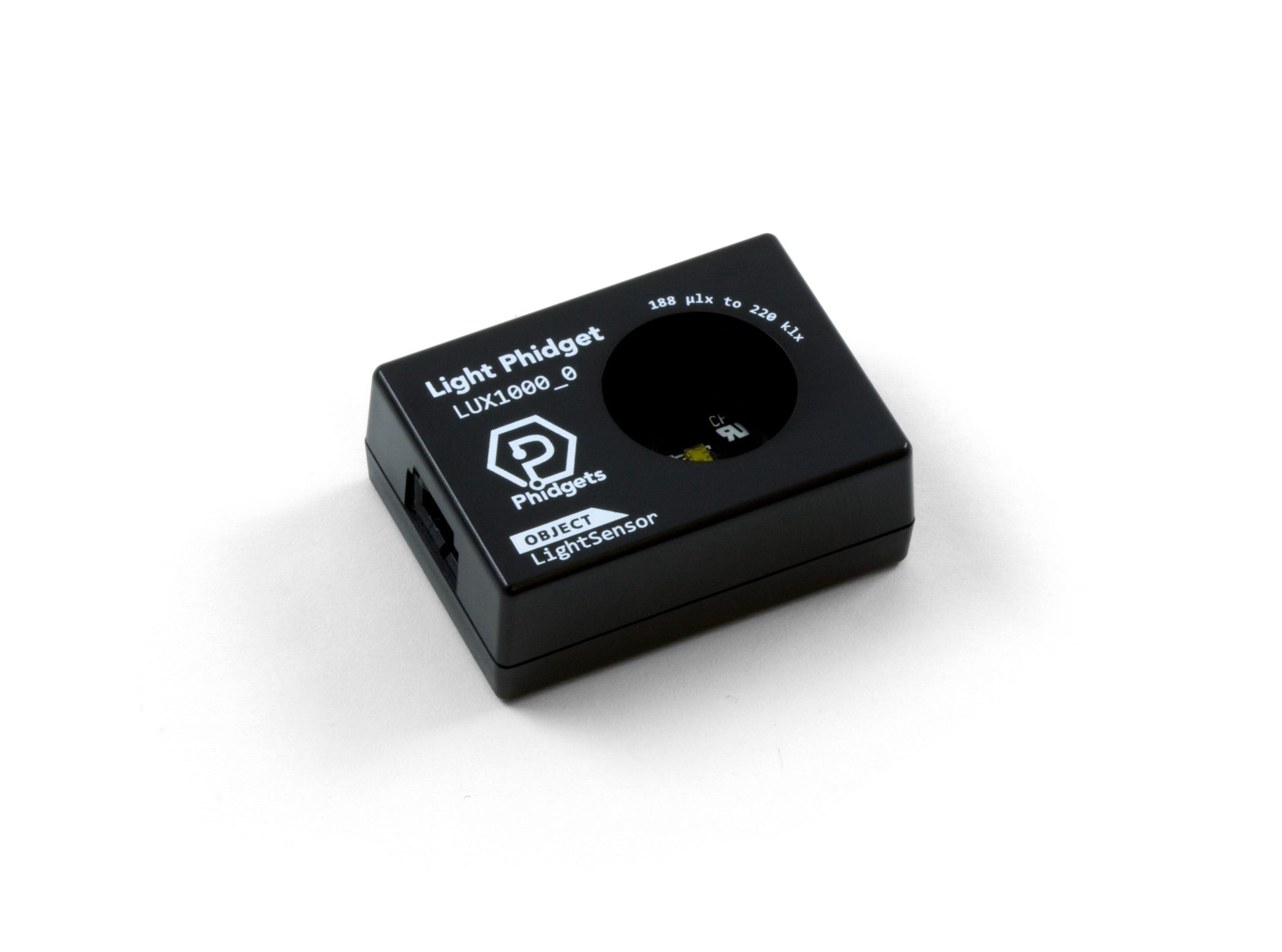

Light Phidget

This light sensor measures from 188 μlux to 220 klux and connects to any VINT port.

This handly little sensor measures the amount of light shining on it, making it a perfect addition to automated systems that need to switch on at night or in low-light conditions. It has a wide measurement range from 188 microlux (starlight on a moonless night) to 220,000 lux (direct sunlight). It connects to a VINT Hub port with a Phidget cable. Have a look at the “Compatible Products” tab for a list of options.

Product Specifications

Sensor Properties

  • Controlled By VINT
  • Sensor Type Light

Light Sensor

  • Light Level Min 188 μlx
  • Light Level Max (5V) 220 klx
  • Light Resolution 188 μlx
  • Sampling Interval Min 125 ms/sample
  • Sampling Interval Max 60 s/sample

Electrical Properties

  • Current Consumption Max * 500 μA
  • Current Consumption Min 20 μA

Physical Properties

  • Operating Temperature Min -15 °C
  • Operating Temperature Max 70 °C

* – Current consumption varies depending on selected data interval. See the technical section of the User Guide for details.

Download the full product sheet:

PDF icon Download Product Sheet, PDF
