LCD Screen 2x20 (12.7mm Characters) (3652_0)

LCD Screen 2x20 (12.7mm Characters) (3652_0)

3652_0

149.00 ₪
199.00 ₪ 149.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

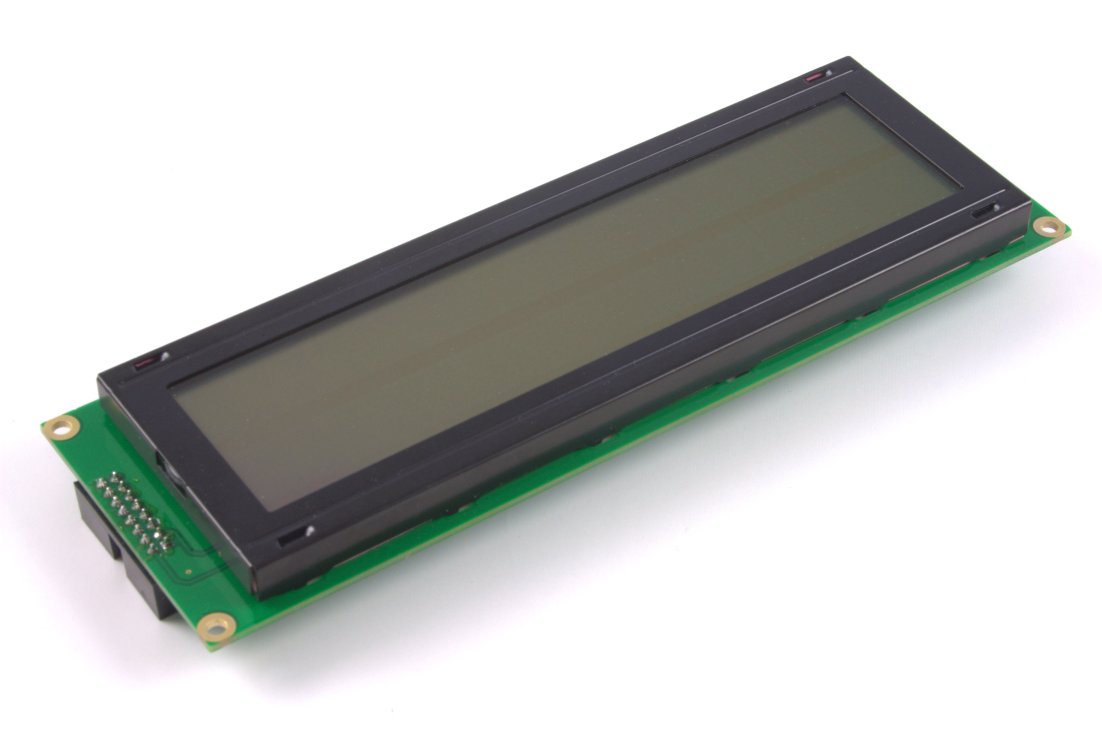

The 3652 is a 2 lines x 20 characters LCD module with a large viewing area of 147 x 35mm. The 6 x 12mm characters are nice and big. From software, the LCD contrast, and the LED backlight brightness can be adjusted.

Features

  • Displays two rows of 20 characters
  • Adjustable LCD contrast and backlight brightness
  • Connects to a Phidgets 1204 LCD adapter

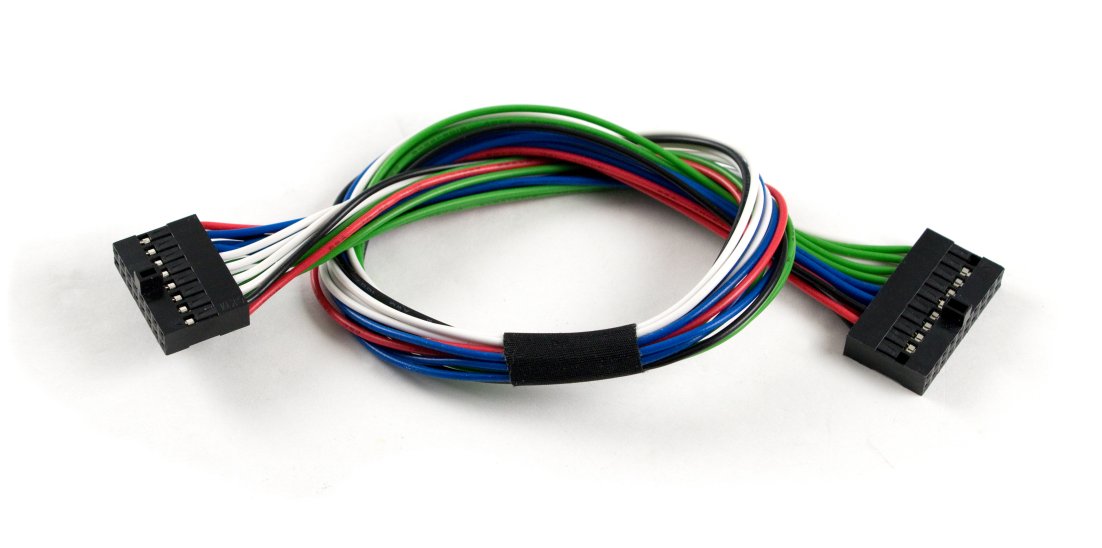

  • 30cm cable included

Connection

This LCD connects to a TextLCD adapter using the included cable. See the Connection & Compatibility tab for details.

Product Specifications

Board Properties

  • Controlled By: VINT

Controller Properties

  • Motor Type: DC Motor
  • Number of Motor Ports: 2
  • Acceleration Min: 0.1 % Duty Cycle/s
  • Acceleration Max: 100 % Duty Cycle/s
  • PWM Frequency: 25 kHz
  • Sampling Interval Min: 100 ms/sample
  • Sampling Interval Max: 60 s/sample
  • Acceleration Resolution: 0.1 Duty Cycle/s
  • Velocity Resolution: 0.001 Duty Cycle
  • Current Limit Resolution: 5.6 mA
  • Acceleration Time Min: 20 ms
  • Acceleration Time Max: 20 s

Electrical Properties

  • Continuous Motor Current Max (per motor): 4 A
  • Supply Voltage Min: 8 V DC
  • Supply Voltage Max: 30 V DC
  • Current Consumption (Unconfigured, VINT Port): 500 μA
  • Current Consumption Max (VINT Port): 750 μA

Physical Properties

  • Recommended Wire Size: 16 – 26 AWG
  • Operating Temperature Min: -40 °C
  • Operating Temperature Max: 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
