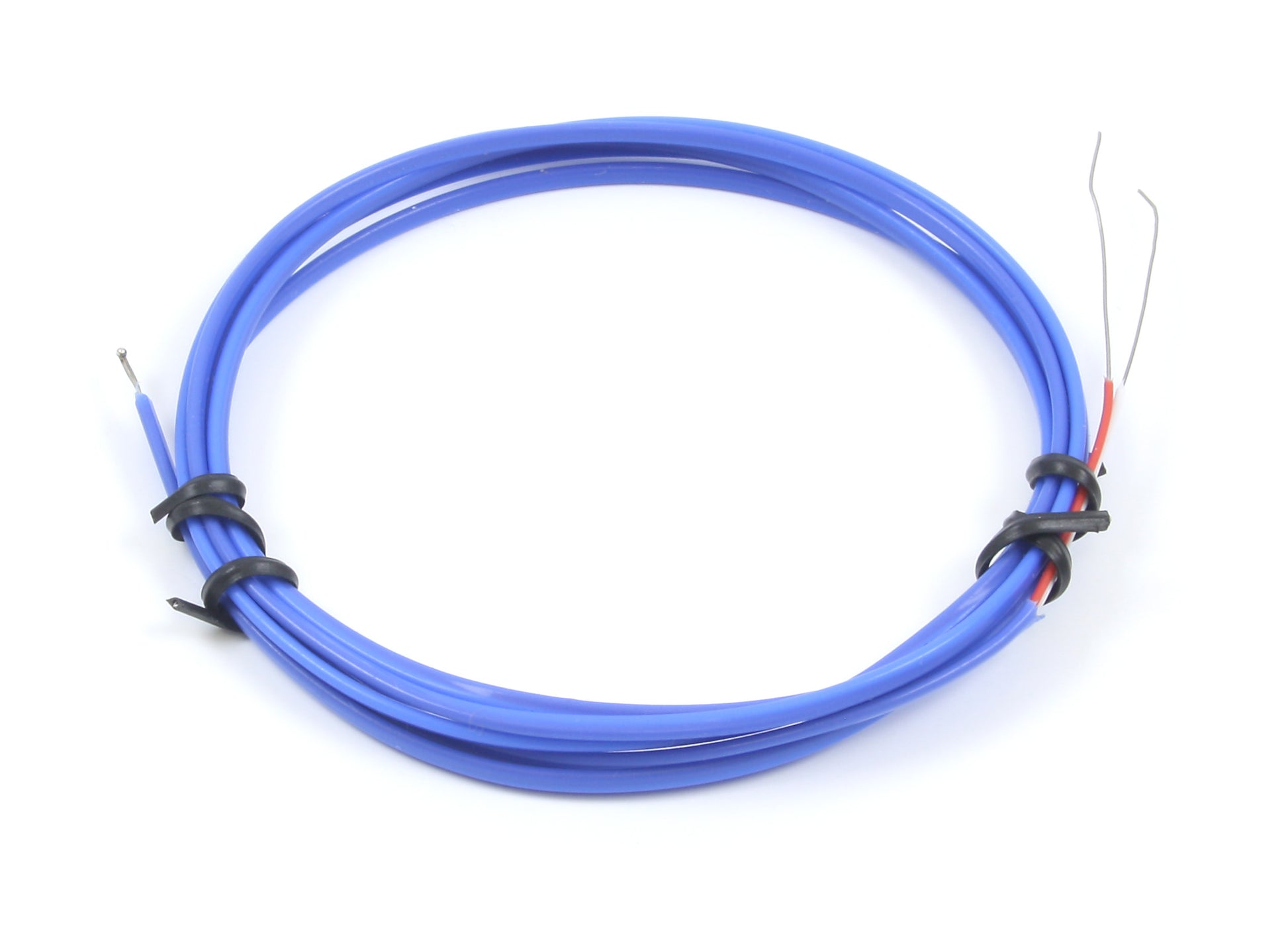

K-Type Teflon Bead Probe Thermocouple (-40°C To +200°C)

K-Type Teflon Bead Probe Thermocouple (-40°C To +200°C)

TMP4103_0

40.00 ₪
40.00 ₪
Sale Sold out

K-Type Teflon Bead Probe Thermocouple (-40°C To +200°C)

This K-Type thermocouple measures temperatures from -40°C to 200°C and connects to a Phidgets thermocouple board.

The TMP4103_0 – K-Type thermocouple can measure temperatures between -40°C to +200°C with a ±0.75°C accuracy.

For more information on thermocouples, visit the Thermocouple Primer.

Product Specifications

Sensor Properties

  • Sensor Type: Thermocouple
  • Controlled By: Thermocouple Interface

Temperature Sensor

  • Thermocouple Type: K
  • Probe Type: Bead
  • Ambient Temperature Min: -40 °C
  • Ambient Temperature Max: 200 °C
  • Ambient Temperature Error Max: ± 0.75 °C

Physical Properties

  • Connector Type: Stripped Leads
  • Cable Length: 1 m
  • Cable Gauge: 28 AWG
  • Insulation Material: Teflon
  • Probe Material: chromel-alumel

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
