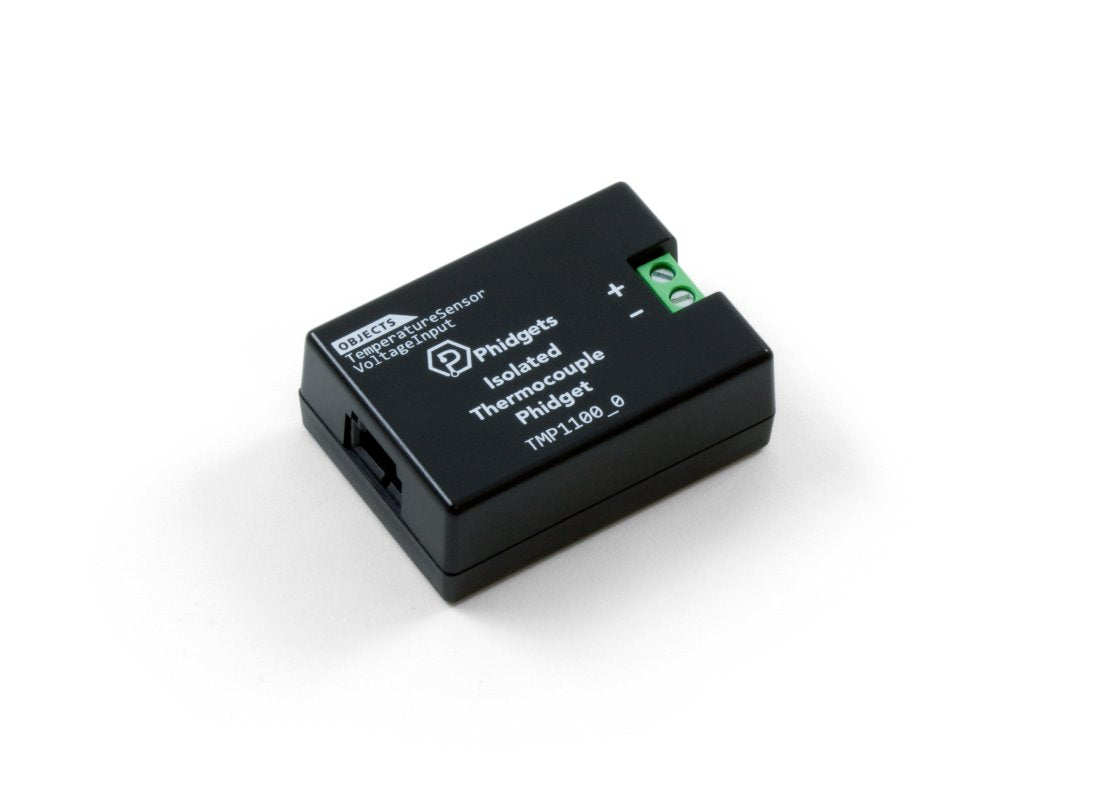

Isolated Thermocouple Phidget (TMP1100_0)

Isolated Thermocouple Phidget (TMP1100_0)

TMP1100_0

189.00 ₪
189.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Isolated Thermocouple Phidget is a thermocouple interface. It amplifies the signal from a thermocouple and provides a clean, stable digital reading for your application.

After connecting the interface to a computer through a VINT Hub Phidget, you can measure one thermocouple. Measurements can be returned as temperatures in degrees Celsius or as a voltage.

The Isolated Thermocouple Phidget features an isolated thermocouple input, which may result in more stable and accurate readings.

  • Supports J, K, E, and T type thermocouples
  • Offers a voltage sensing mode to manually convert other thermocouple types
  • Electrically isolated for reduced susceptibility to noise
  • Maximum data rate of 50 Hz

Product Specifications

Board Properties

  • Controlled By VINT

Resistance Input

  • Maximum Measurable Resistance 50 k

RTD Input

  • Temperature Error Max 0.2 °C
  • RTD Current Max 62 ¼A
  • Sampling Interval Min 250 ms/sample
  • Sampling Interval Max 60 s/sample

Electrical Properties

  • Current Consumption Min 17 ¼A
  • Current Consumption Max 4 mA

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
