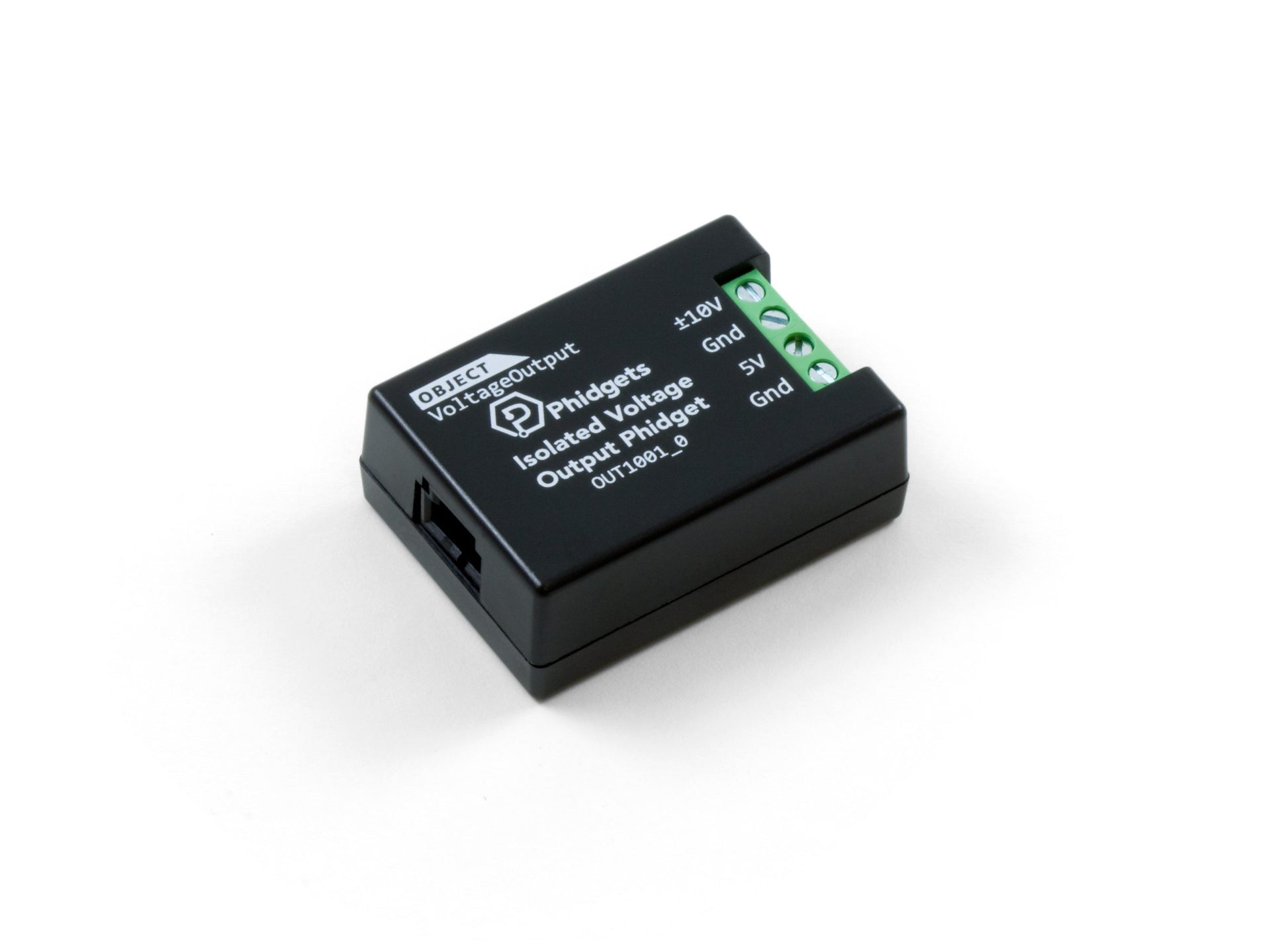

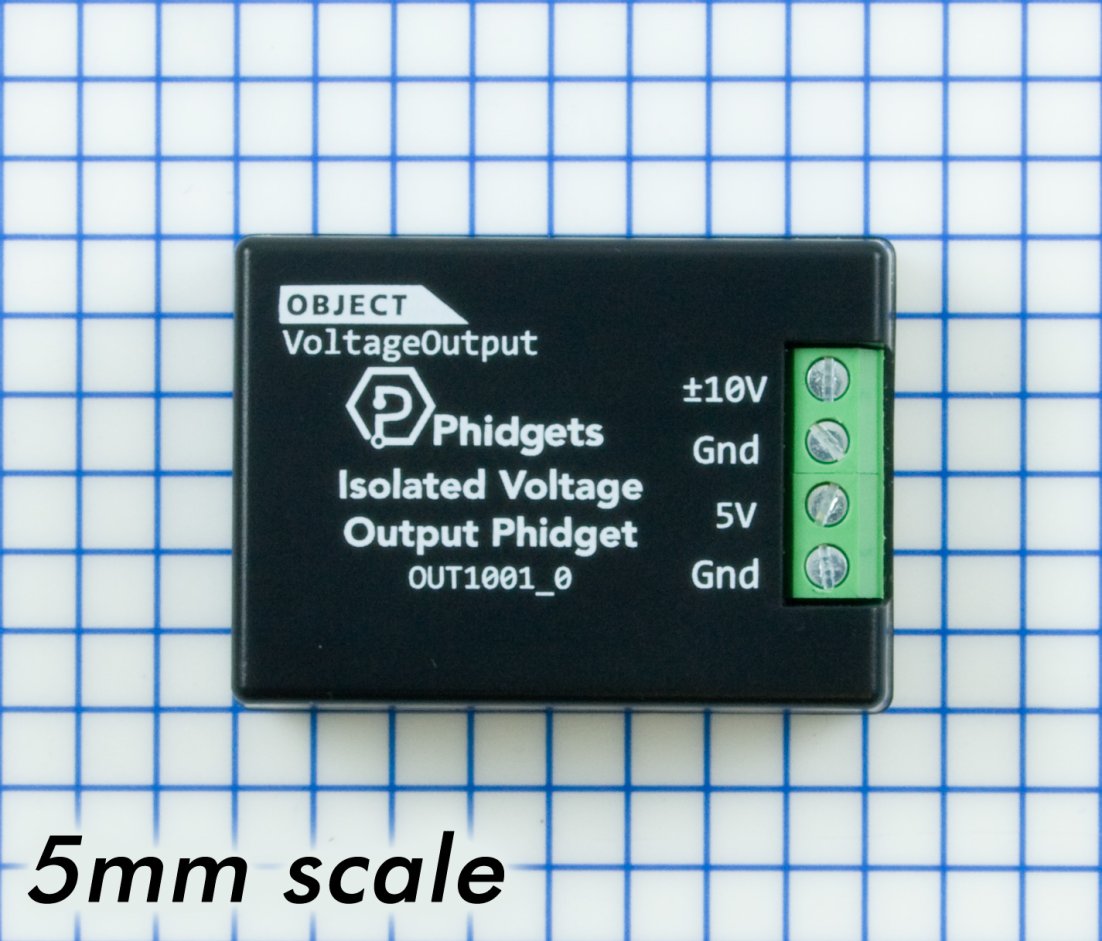

Isolated 12-Bit Voltage Output Phidget (OUT1001_0)

The Isolated 12-Bit Voltage Output Phidget (OUT1001_0) allows software control of precision analog output voltages to drive external industrial controllers, variable frequency drives, or analog actuators.

Featuring 12-bit resolution, this board offers both a -10 V to +10 V output terminal (4.9 mV resolution) and a 0 V to 5 V output terminal (1.2 mV resolution) for higher precision needs. Built-in galvanic electrical isolation protects your system from ground loops and signal interference. The device is factory calibrated and includes hardware safety features, triggering an API event if the actual output voltage deviates from the set point due to overcurrent conditions.

Features:

• Generates controlled DC output voltages up to ±10 V DC or 0–5 V DC
• 12-bit digital-to-analog resolution (1.2 mV on 0–5V terminal, 4.9 mV on ±10V terminal)
• Galvanic electrical isolation prevents ground loops and system instability
• Factory calibrated for accurate analog signal generation out of the box
• Automatic voltage deviation event handling for overcurrent or fault detection

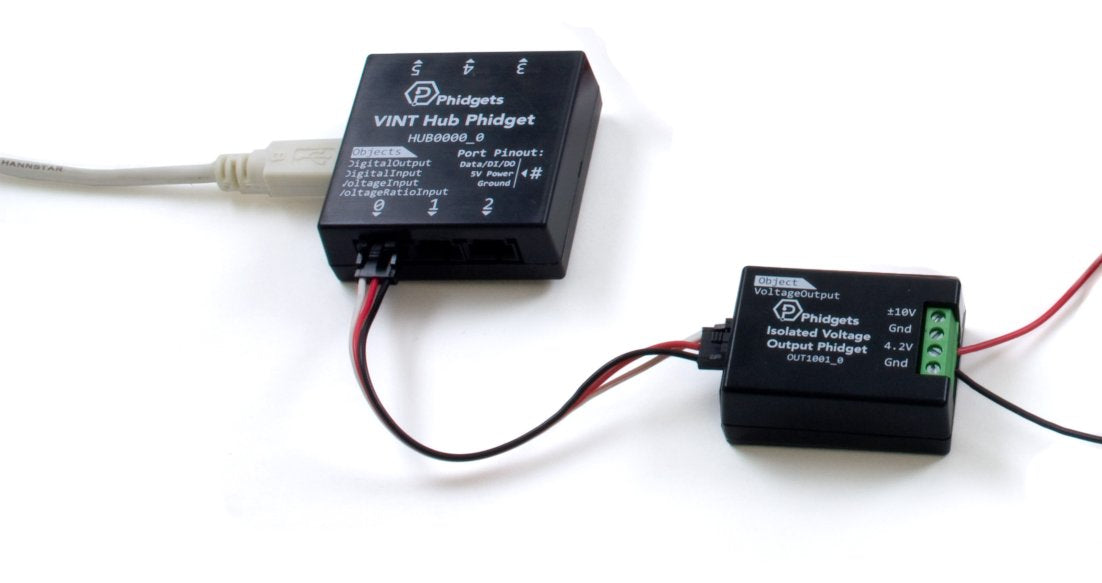

• Connects seamlessly to any VINT Hub port using standard Phidget cables
