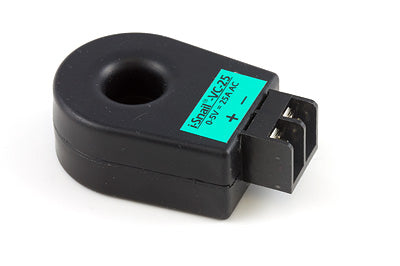

The i-Snail AC Current Sensor 25Amp (3501_0) is a self-powered AC current transducer designed for economical load monitoring without requiring an external power supply.
Factory calibrated for 0–25A RMS AC sine wave current, it outputs a proportional 0–5V DC analog voltage signal that interfaces directly with any analog input module or Phidget interface board. Featuring a 13.7 mm (0.54″) wire window that accommodates conductors up to AWG #2, it provides a linear output up to a 120% overload (6V) with output clamping at 6.5V for safety.
Features:
- Self-powered operation eliminates the need for an external power supply
- Calibrated full-scale range of 0 to 25A AC (RMS)
- Proportional 0 to 5V DC analog voltage output
- Large 13.7 mm (0.54″) wire window accepts conductor sizes up to AWG #2
- Linear output up to 120% overload range with 6.5V clamping protection
- Color-coded label for immediate full-scale range identification
Sensing & Electrical Specifications
- Input Range: 0 to 25A AC RMS
- Output Signal: 0 to 5V DC analog
- Conversion Formula: AC Amps (RMS) = V × 5
- Power Supply: Self-powered (induced from current flow)
- Wire Window Diameter: 13.7 mm / 0.54″ (Up to AWG #2)
- Output Protection: Voltage clamped at 6.5V DC
- Linear Overload Range: Up to 120% (6V output)
The package includes:
- i-Snail AC Current Sensor 25Amp (3501_0)

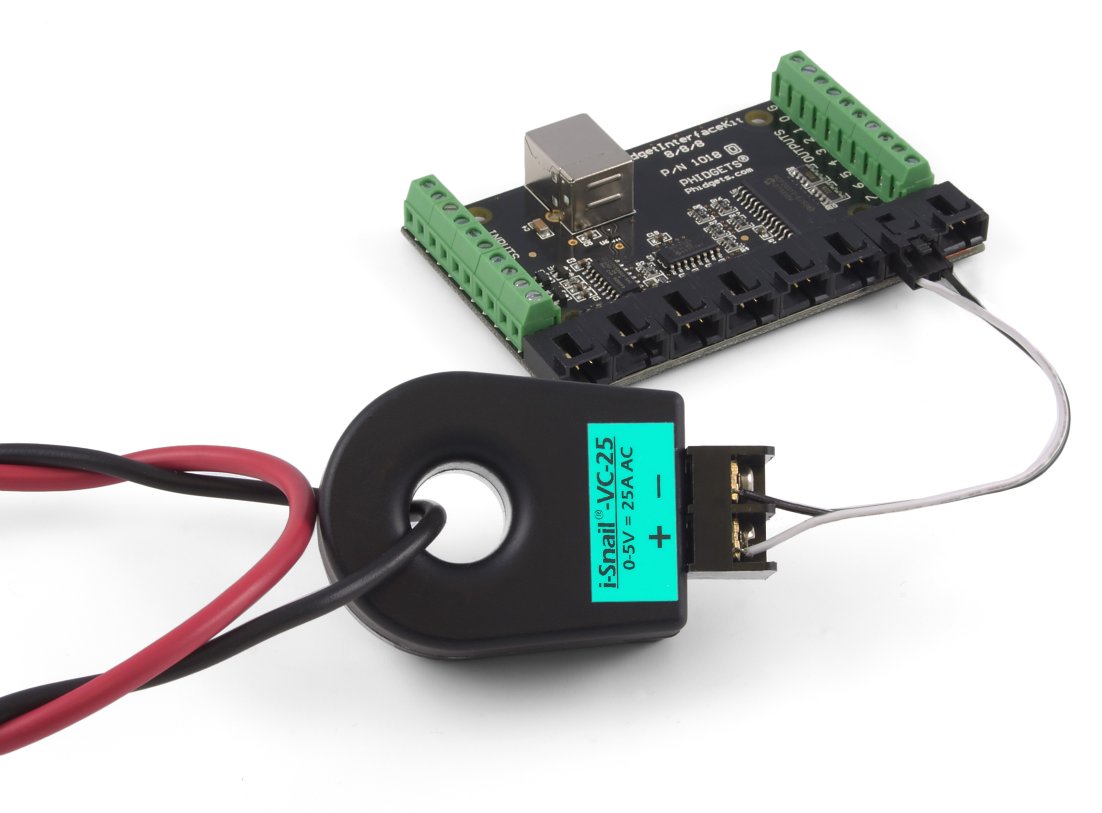

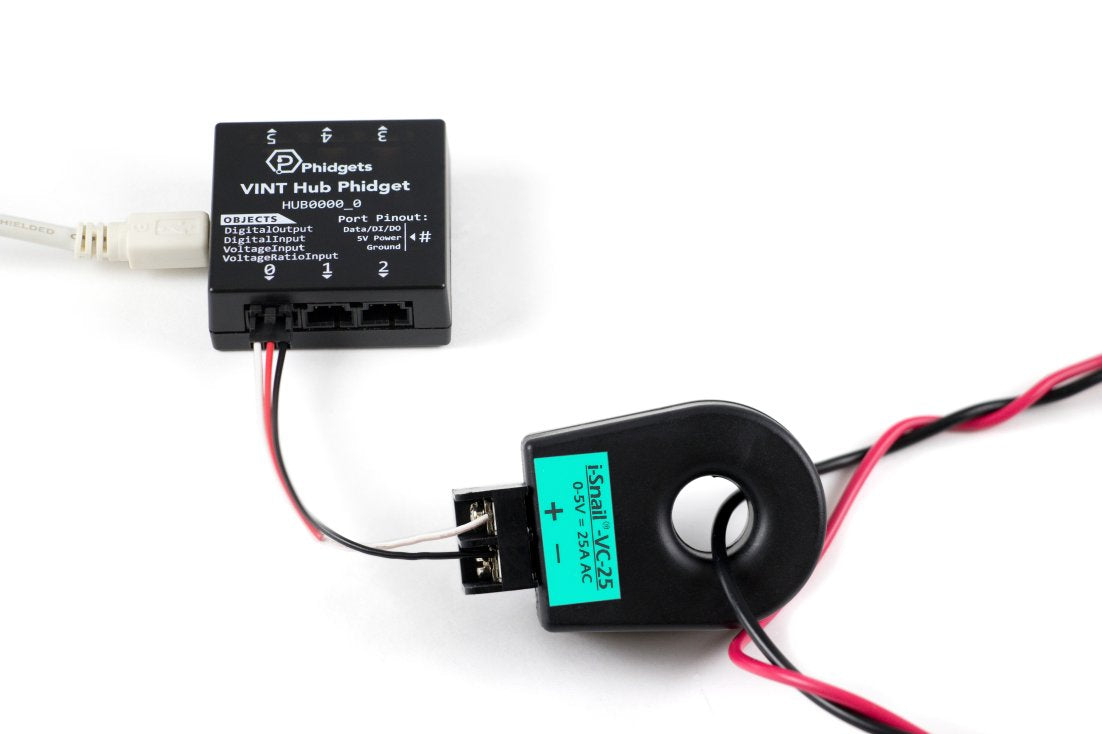

Generates a standard analog voltage signal. Easily read using any Phidget Voltage Input interface or VINT Hub analog port via the Phidget22 API.
- API Object Class: VoltageInput
-
Conversion Formula:
AC_Amps = Output_Voltage * 5 - OS Support: Windows, macOS, Linux, Raspberry Pi
Download technical documentation and drawing files:
Download Product Sheet & Mechanical Drawing, PDF
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
