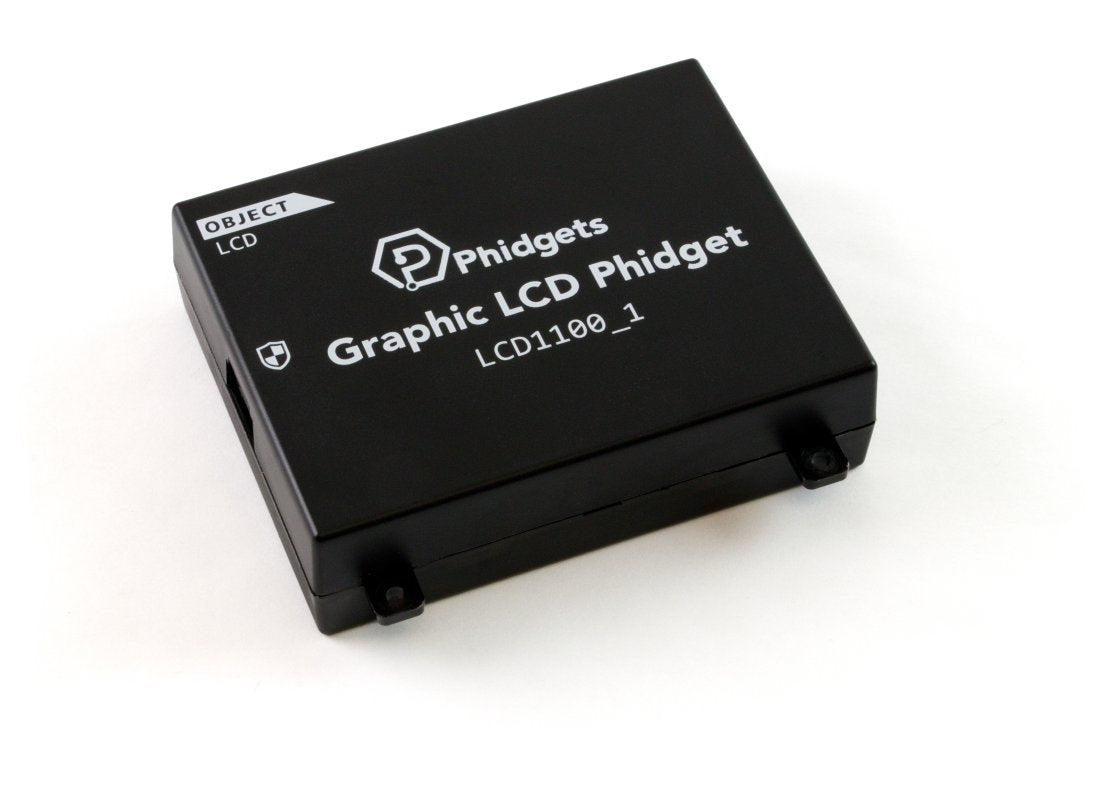

Graphic LCD Screen 128x64px (LCD1100_1)

Graphic LCD Screen 128x64px (LCD1100_1)

LCD1100_1

209.00 ₪
249.00 ₪ 209.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

Write text and draw pictures to this 128x64px graphic LCD display that connects to a VINT port.

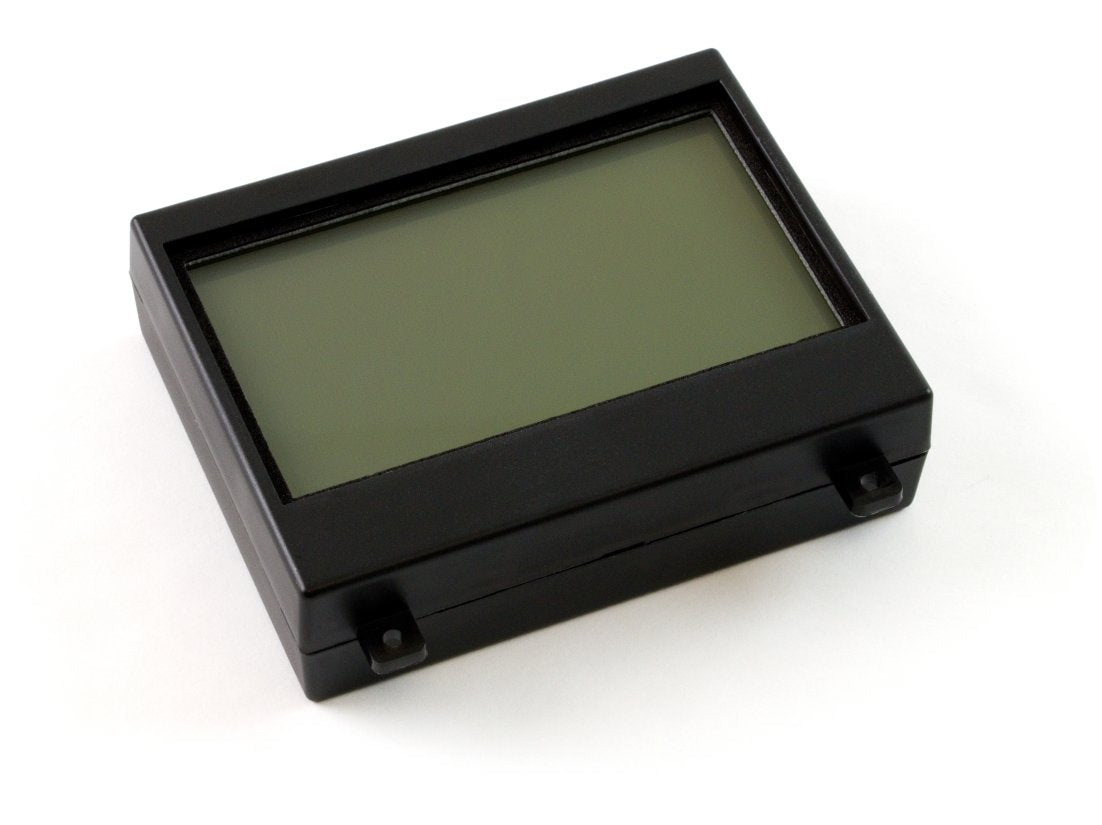

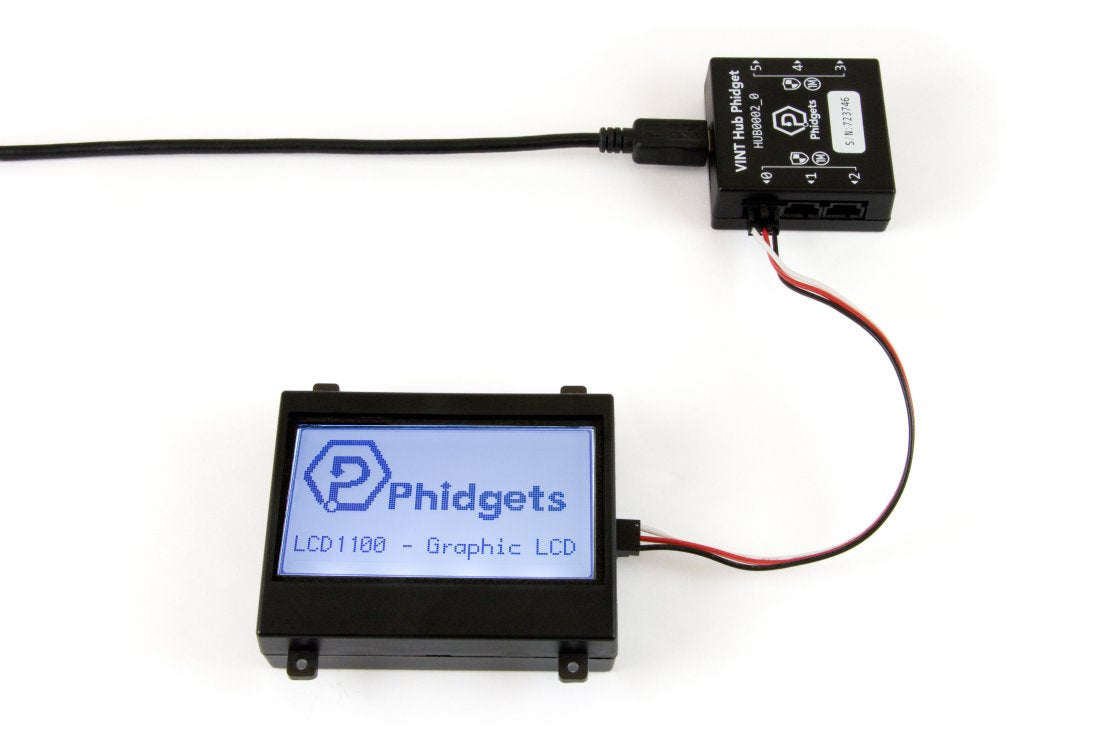

The Graphic LCD Phidget allows you to display simple images and text. This Phidget connects to your computer through a VINT Hub.

Features

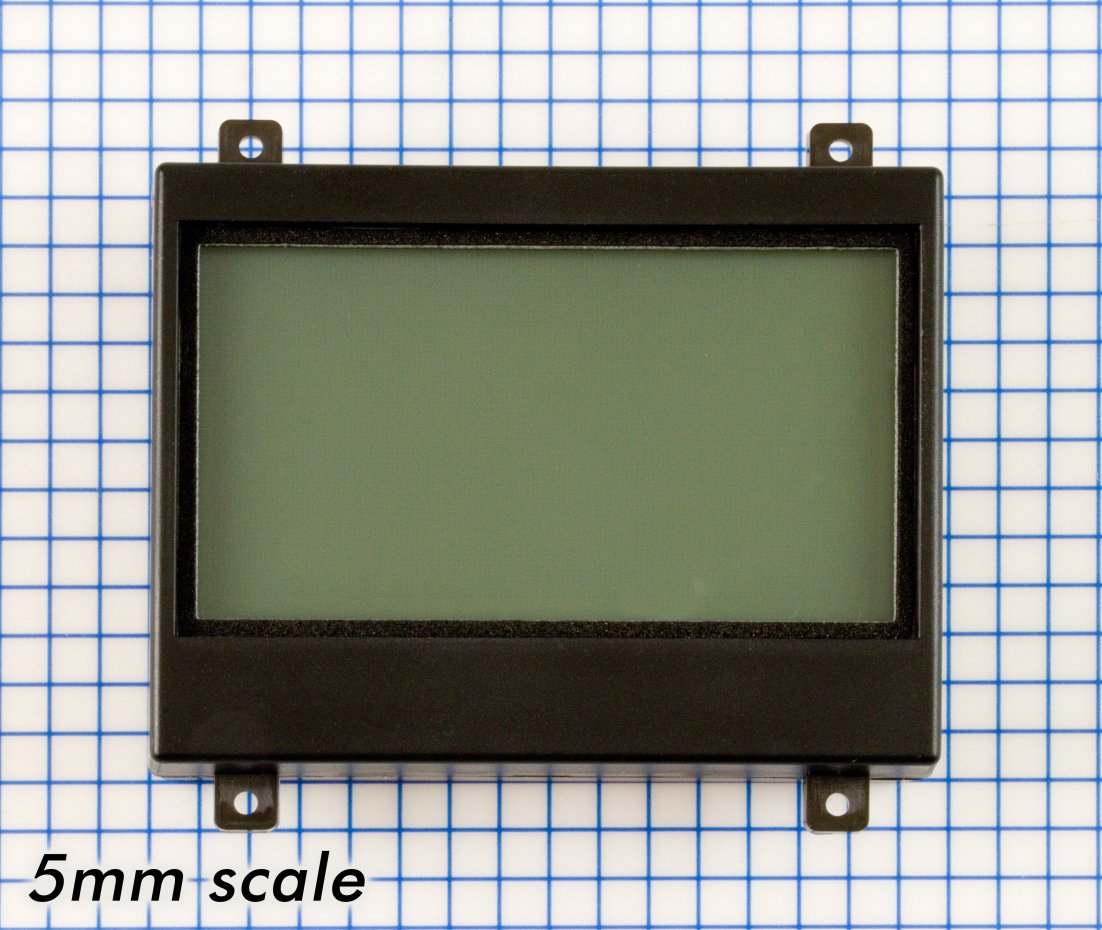

  • The screen is 128 pixels wide and 64 pixels tall, and each pixel is 0.45 mm
  • Backlight brightness and pixel contrast can both be controlled from software
  • Draw individual pixels, straight lines or rectangles
  • Write text to the screen in three different fonts, or design your own bitmap font
  • Save up to 3 frames so you can easily copy regions to the screen

Note: The LCD1100_1 has different backlight brightness characteristics, so the screen may look different from the previous revision.

Product Specifications

Board Properties

  • Controlled By: VINT

Controller Properties

  • Motor Type: DC Motor
  • Number of Motor Ports: 2
  • Acceleration Min: 0.1 % Duty Cycle/s
  • Acceleration Max: 100 % Duty Cycle/s
  • PWM Frequency: 25 kHz
  • Sampling Interval Min: 100 ms/sample
  • Sampling Interval Max: 60 s/sample
  • Acceleration Resolution: 0.1 Duty Cycle/s
  • Velocity Resolution: 0.001 Duty Cycle
  • Current Limit Resolution: 5.6 mA
  • Acceleration Time Min: 20 ms
  • Acceleration Time Max: 20 s

Electrical Properties

  • Continuous Motor Current Max (per motor): 4 A
  • Supply Voltage Min: 8 V DC
  • Supply Voltage Max: 30 V DC
  • Current Consumption (Unconfigured, VINT Port): 500 μA
  • Current Consumption Max (VINT Port): 750 μA

Physical Properties

  • Recommended Wire Size: 16 – 26 AWG
  • Operating Temperature Min: -40 °C
  • Operating Temperature Max: 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product



View full details
