Phidgets

Flexible LED Strip Blue (5m) (3615_0)

Flexible LED Strip Blue (5m) (3615_0)

3615_0

59.00 ₪
79.00 ₪ 59.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

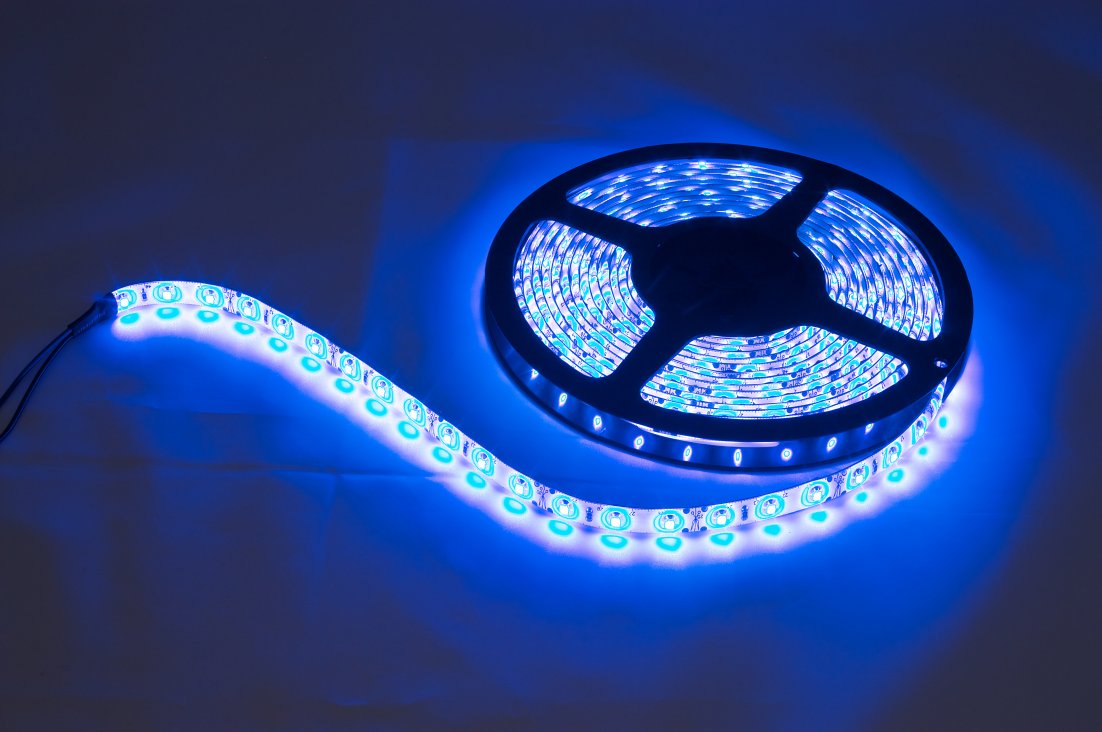

    The 3615 is a 5 meter long, 8 mm wide, flexible LED strip with adhesive backing which can be cut in multiples of 3-LED sections. The strip contains 300 blue LEDs with a light beam of 120°.

    The strip requires between 9 to 12 Volts DC and consumes 1.5A when running at 12V and 361mA when running at 9V.

    Caution: Running the strip at more than 12V can damage the LEDs.

    Features

    • Emits blue (470nm) light
    • Ideal for decorative use

    Board

    • Controlled By: USB (Mini-USB)
    • API Object Name: DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput
    • USB Voltage Range: 4.6 – 5.5 V DC
    • Current Consumption: 13 mA – 500 mA
    • Available External Current: 487 mA
    • Recommended Wire Size: 16 – 26 AWG
    • USB Speed: Full Speed
    • Operating Temperature: 0 °C to 70 °C

    Voltage Inputs

    • Number: 8
    • Resolution: 10 bit
    • Input Impedance: 900 kΩ
    • Voltage Range: 0 – 5 V DC
    • 5V Reference Error Max: 0.5 %
    • Update Rate: 1 – 1000 samples/s (4 channels), 1 – 500 samples/s (8 channels), 62.5 samples/s (WebService)

    Digital Inputs

    • Number: 8
    • Pull-up Resistance: 15 kΩ
    • Low Voltage Max (True): 900 mV DC
    • High Voltage Min (False): 4.2 V DC
    • Low Voltage Trigger Length Min: 4 ms
    • High Voltage Trigger Length Min: 15 ms
    • Voltage Max: ± 15 V DC
    • Update Rate: 125 samples/s

    Digital Outputs

    • Number: 8
    • Series Resistance: 300 Ω
    • Output Current Max: 16 mA
    • Voltage Range: 0 – 5 V DC

    Download the full product sheet:

    PDF icon Download Product Sheet, PDF
    • Warranty: 12 months
    • Delivery time: up to 10 business days
    • Professional customer service, fast delivery, attractive pricing
    • Genuine Phidgets product
