PhidgetBridge 4-Input

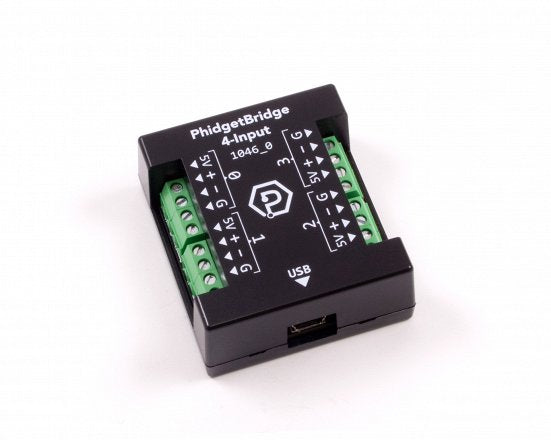

This board is needed to measure the output from a load cell. You can connect up to four load cells or strain gauges.

Note: The 1046_0B is identical to the 1046_0, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include.

The PhidgetBridge lets you connect up to 4 un-amplified Wheatstone bridges, such as:

  • Strain gauges
  • Compression load cells
  • Pressure sensors/Barometers
  • Piezoresistive accelerometers
  • Magnetoresistive sensors (Compasses)

The data rate and gain values can be configured in software.

Product Specifications

Board

  • Controlled By USB (Mini-USB)
  • API Object Name Bridge
  • Number of Bridge Inputs 4
  • Bridge Data Rate Min 8 ms
  • Bridge Data Rate Max 1000 ms
  • Bridge Input Current Max В± 3 nA
  • Differential Voltage Resolution 24 bit

Electrical Properties

  • USB Voltage Min 4.5 V DC
  • USB Voltage Max 5.3 V DC
  • USB Speed Full Speed
  • Current Consumption Min 35 mA
  • Current Consumption Max 500 mA
  • Available External Current 465 mA
  • Input Voltage Limit Min Ground + 0.25V DC
  • Input Voltage Limit Max 5V Supply – 0.25V DC

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min 0 В°C
  • Operating Temperature Max 70 В°C

*The minimum data rate is 8ms though the board has a maximum sample rate of 122 samples a second (slightly less than the 125 an 8ms rate would have you believe).

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
