Dual SSR Relay Board

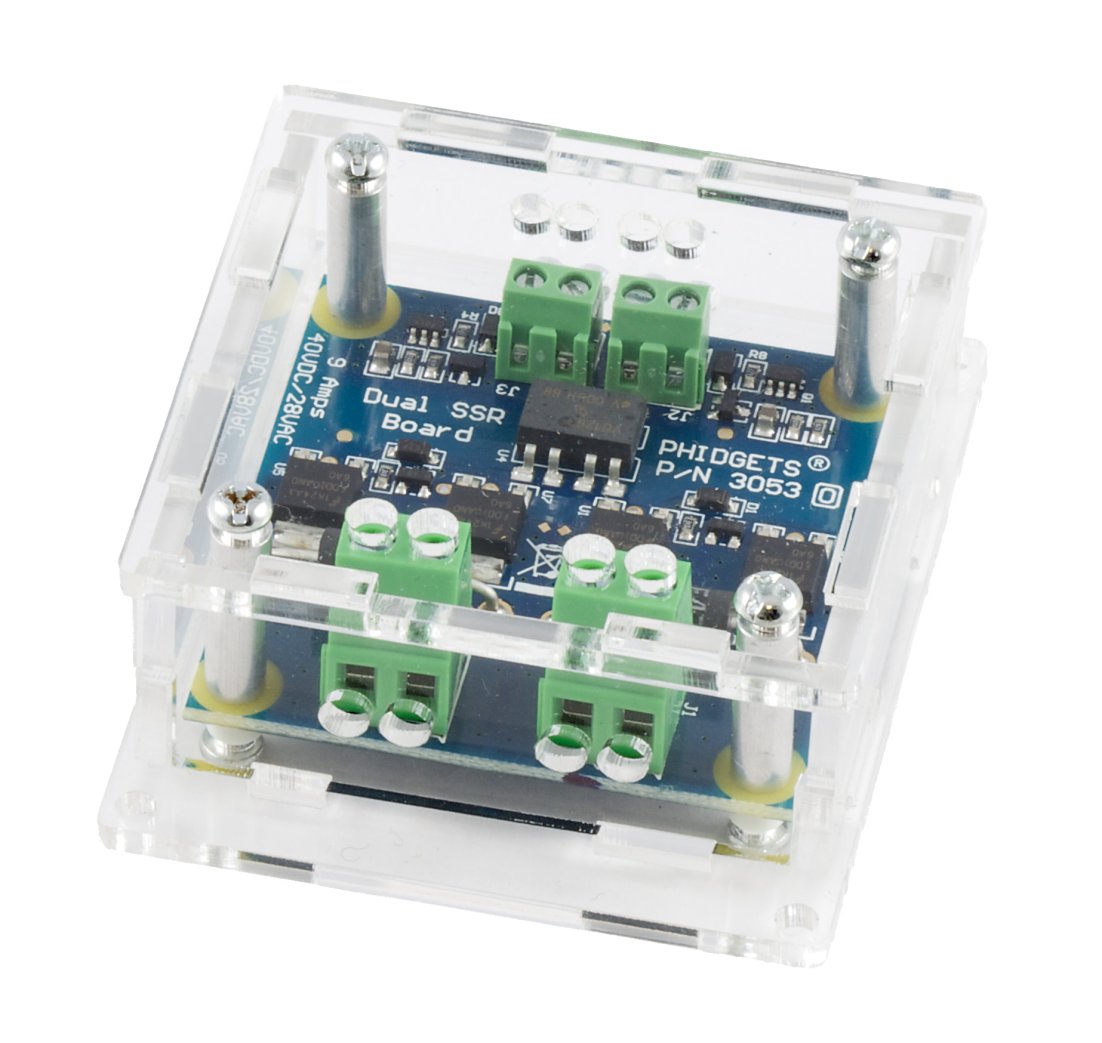

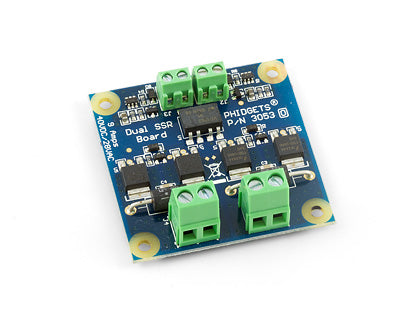

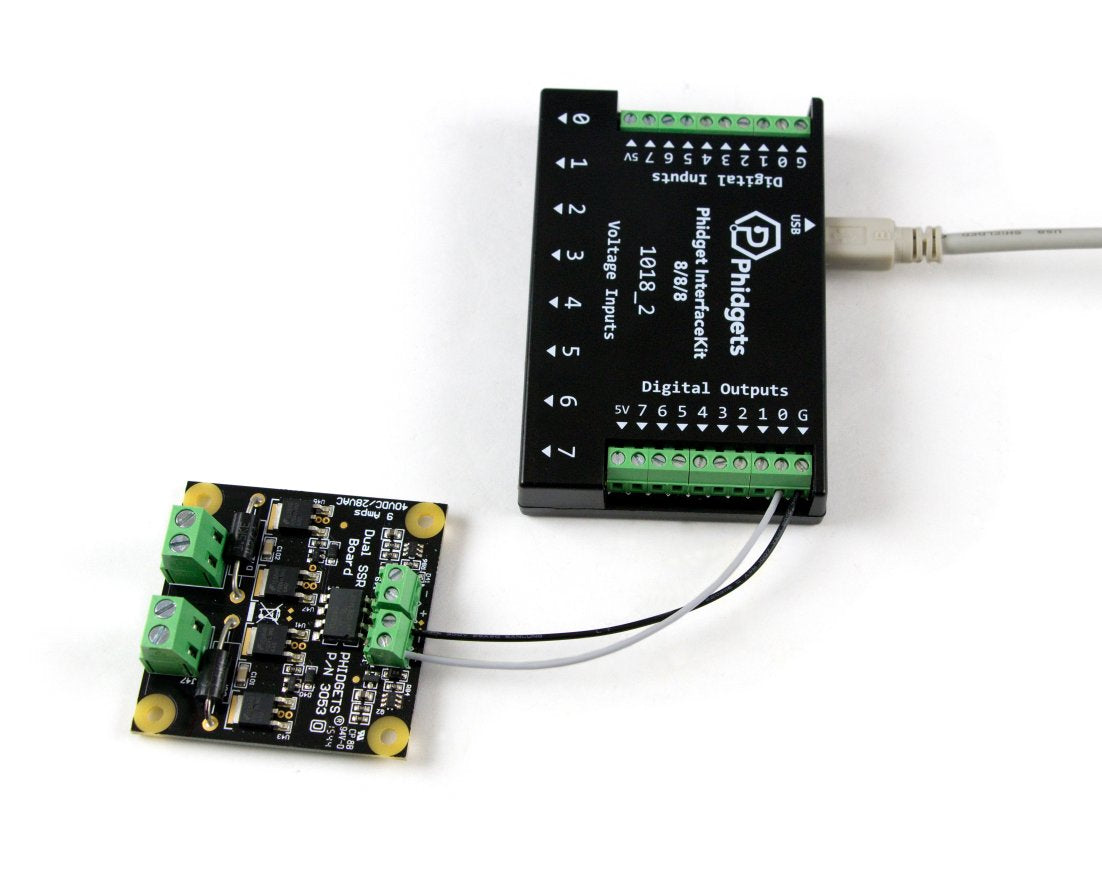

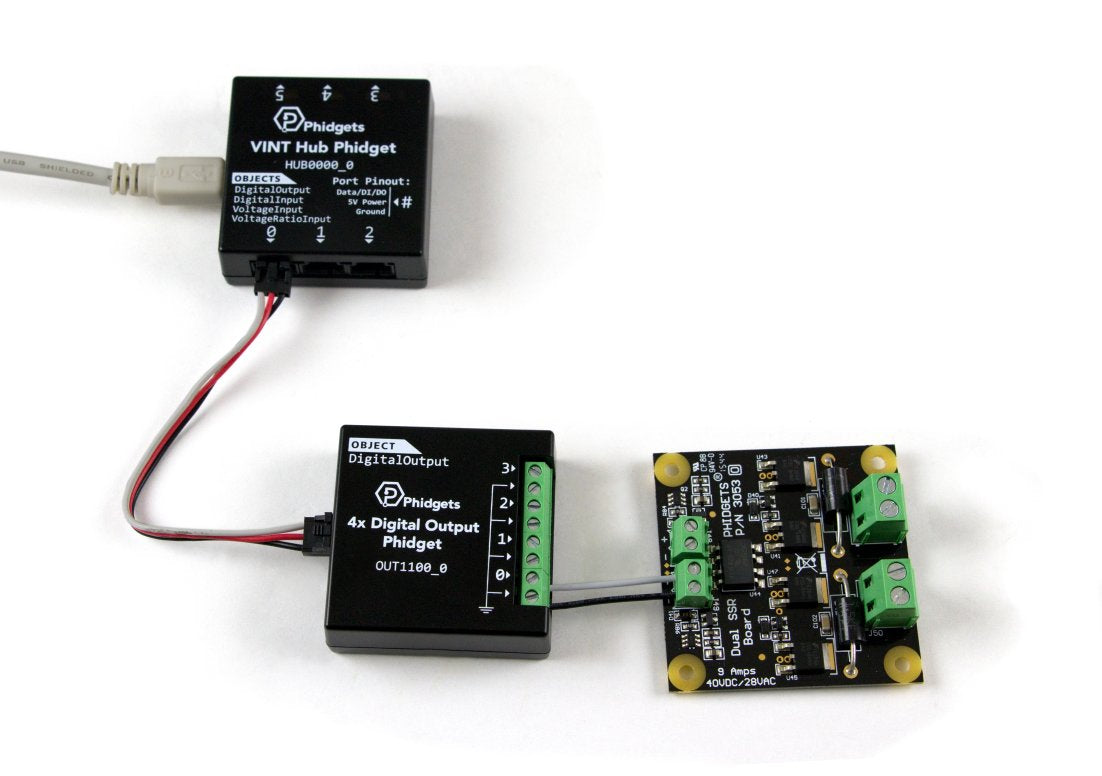

Switch 2 SSRs rated for 28VAC/9amp or 40VDC/9amp using digital outputs.

Solid State Relays, or SSRs, are devices designed to operate like standard relays but without mechanical motion.

The SSR Board is safe to use with sensitive control devices like microprocessors, and will not damage a Phidget device or your PC. Optoisolation between the control inputs and outputs of the SSR in the form of a GaAs LED paired with a set of optically-controlled MOSFETs provides protection from output to input. An on-board 47V bidirectional transorb across the relay output protects the board from static electricity and surges from inductive loads.

Product Specifications

Electrical Properties

  • Relay Output Type MOSFET
  • Isolation Method Photoelectric
  • Dielectric Strength 5.3 kV AC
  • Control Voltage Min 3 V DC
  • Control Voltage Max 30 V DC
  • Control Current 10 mA
  • Load Voltage Max (DC) 40 V DC
  • Load Voltage Max (AC) 28 V AC
  • Load Current Max (AC) (per channel) 9 A
  • Load Current Max (DC) (per channel) 9 A
  • Turn-on Time Max 1.9 ms
  • Turn-off Time Max 0.16 ms
  • Contact Resistance Max 50 mО©
  • Switching Speed Max 300 cps

Physical Properties

  • Recommended Wire Size (Control) 16 – 26 AWG
  • Recommended Wire Size (Load) 12 – 24 AWG
  • Operating Temperature Min -40 В°C
  • Operating Temperature Max 100 В°C

Download the full product sheet:

PDF icon Download Product Sheet, PDF
