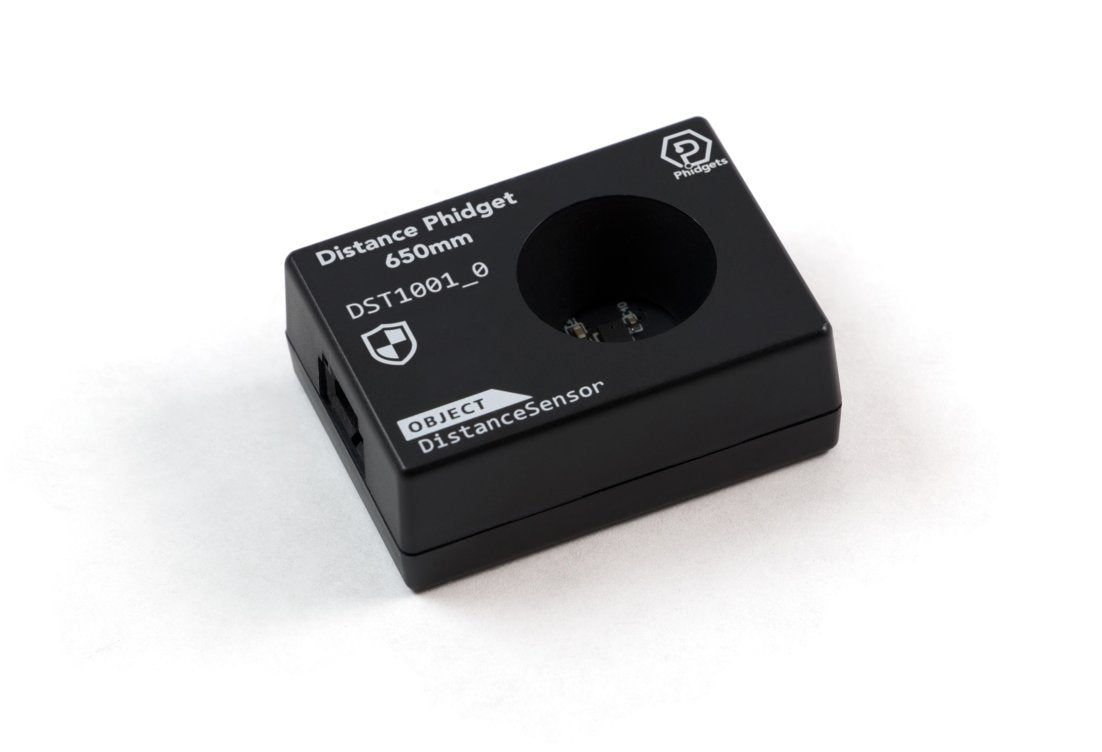

Distance Phidget 650mm (DST1001_0)
Distance Phidget 650mm (DST1001_0)
SKU:DST1001_0
Regular price
139.00 ₪
Regular price
159.00 ₪
Sale price
139.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The DST1001 accurately measures distances between 20mm and ~650 mm. Use this Phidget to measure short distances or detecting objects passing by. This Phidget connects to your computer through a VINT Hub.
Features
- Measure the distance of objects up between 20mm and 650mm from the sensor
- Distance is measured using reflected infrared light and a time-of-flight calculation
- Retrieve data as often as every 30 milliseconds
Product Specifications
Sensor Properties
| Sensor Type | Infrared (Time-of-Flight) |
|---|---|
| Controlled By | VINT |
| Measurement Distance Min | 4 mm |
| Measurement Distance Max | * 170 mm |
| Measurement Distance Resolution | 1 mm |
| Measurement Distance Noise | 3 mm |
Distance Sensor
| Sampling Interval Max | 60 s/sample |
|---|---|
| Sampling Interval Min | 10 ms/sample |
Electrical Properties
| Current Consumption Max | 4 mA |
|---|---|
| Current Consumption Min | 20 μA |
Physical Properties
| Operating Temperature Min | -40 °C |
|---|---|
| Operating Temperature Max | 85 °C |
* – Maximum distance depends on the reflectivity of the surface of the object. Typical results are around 170mm, but could be as low as 100mm for some surfaces. The “200mm” listed on the enclosure is incorrect.
Download the full product sheet:
Download Product Sheet, PDF
Warranty & Delivery
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
