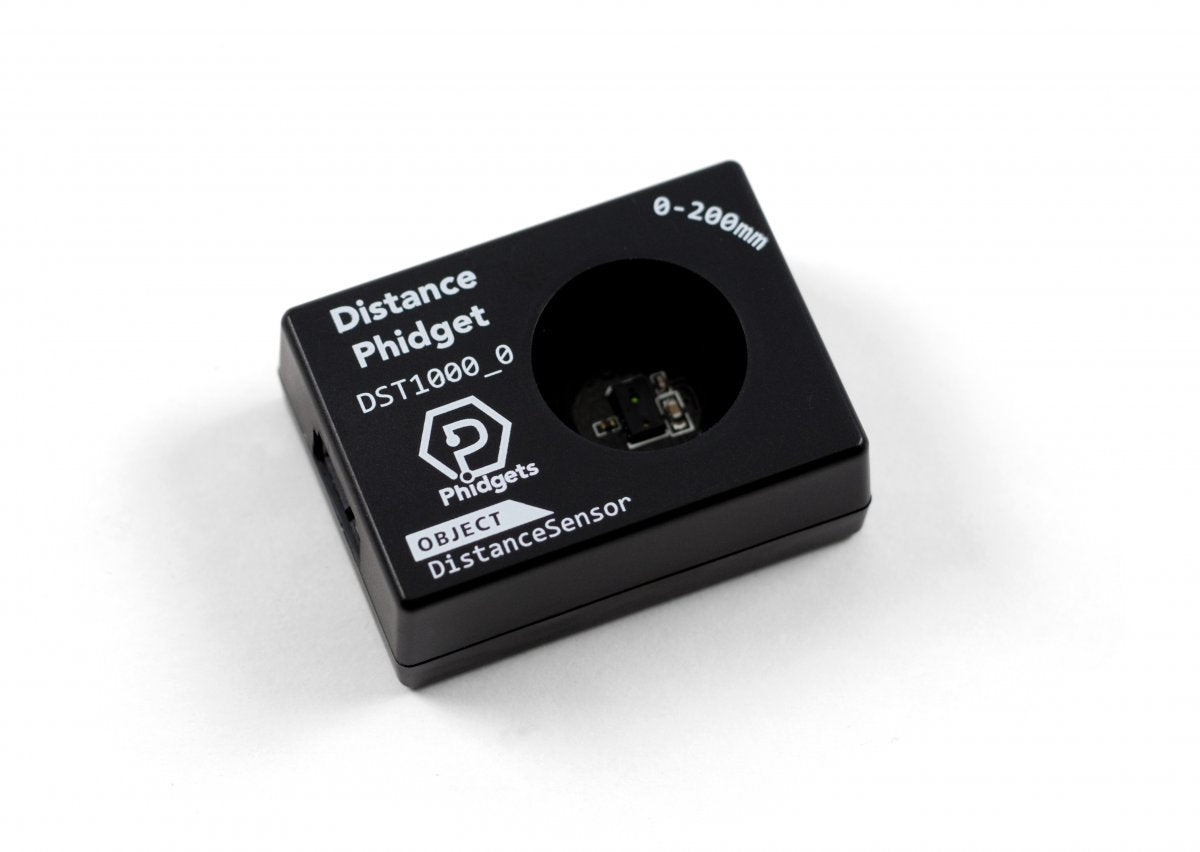

Distance Phidget
Distance Phidget
SKU:DST1000_0
Couldn't load pickup availability
Measure distances up to 170mm with this infrared time-of-flight sensor. Connects to a VINT port.
Do you need a sensor that can measure short distances or detect the motion of objects passing by? This Phidget uses infrared light and a time-of-flight calculation to determine how far away an object is. It can report the distance of the object it’s pointed at as often as every 10 milliseconds, and will throw a saturation event when the distance exceeds the sensor’s maximum range. Since infrared light is what it uses for the measurement, highly reflective objects will be easier to measure.
The DST1000 connects to a VINT hub. Have a look at the “Compatible Products” tab for a list of Phidgets with VINT ports.
Product Specifications
Sensor Properties
| Sensor Type | Infrared (Time-of-Flight) |
|---|---|
| Controlled By | VINT |
| Measurement Distance Min | 4 mm |
| Measurement Distance Max | * 170 mm |
| Measurement Distance Resolution | 1 mm |
| Measurement Distance Noise | 3 mm |
Distance Sensor
| Sampling Interval Max | 60 s/sample |
|---|---|
| Sampling Interval Min | 10 ms/sample |
Electrical Properties
| Current Consumption Max | 4 mA |
|---|---|
| Current Consumption Min | 20 μA |
Physical Properties
| Operating Temperature Min | -40 °C |
|---|---|
| Operating Temperature Max | 85 °C |
* – Maximum distance depends on the reflectivity of the surface of the object. Typical results are around 170mm, but could be as low as 100mm for some surfaces. The “200mm” listed on the enclosure is incorrect.
Download the full product sheet:
Download Product Sheet, PDF
