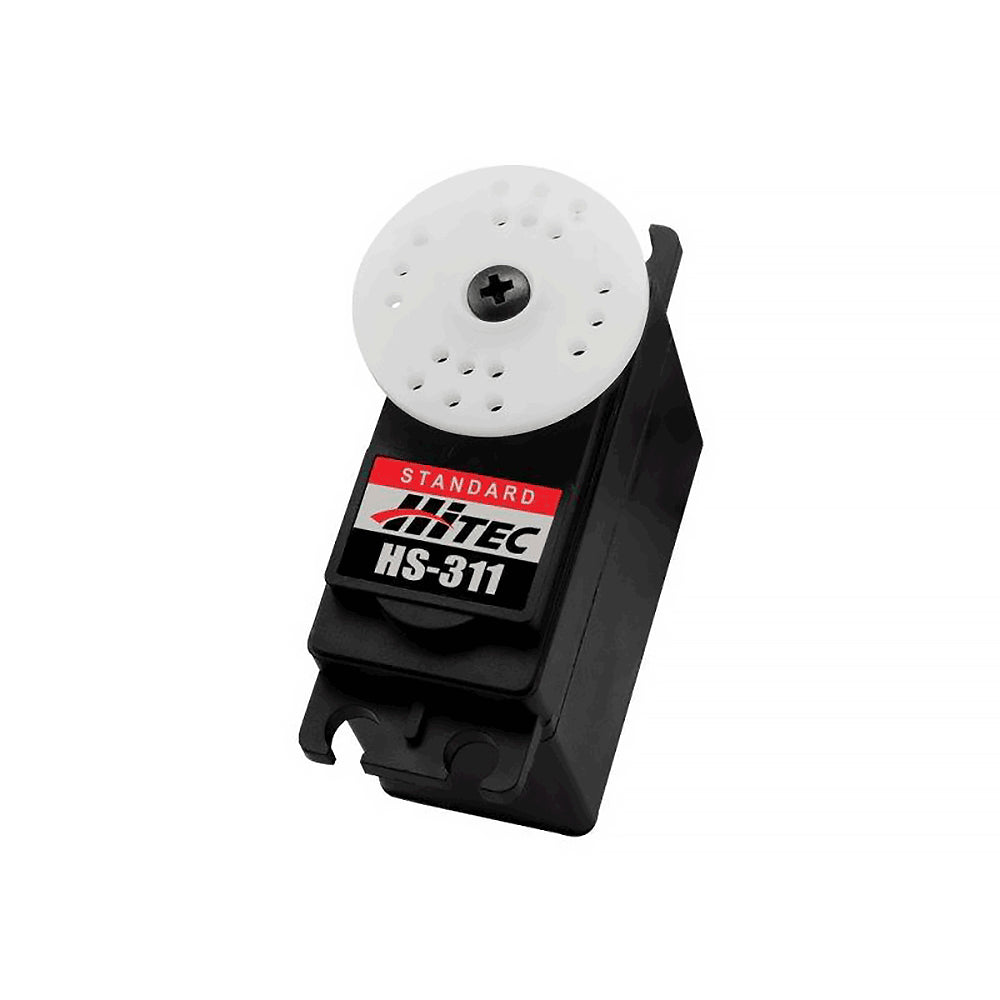

HS-311 Standard Voltage Resin Gear 24T Analog Sport Servo (31311)

HS-311 Standard Voltage Resin Gear 24T Analog Sport Servo (31311)

31311

69.00 ₪
99.00 ₪ 69.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

    The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.

    Features

    • Our Low Cost Standard Size Servo
    • Reliable Three-Pole Ferrite Motor
    • Durable Resin Gears
    • Popular Selling Servo

    HS-311 Servo Specifications

    Performance Specifications
    Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
    Speed (Second @ 60°) 0.19 ~ 0.15
    Maximum Torque Range oz. / in. 41.66 ~ 51.38
    Maximum Torque Range kg. / cm. 3.0 ~ 3.7
    Current Draw at Idle 7.7 mA
    No Load Operating Current Draw 180 mA
    Stall Current Draw 800 mA
    Dead Band Width 5 µs

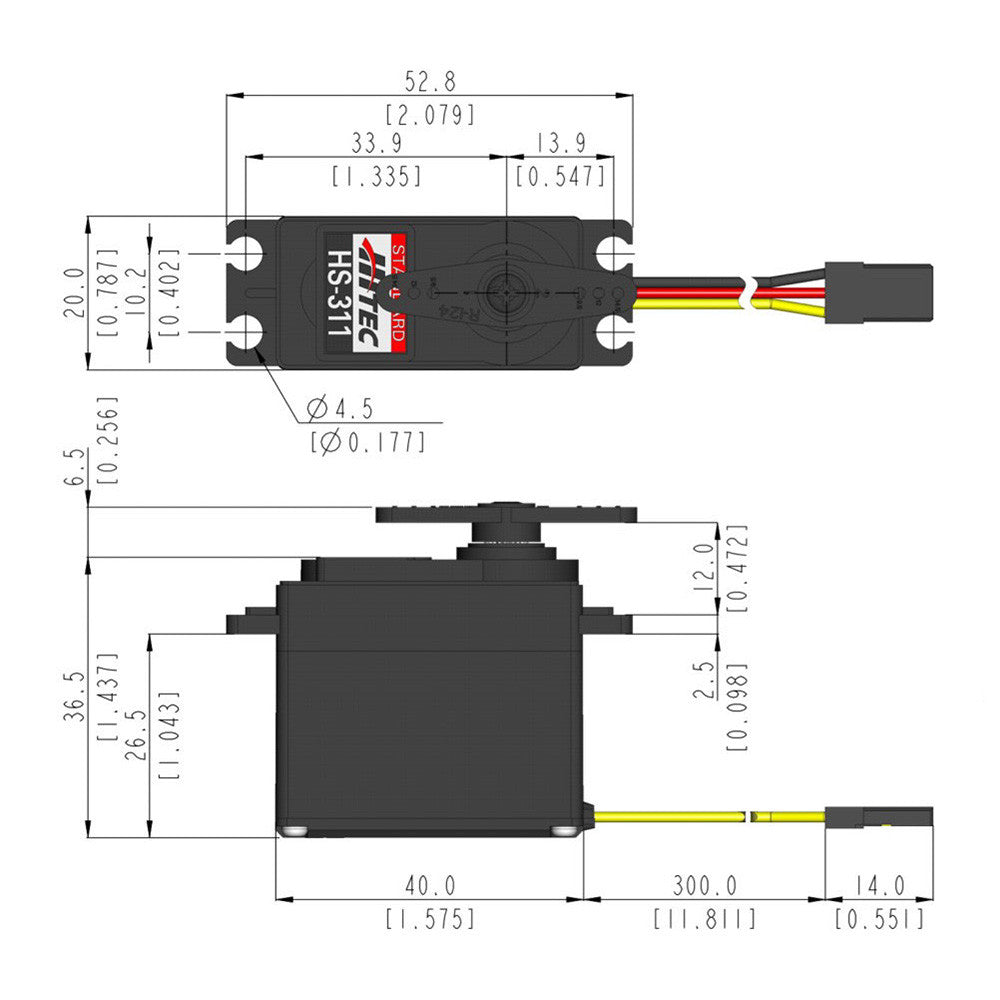

    Physical Specifications
    Dimensions (Inches) 1.57 x 0.78 x 1.43
    Dimensions (Metric) 40.0 x 20.0 x 36.5
    Weight (Ounces) 1.51
    Weight (Gram) 43.0
    Circuit Type HT7003 Analog SMT
    Motor Type 3 Pole Metal Brush Ferrite
    Gear Material Nylon
    Bearing Type None
    Output Shaft (type / Ømm) Standard 24
    Case Material Plastic
    Dust / Water Resistance N / A
    Connector Gauge (AWG) / Strand Count 25 / 40
    Radio Control Applications
    Parkflyer N / A
    Sport Plane 50 - 64 oz.
    Sailplane N / A
    3D Performance N / A
    Scale 50 - 64 oz.
    Electric Helicopter N / A
    Gas Helicopter N / A
    On Road 1/8th
    Monster Truck 1/8th
    Buggies 1/8th
    Truggies 1/8th
    Short Course / Truck 1/8th
    Crawlers 1/8th
    Sail Boat < 1 meter
    Power Boat 1/10th
