8x Voltage Input Phidget (DAQ1000_0)
8x Voltage Input Phidget (DAQ1000_0)
SKU:DAQ1000_0
Couldn't load pickup availability

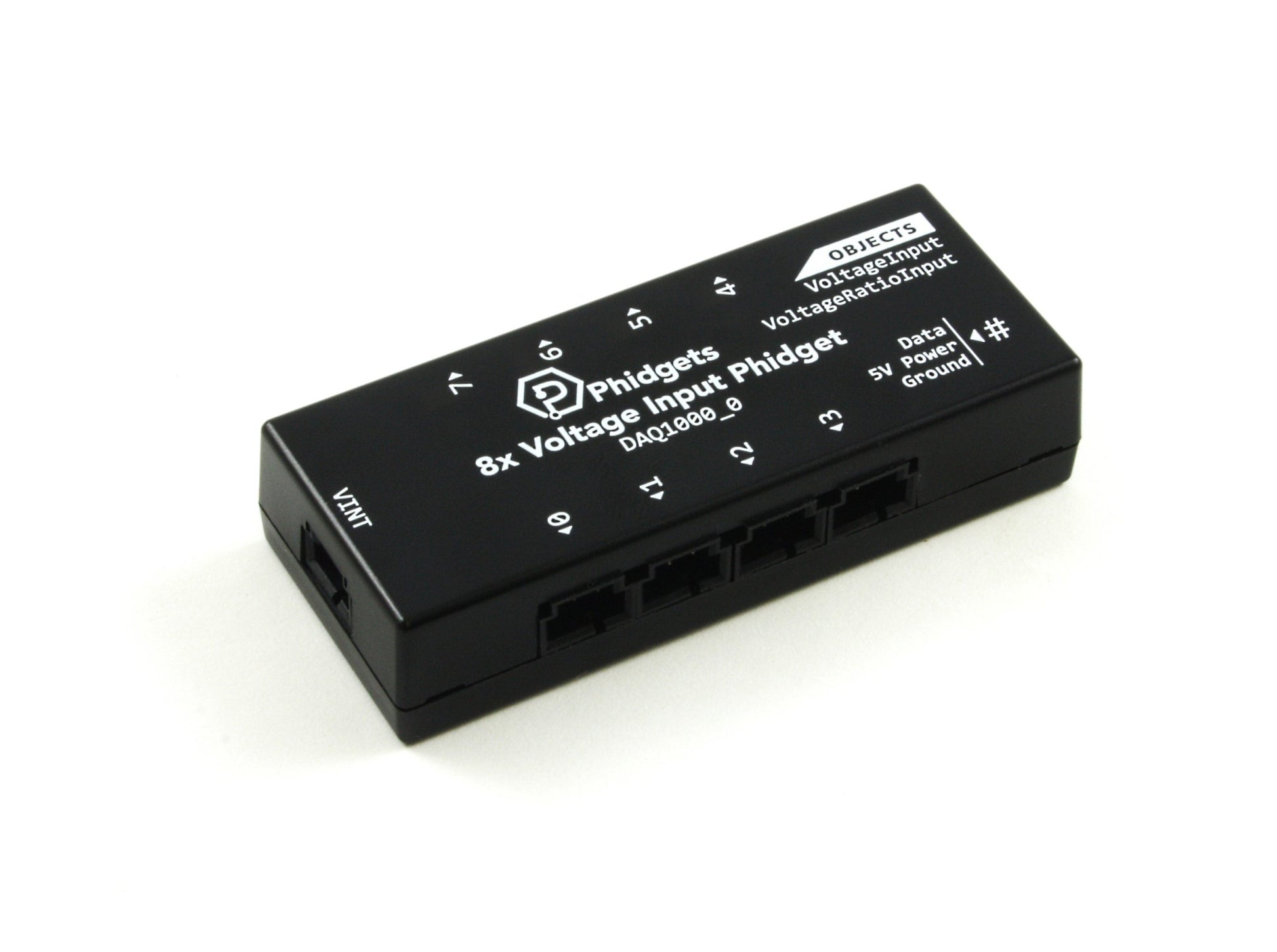

The 8x Voltage Input Phidget (DAQ1000_0) expands a single VINT Hub port into eight high-density 0–5V analog sensor inputs.

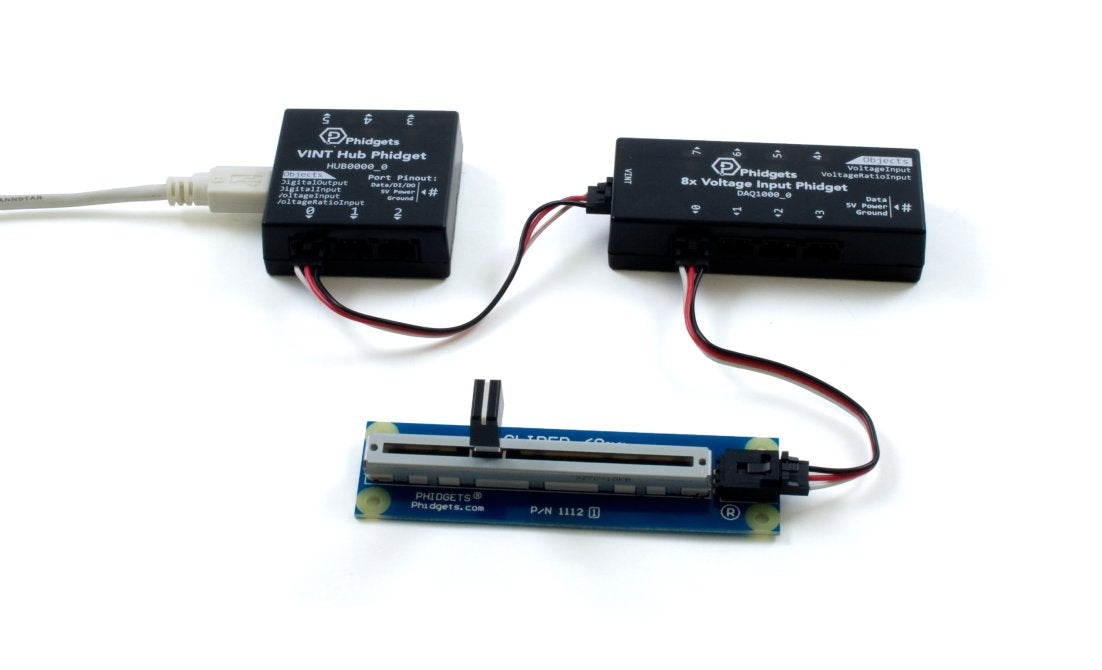

Designed for applications requiring multiple simultaneous sensor measurements, each input port independently supports both VoltageInput mode (for measuring absolute 0–5V signals) and VoltageRatioInput mode (for ratiometric sensors such as potentiometers and voltage dividers). The board distributes power directly from the connected VINT Hub to each attached sensor, simplifying field wiring.
Features:
- Provides 8 independent 0–5V DC analog input channels via a single VINT port
- Dual operating modes per channel: VoltageInput (0–5V) and VoltageRatioInput (0.0 to 1.0)
- Per-channel customizable data sampling rates up to 50 samples per second
- Distributes 5V DC power directly from the VINT Hub to connected sensors
- Automatic unit conversion supported via Phidget22 API and
SensorTypedefinitions - Ideal for dense multi-sensor data acquisition setups
Data Acquisition & Electrical Specifications
- Number of Inputs: 8 Analog Channels
- Voltage Input Range: 0 to 5 V DC
- Voltage Ratio Range: 0.0 to 1.0 (Ratiometric)
- Max Sampling Rate: Up to 50 samples/second per channel
- Interface: VINT Port
- Power Distribution: 5V DC supplied through VINT Hub
The package includes:
- 8x Voltage Input Phidget (DAQ1000_0)
Configured and controlled programmatically using the Phidget22 API over a connected VINT Hub.
- API Object Classes: VoltageInput, VoltageRatioInput
-
Automatic Conversion: Set
SensorTypeproperty to auto-convert readings into physical units - OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, LabVIEW, and more
Download technical documentation and drawing files:
Download Product Sheet & Mechanical Drawing, PDF
