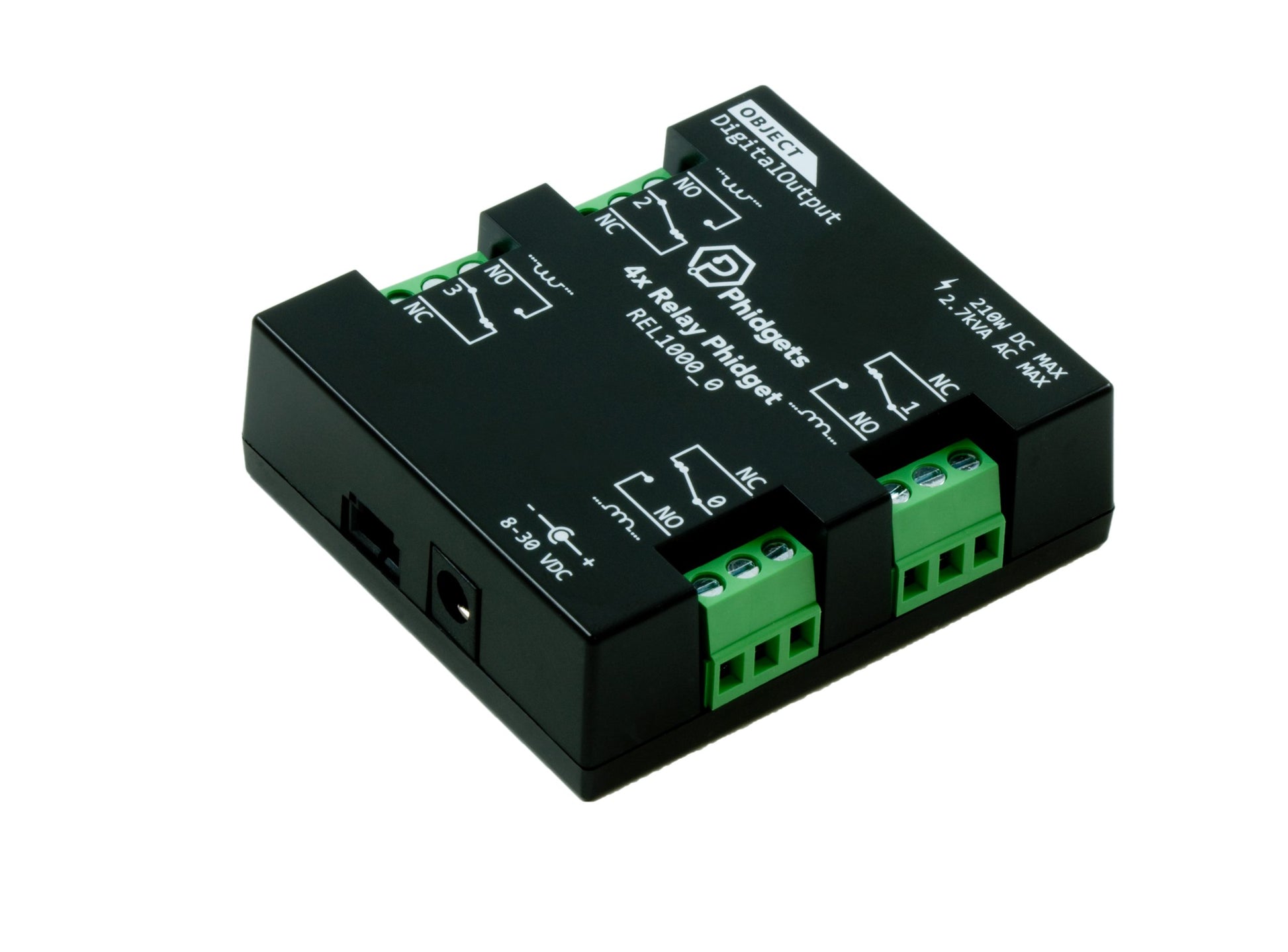

4x Relay Phidget

4x Relay Phidget

REL1000_0

230.00 ₪
230.00 ₪
Sale Sold out

Switch the power of up to four circuits at 210W of DC power or 1750 VA of AC power with this mechanical relay module.

Controlling the power circuits of as many as four separate devices is easy with this relay module. Each mechanical relay can control a separate circuit of up to 210W DC or 1750 VA AC. This module requires an external power supply, which is isolated from the VINT port to improve stability by preventing ground loops. The relays also isolate the load circuit from the control circuit, protecting your VINT Hub or computer from voltage spikes.

The REL1000 connects to a port on a VINT Hub.

Board Properties

  • Controlled By: VINT

Relay Properties

  • Number of Relays: 4
  • Switch Type: SPDT
  • Load Current Min: 100 mA
  • Turn-off Time Max: 5 ms
  • Turn-on Time Max: 8 ms
  • Contact Resistance Max: 50 mΩ
  • Dielectric Strength: 1.5 kV AC
  • Electromagnet Coil Resistance: 70 Ω
  • Switching Power Max (Real): 210 W
  • Switching Power Max (Apparent): 1.8 kVA

Electrical Properties

  • Load Voltage Max (DC): 30 V DC*
  • Load Current Max (DC): 7 A
  • Load Voltage Max (AC): 277 V AC
  • Load Current Max (AC): 12 A
  • Current Consumption Min (VINT Port): 500 μA
  • Power Consumption: 40 mW
  • Supply Voltage: 8 – 30 V DC

Physical Properties

  • Recommended Wire Size: 12 – 24 AWG
  • Operating Temperature: -40 °C to 70 °C

* Switching above 30V will reduce lifespan.

Please Note: Cannot be switched at maximum AC voltage and current simultaneously.

Software Objects

  • Channel Name: Power Relay
  • API: DigitalOutput
  • Channel: 0 – 3
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
PDF icon Download Product Sheet, PDF
View full details
