(±40V) Voltage Input Phidget

(±40V) Voltage Input Phidget

VCP1001_0

180.00 ₪
180.00 ₪
Sale Sold out

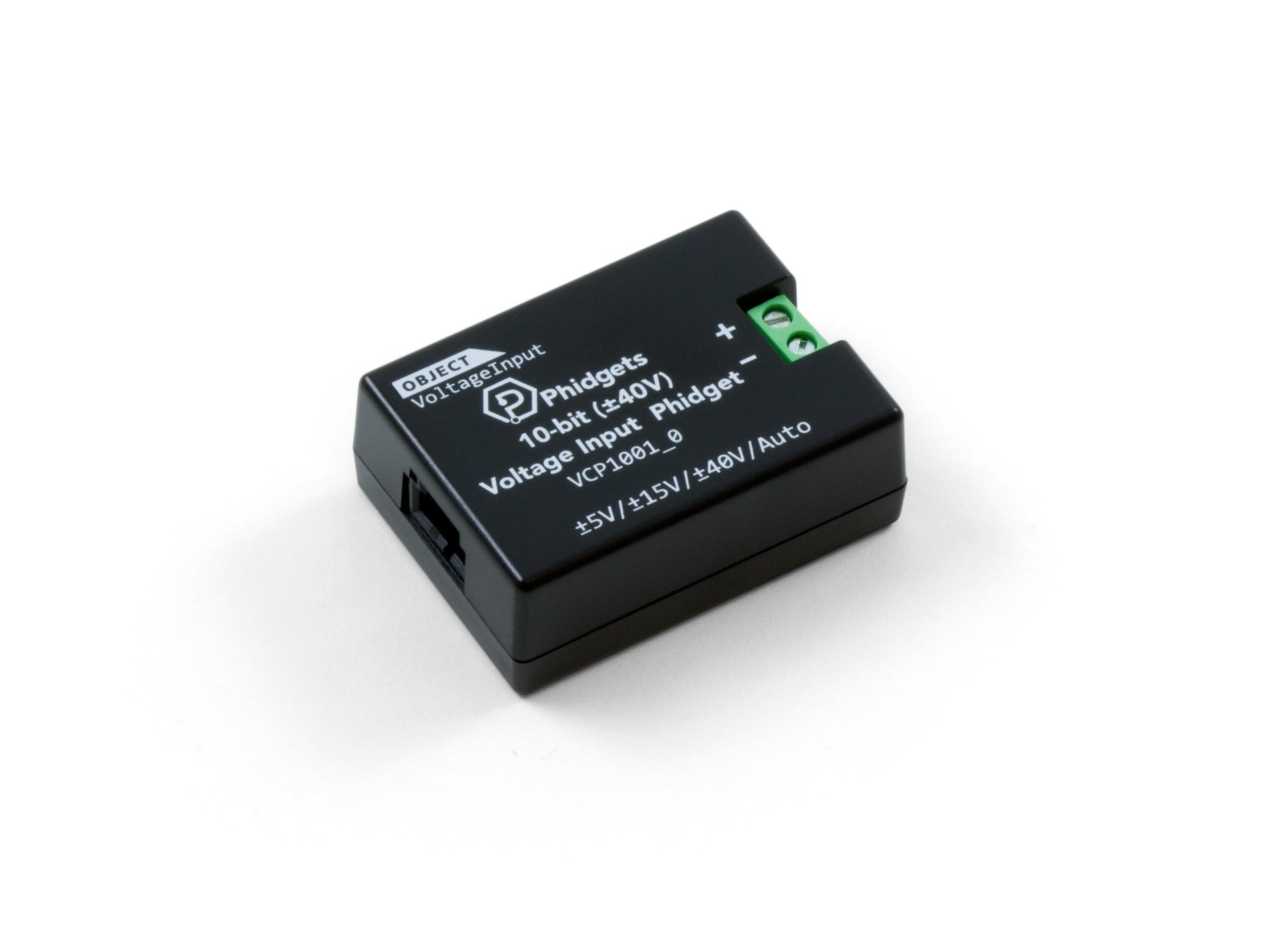

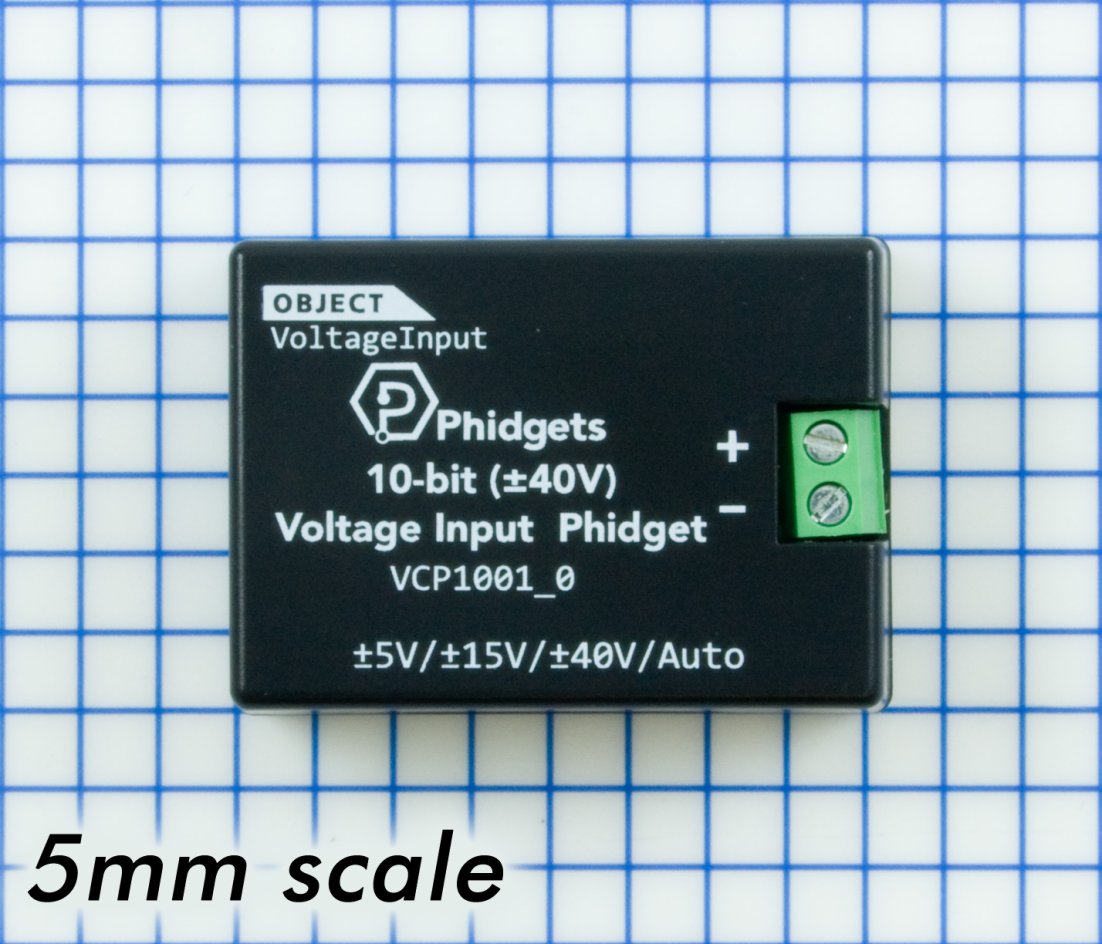

(±40V) Voltage Input Phidget

This Phidget measures voltage potentials of up to ±40V. It connects to a VINT port and is isolated for increased reliability.

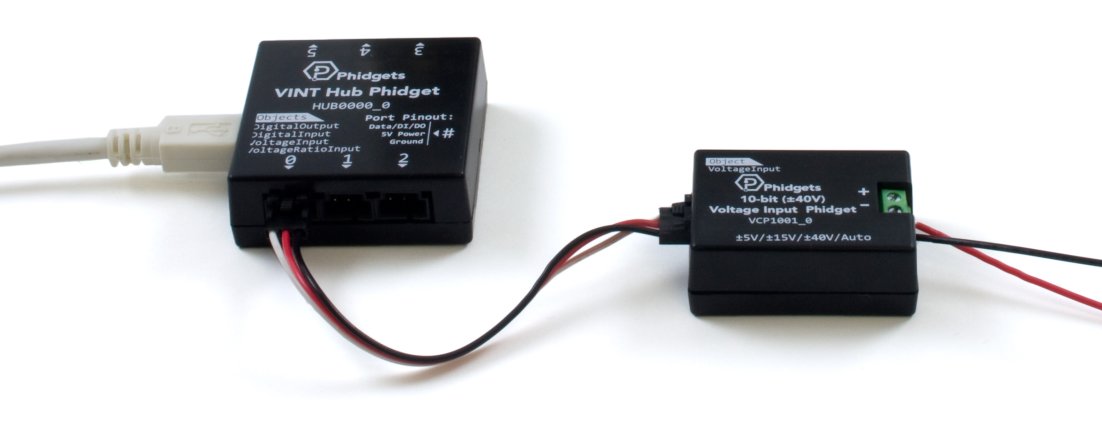

When a 0-5V voltage input isn’t enough, this Phidget can be used to measure voltages up to ±40V. You can select the voltage range (±5V, ±15V or ±40V) in software; a smaller range results in higher precision. This Phidget also has an automatic mode that continuously adjusts the range based on present voltage measurements, so you’ll always have the most accurate measurement possible. The VCP1001 connects to a port on a VINT Hub. See the “Comaptible Products” tab for a list of hubs.

Isolated for Stability

This Phidget is electrically isolated, so a power surge on the circuit you’re measuring will not damage your VINT Hub or your computer. Isolation also improves stability by eliminiating potential ground loops.

Product Specifications

Sensor Properties

  • Sensor Type: Voltage (DC)

Board Properties

  • Controlled By: VINT

Voltage Sensor

  • Withstand Voltage Max: ± 50 V DC
  • Number of Voltage Inputs: 1
  • Sensor Input Impedance: 1 MΩ
  • Voltage Difference Max: ± 40 V DC
  • Sampling Interval Min: 40 ms/sample
  • Sampling Interval Max: 60 s/sample

±5V Range

  • Voltage Resolution: 200 μV DC
  • Voltage Offset Max: 5 mV DC
  • Measurement Error Max: 0.2 %
  • Voltage Noise: 3 mV DC

±15V Range

  • Voltage Resolution: 500 μV DC
  • Voltage Offset Max: 15 mV DC
  • Measurement Error Max: 0.2 %
  • Voltage Noise: 10 mV DC

±40V Range

  • Voltage Resolution: 1.2 mV DC
  • Voltage Offset Max: 40 mV DC
  • Measurement Error Max: 0.2 %
  • Voltage Noise: 25 mV DC

Electrical Properties

  • Current Consumption Max: 11 mA

Physical Properties

  • Recommended Wire Size: 16 – 26 AWG
  • Operating Temperature Min: -40 °C
  • Operating Temperature Max: 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
